Blower Unit Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the dashboard. (See DASHBOARD REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.
    Fig 1: Removing Order Table
    G00992095Courtesy of MAZDA MOTORS CORP.

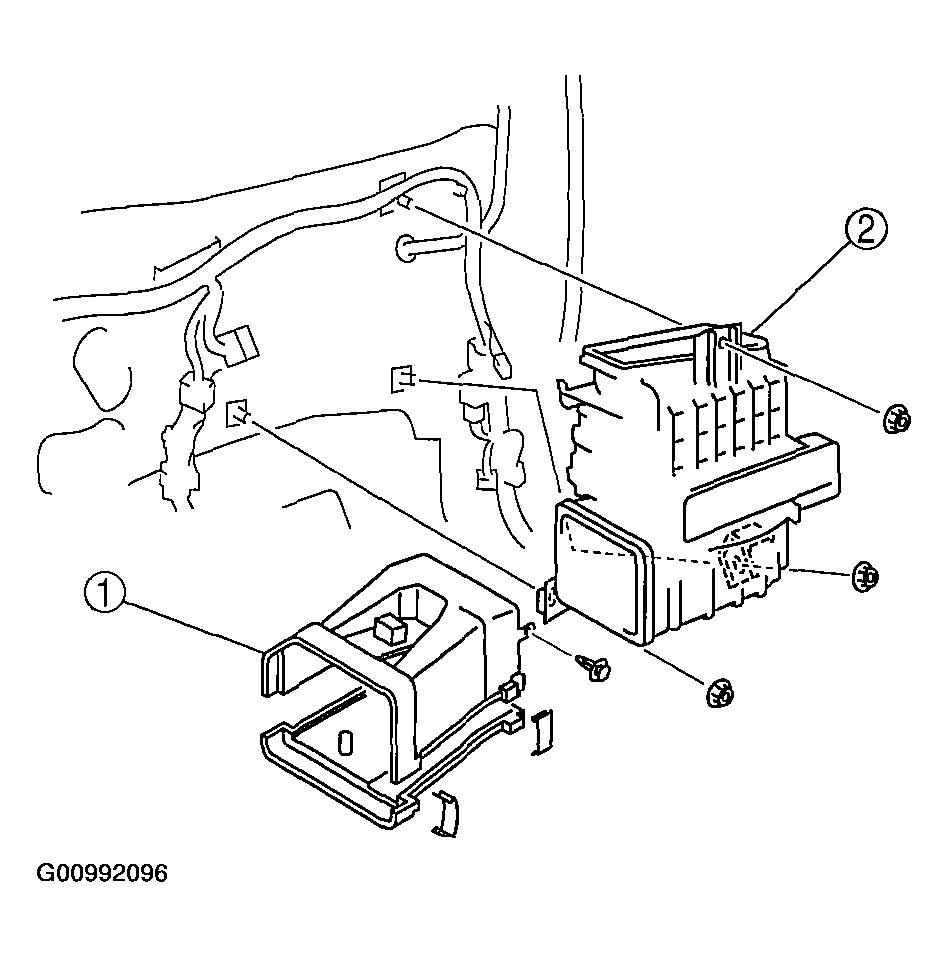

    Fig 2: Removing Airduct And Blower Unit
    G00992096Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
