Caster Adjustment

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Adjust the caster after adjusting the camber.

Loosen the installation nut of the adjusting cam bolt (front lower arm rear side).

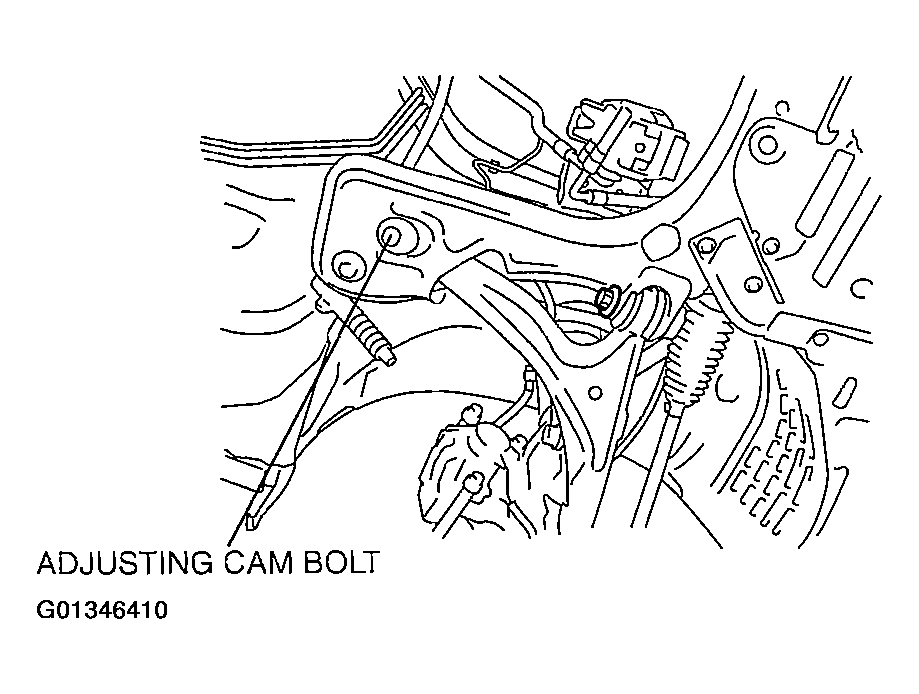

Fig 1: Locating Front Wheel Adjusting Cam Bolt
Courtesy of MAZDA MOTORS CORP.
Rotate the adjusting cam bolt in either direction to adjust the caster.
Standard Suspension

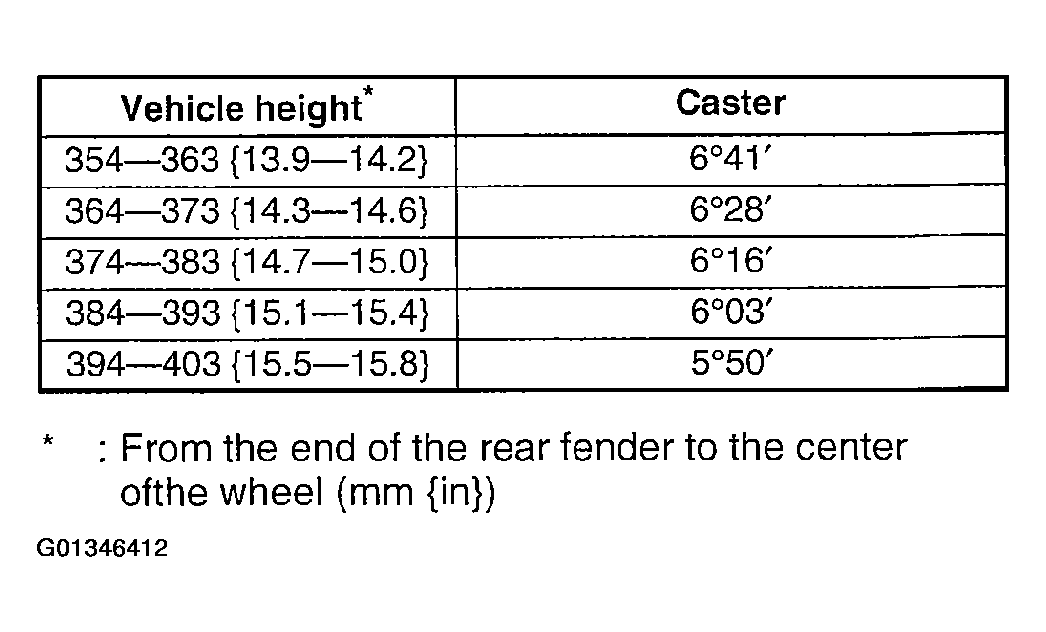

Fig 2: Front Wheel Standard Caster
Courtesy of MAZDA MOTORS CORP.

Sport Suspension

Fig 3: Sport Suspension Front Wheel Caster
Courtesy of MAZDA MOTORS CORP.

Fig 4: Cam Bolt Rotating Direction
Courtesy of MAZDA MOTORS CORP.

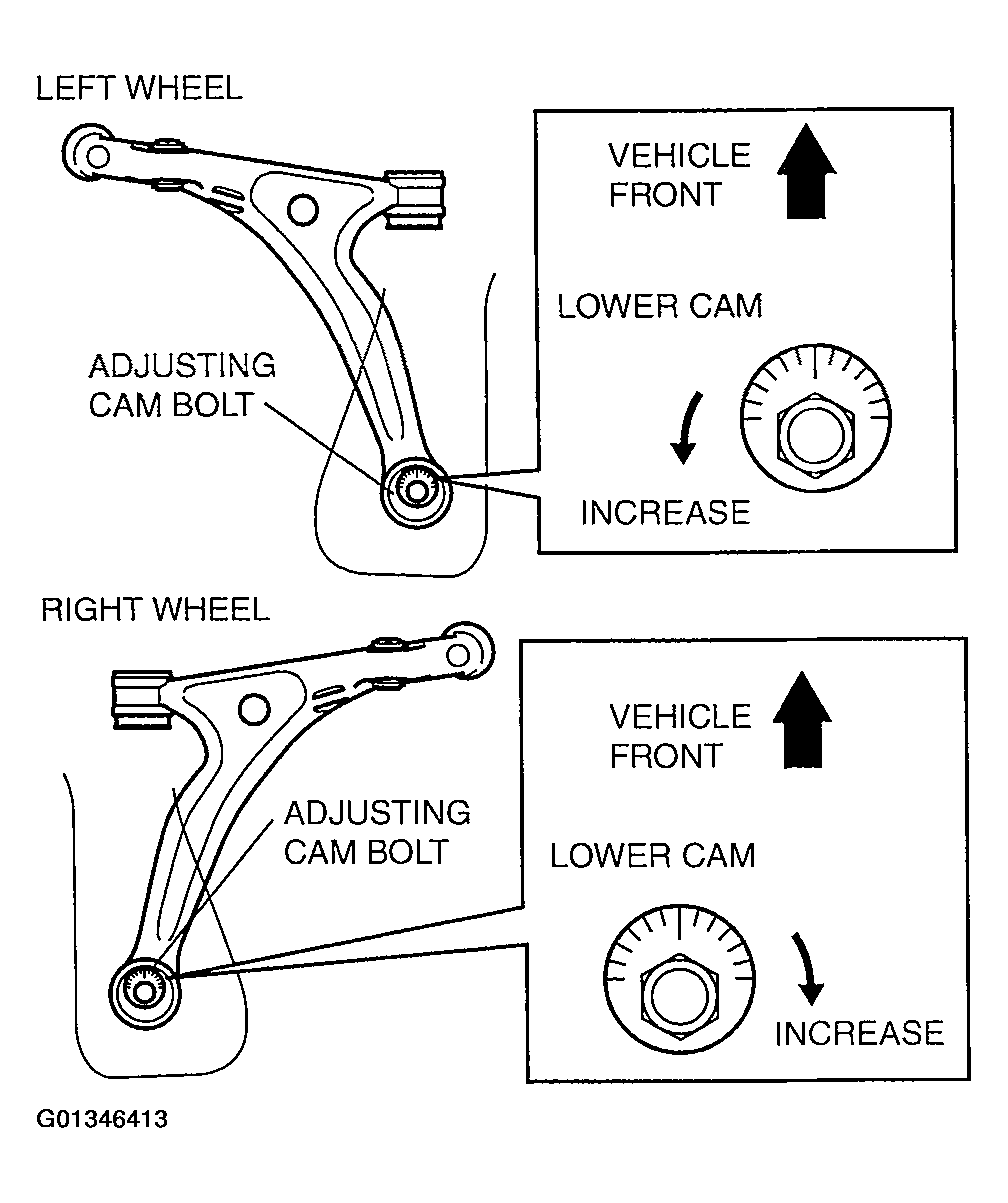

Fig 5: Identifying Left & Right Wheel Adjustment
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Refer to the following figure for the adjusting amount per one graduation.
Tighten the nut.
Tightening Torque

117.7-137.3 N.m {12.1-14.0 kgf.m, 86.9-101.2 ft.lb}
Adjust the camber and total toe-in.

Fig 6: Identifying Front Wheel Cam Bolt Adjusting Scale

Courtesy of MAZDA MOTORS CORP.
