Auto Light-Off Control Module Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove in the order indicated in the figure(s).

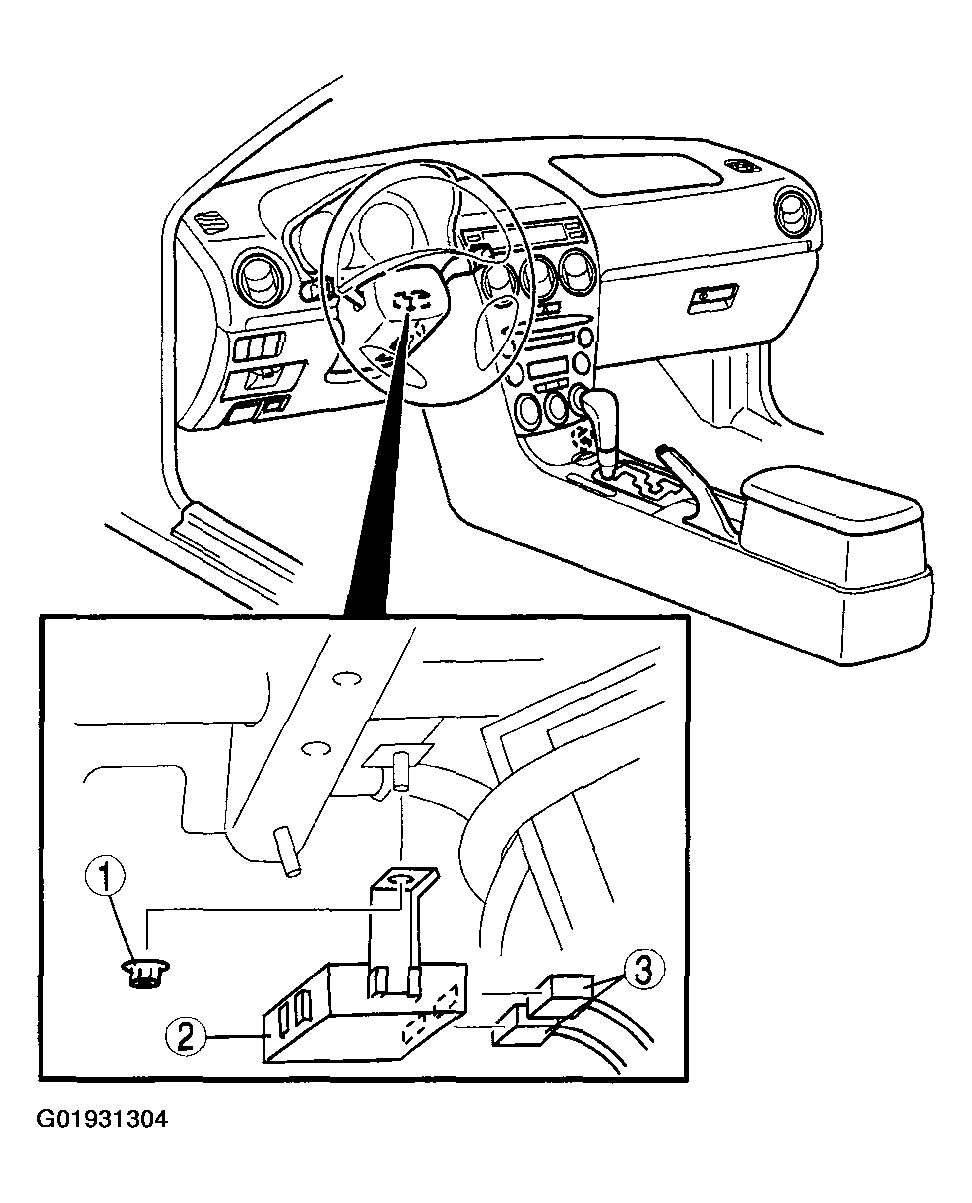

Fig 1: Removing Auto Light-Off Control Module
Courtesy of MAZDA MOTORS CORP.

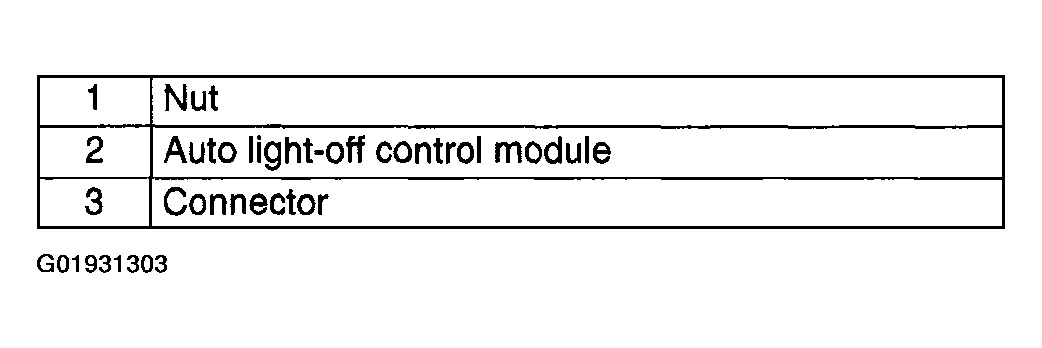

Fig 2: Auto Light-Off Control Module Removal Sequence
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
