Back-Up Light Switch Removal/Installation: Notes

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the figure(s).

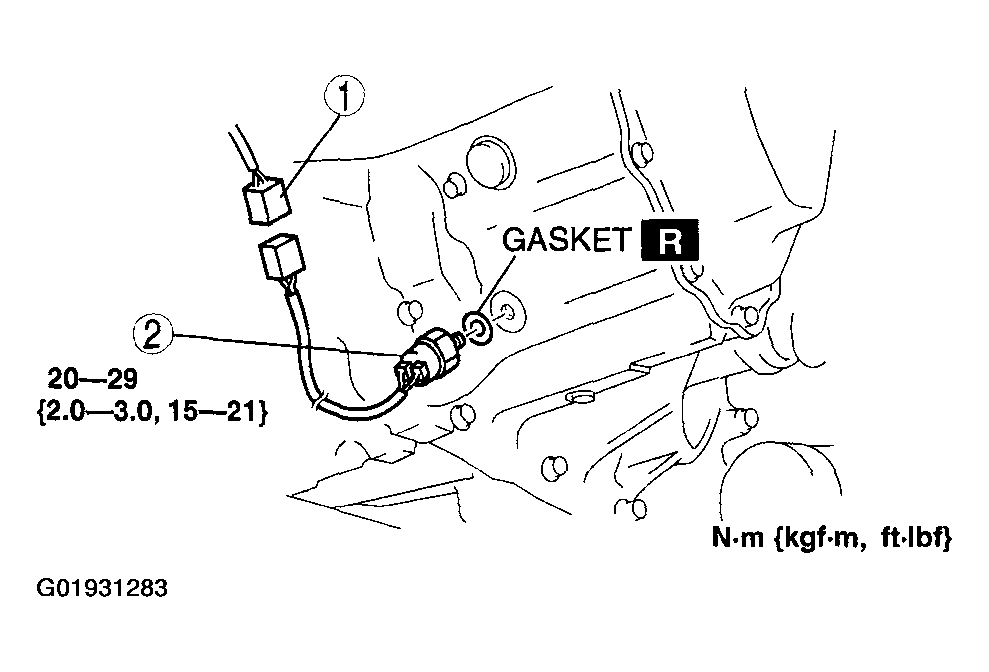

    Fig 1: Removing Back-Up Light Switch
    G01931283Courtesy of MAZDA MOTORS CORP.

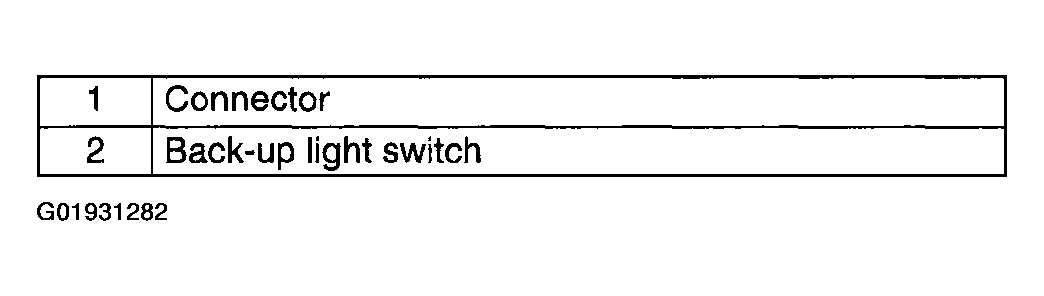

    Fig 2: Back-Up Light Switch Removal Sequence
    G01931282Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
