Climate Control Unit Installation

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pass air mix wire through the following routes then connect to A/C unit. (Manual air conditioner)

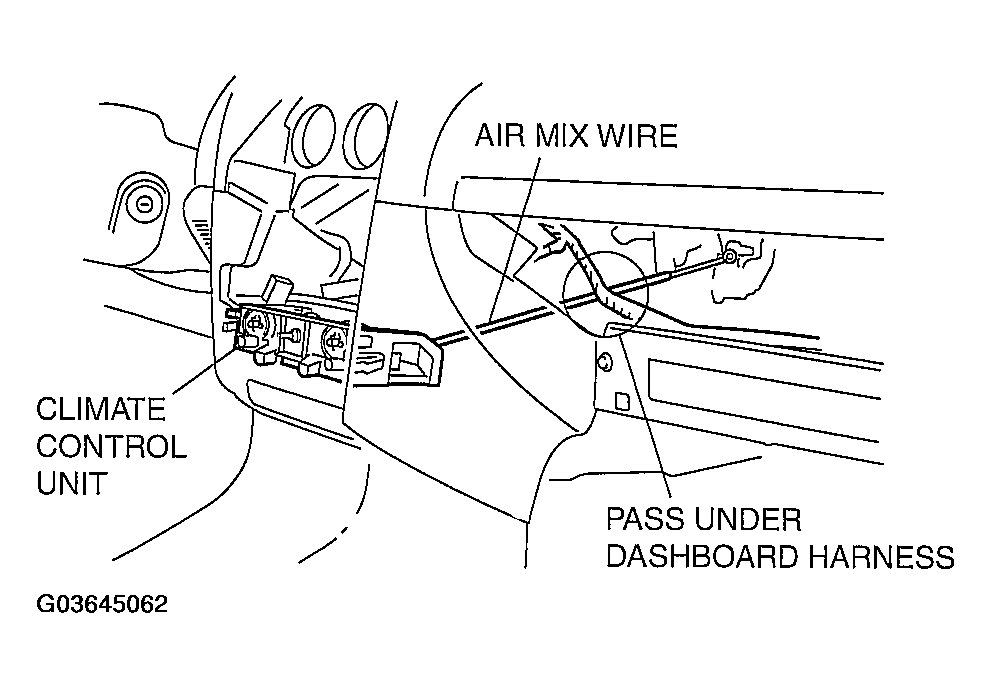

    Fig 1: Installing Climate Control Unit
    G03645062Courtesy of MAZDA MOTORS CORP.
  2. Connect the climate control unit connectors. (Manual air conditioner)
  3. Install the climate control unit to the center panel. (Full-auto air conditioner)
  4. Install the center panel.
  5. Adjust the climate control unit wire. (Manual air conditioner) (See CLIMATE CONTROL UNIT WIRE ADJUSTMENT  .)
  6. Connect the negative battery cable.
