Combination Switch Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION .)
  3. Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
  4. Remove the column cover.
  5. Remove the clock spring. (See CLOCK SPRING REMOVAL/INSTALLATION .)
  6. Remove in the order indicated in the table.

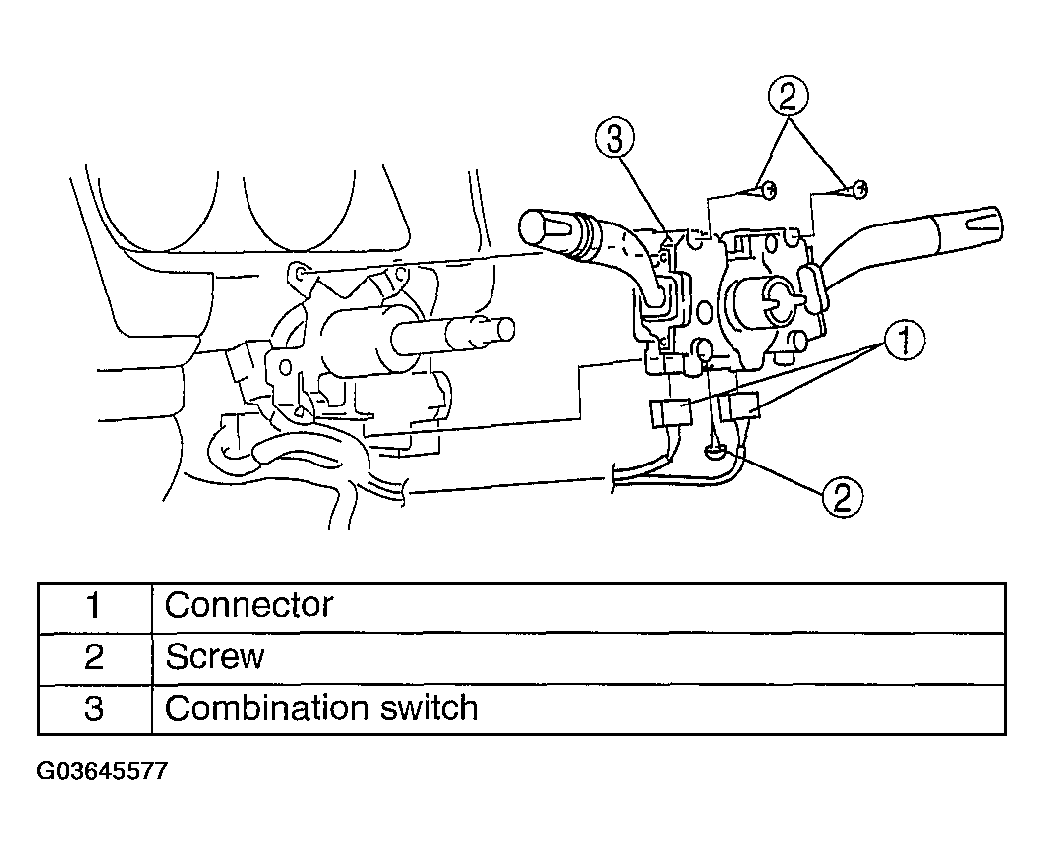

    Fig 1: Combination Switch Removal Sequence
    G03645577Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
