Inboard Combination Light Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the trunk lid trim. (See TRUNK LID TRIM REMOVAL/INSTALLATION [SEDAN] .)
  3. Remove in the order indicated in the table.

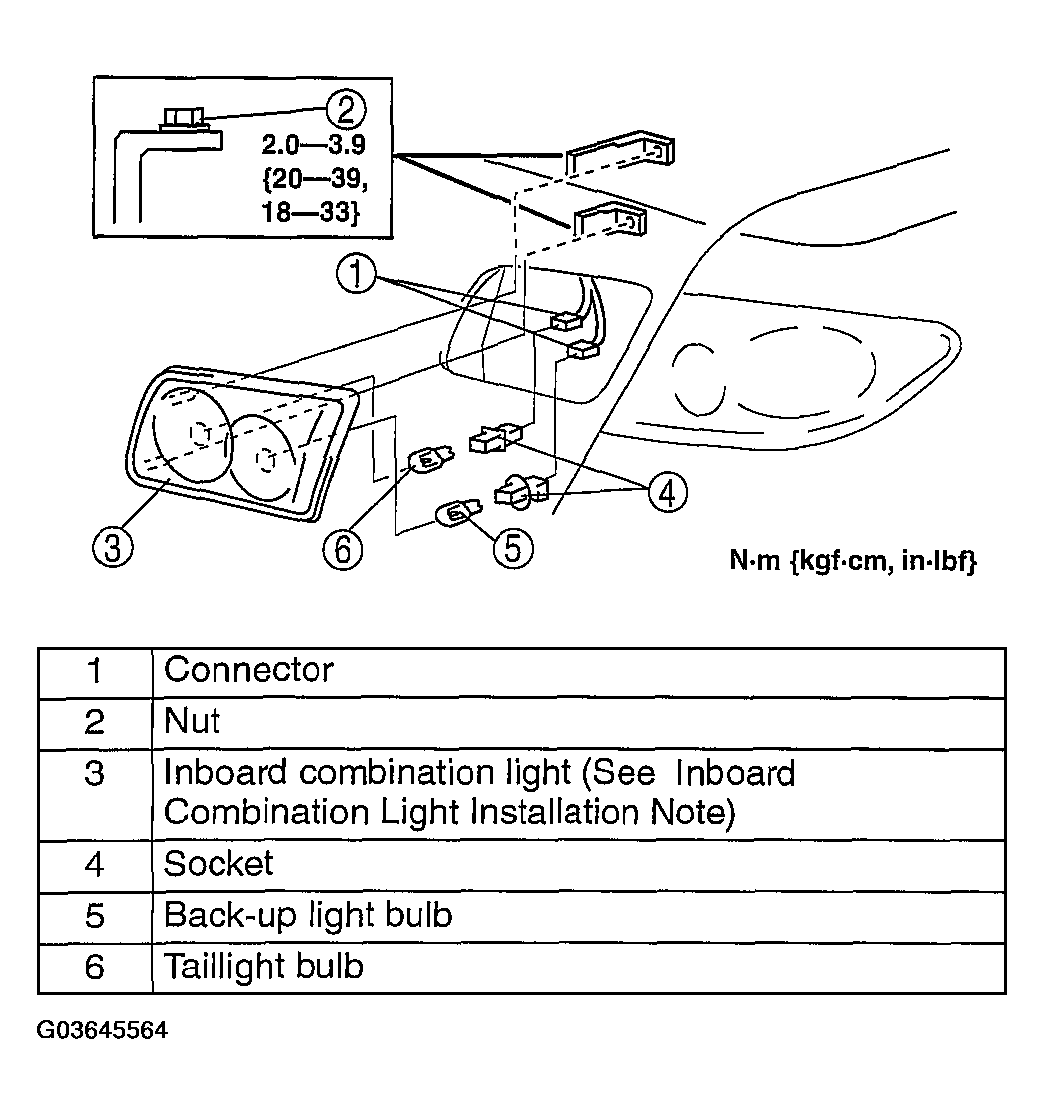

    Fig 1: Inboard Combination Light Removal Sequence (Torque Specs)
    G03645564Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
