Combination Switch Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] , DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
  3. Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
  4. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  5. Remove the dock spring. (See CLOCK SPRING REMOVAL/INSTALLATION .)
  6. Remove in the order indicated in the table.

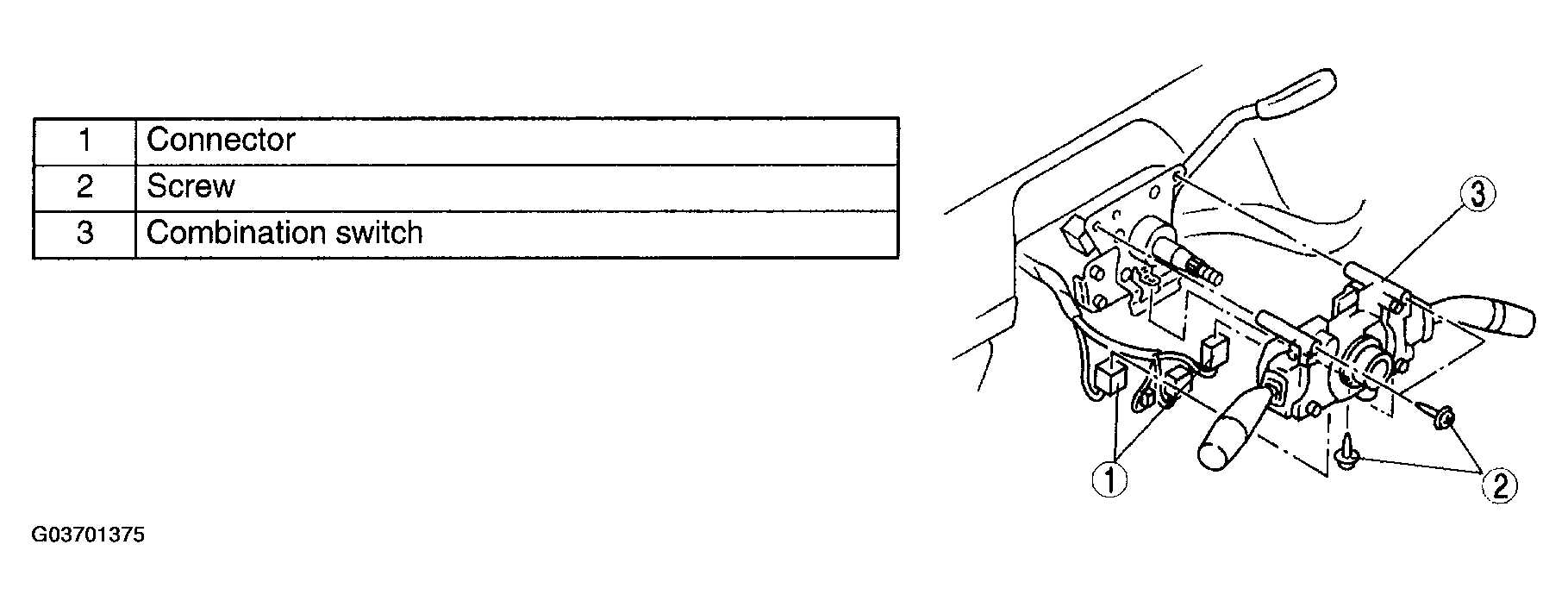

    Fig 1: Removing Combination Switch
    G03701375Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
