Home >> Mazda >> 2002 >> MPV ES >> Repair and Diagnosis >> Suspension >> Front Suspension System >> Front Lower Arm Removal/Installation >> Dust Boot Installation Note

Dust Boot Installation Note

  1. Wipe the grease off the ball joint.
  2. Fill the inside of the new dust boot with grease.
  3. Press the dust boot onto the ball joint using the SST.

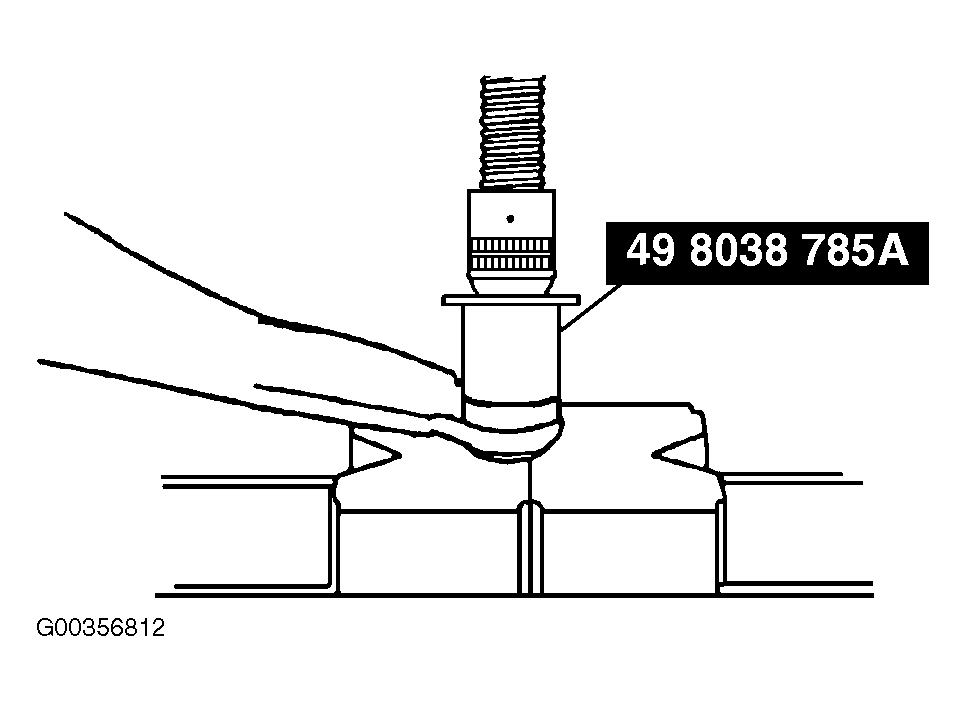

    Fig 1: Installing Dust Boot
    G00356812Courtesy of MAZDA MOTORS CORP.
  4. Wipe away the excess grease.
