Home >> Mazda >> 2002 >> MPV ES >> Repair and Diagnosis >> Suspension >> Front Suspension System >> Transverse Member Removal/Installation

Transverse Member Removal/Installation

  1. Remove in the order indicated in the table.

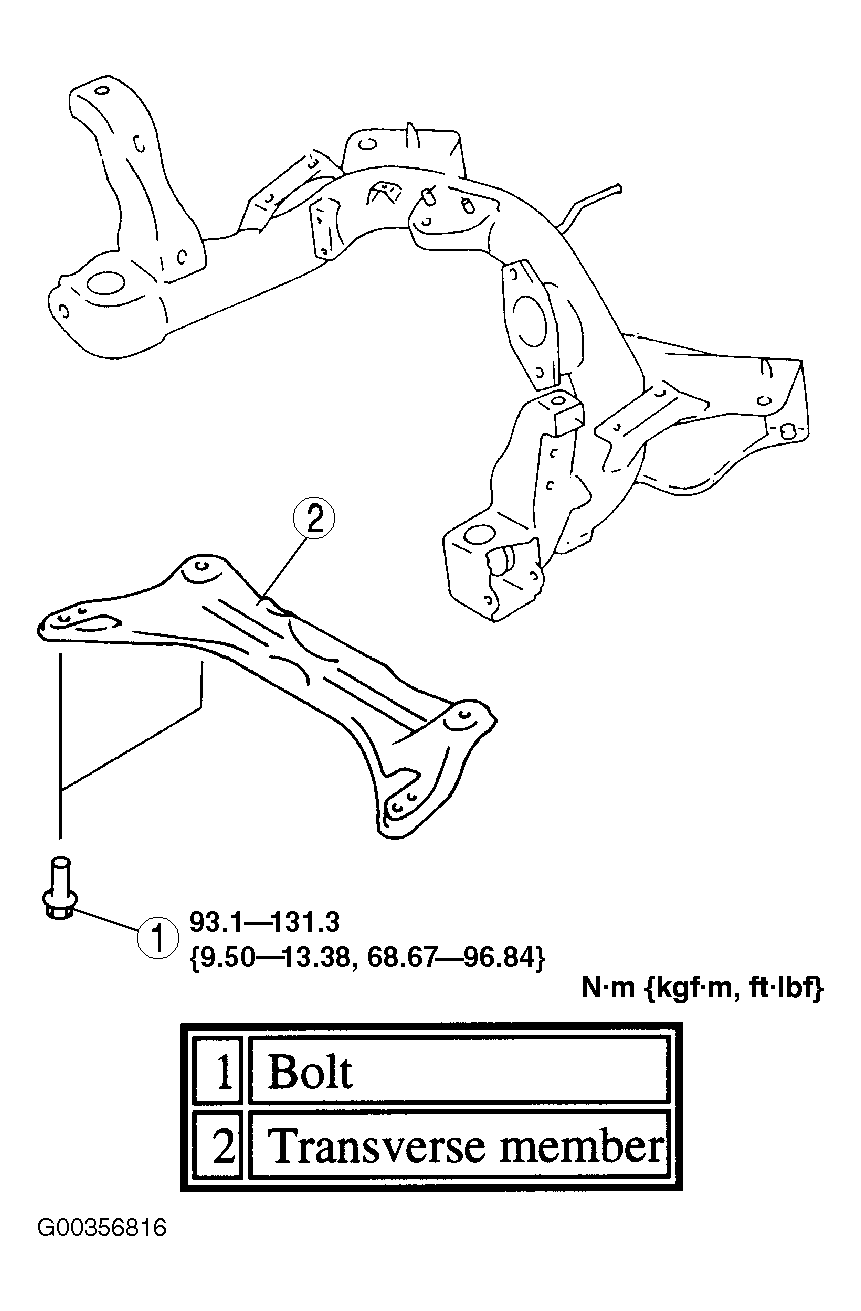

    Fig 1: Removing Transverse Member
    G00356816Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
