Power Window Regulator Disassembly

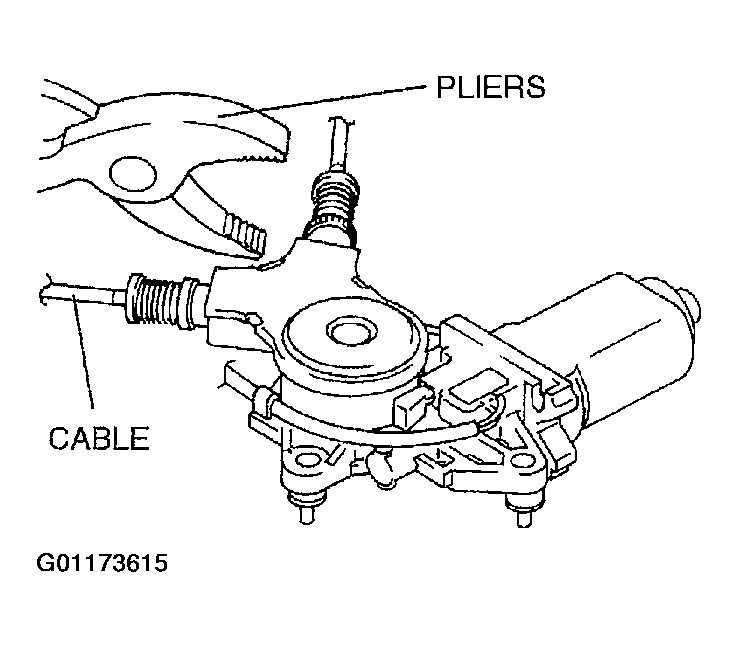

Tighten the adjusting bolt with pliers and loosen the cable.

Fig 1: Tightening Adjusting Bolt With Pliers
Courtesy of MAZDA MOTORS CORP.

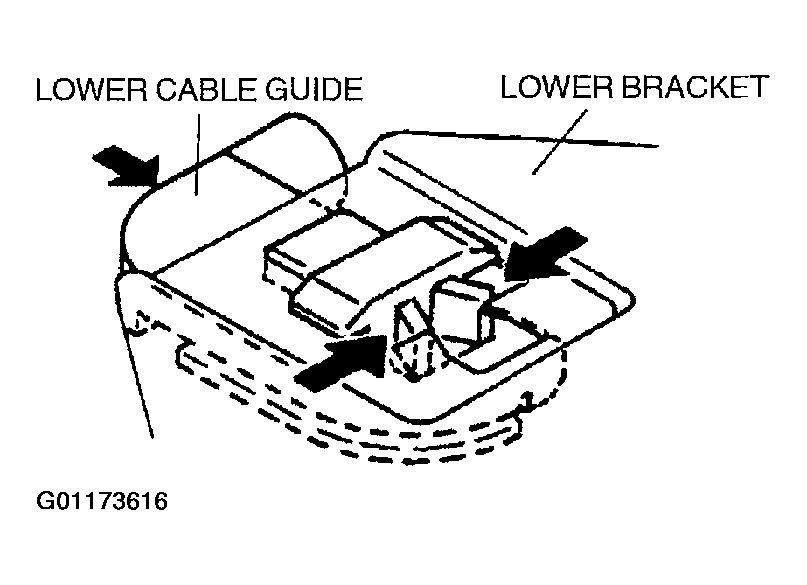

Disassemble the lower cable guide from the lower bracket with pliers.

Fig 2: Disassembling Lower Cable Guide From Lower Bracket
Courtesy of MAZDA MOTORS CORP.

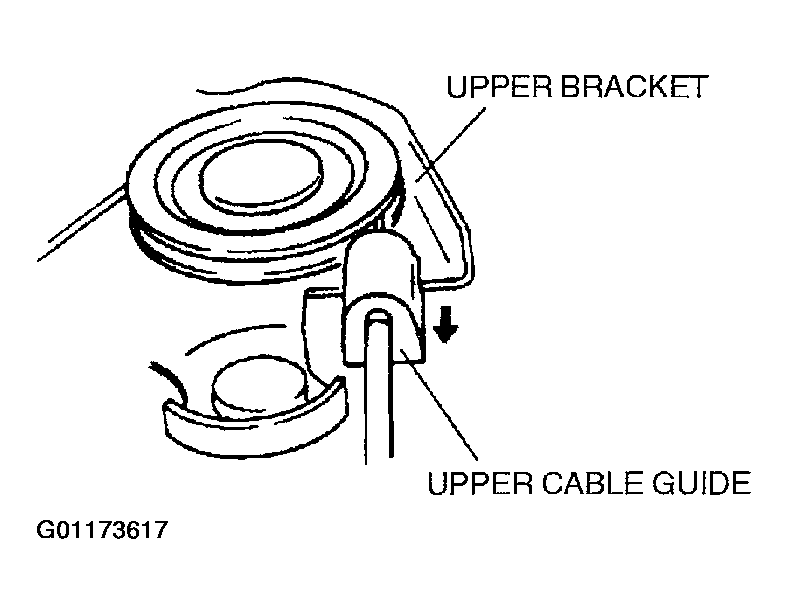

Disassemble the upper cable guide from the upper bracket.

Fig 3: Disassembling Upper Cable Guide From Upper Bracket

Courtesy of MAZDA MOTORS CORP.

Disassemble the drum cover.

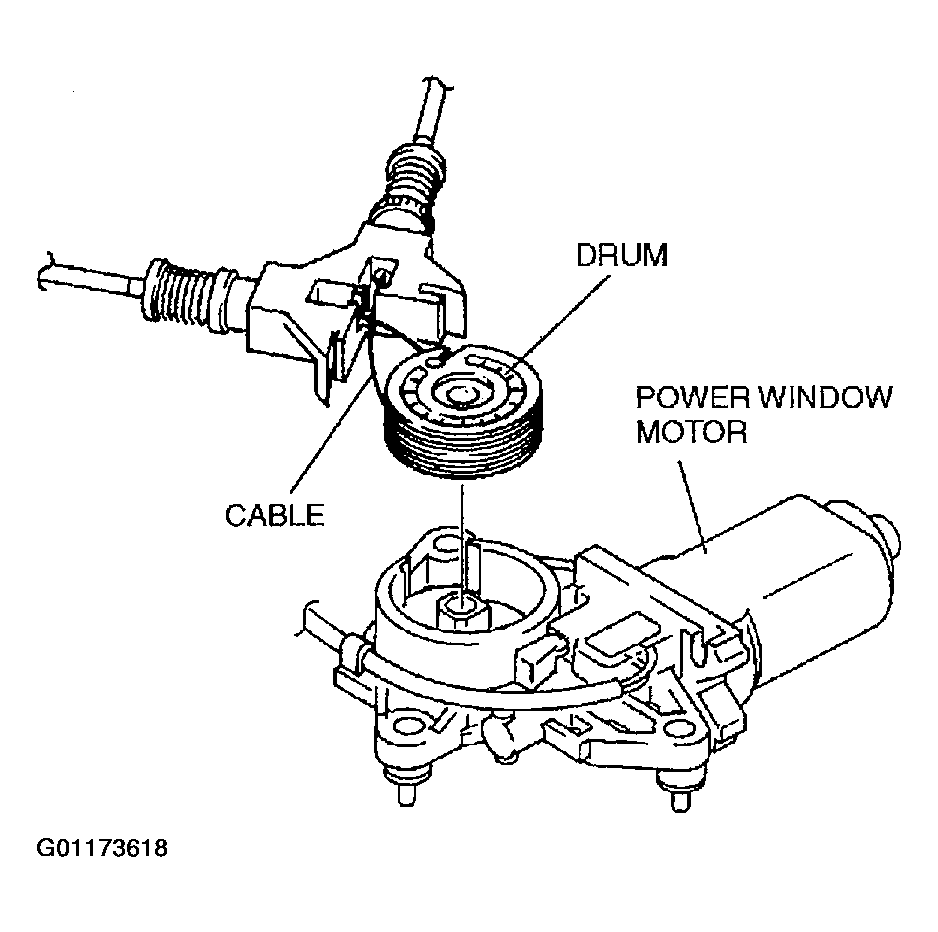

Take out the drum and disassemble the cable.

Fig 4: Locating Drum
Courtesy of MAZDA MOTORS CORP.
Pull the ends of the cables and disassemble from the carrier plate one at a time.

Fig 5: Disassembling Cables From Carrier Plate
Courtesy of MAZDA MOTORS CORP.
Disassemble the adjusting bolts.
