Power Window Regulator Removal/Installation

  1. Remove the front glass guide. See DOOR GLASS AND GUIDE REMOVAL/INSTALLATION  .
  2. Disconnect the negative battery cable.
  3. Remove in the order indicated in the table.

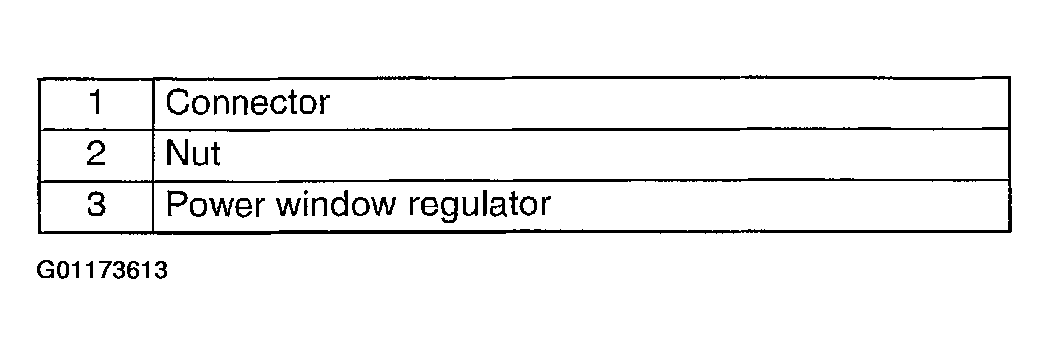

    Fig 1: Power Window Regulator Removal Order Table
    G01173613Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
  5. Adjust the door glass. See DOOR GLASS ADJUSTMENT  .

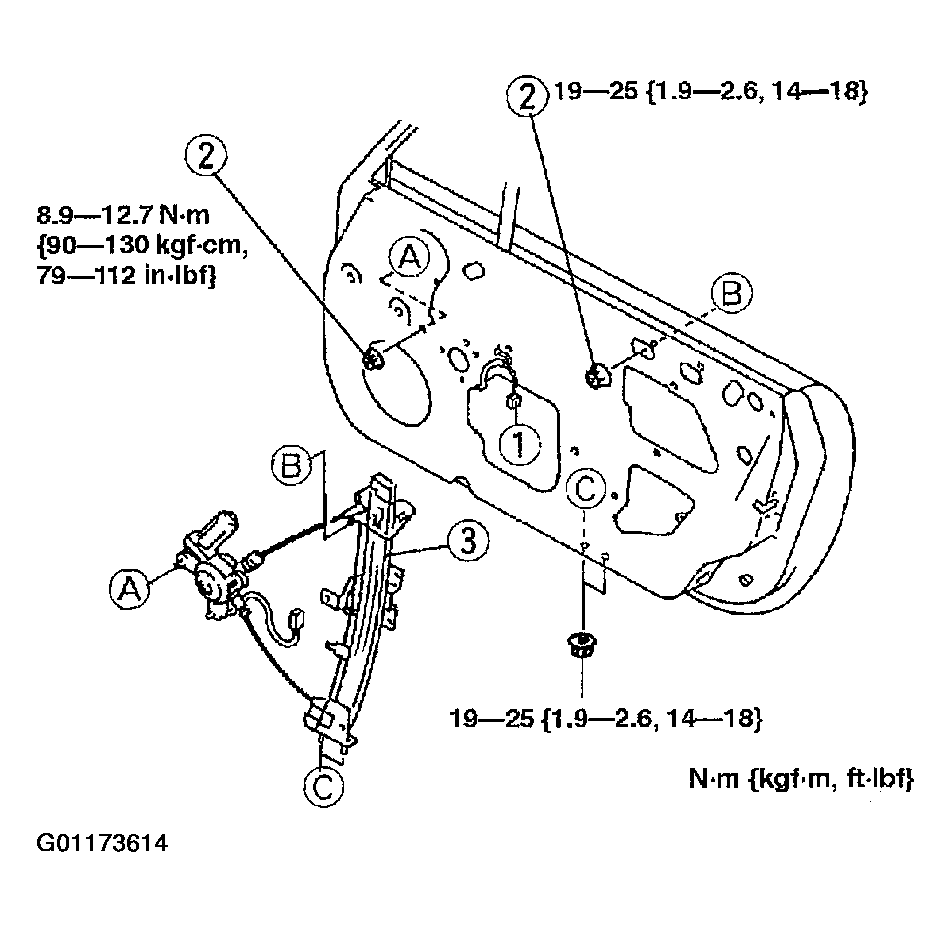

    Fig 2: Removing & Installing Power Window Regulator
    G01173614Courtesy of MAZDA MOTORS CORP.
