Power Window Switch Inspection

  1. Disconnect the negative battery cable.
  2. Remove the power window switch. See POWER WINDOW SWITCH REMOVAL/INSTALLATION  .
  3. Inspect for the continuity between the power window switch terminals using an ohmmeter.
    • If not as specified, replace the power window switch.

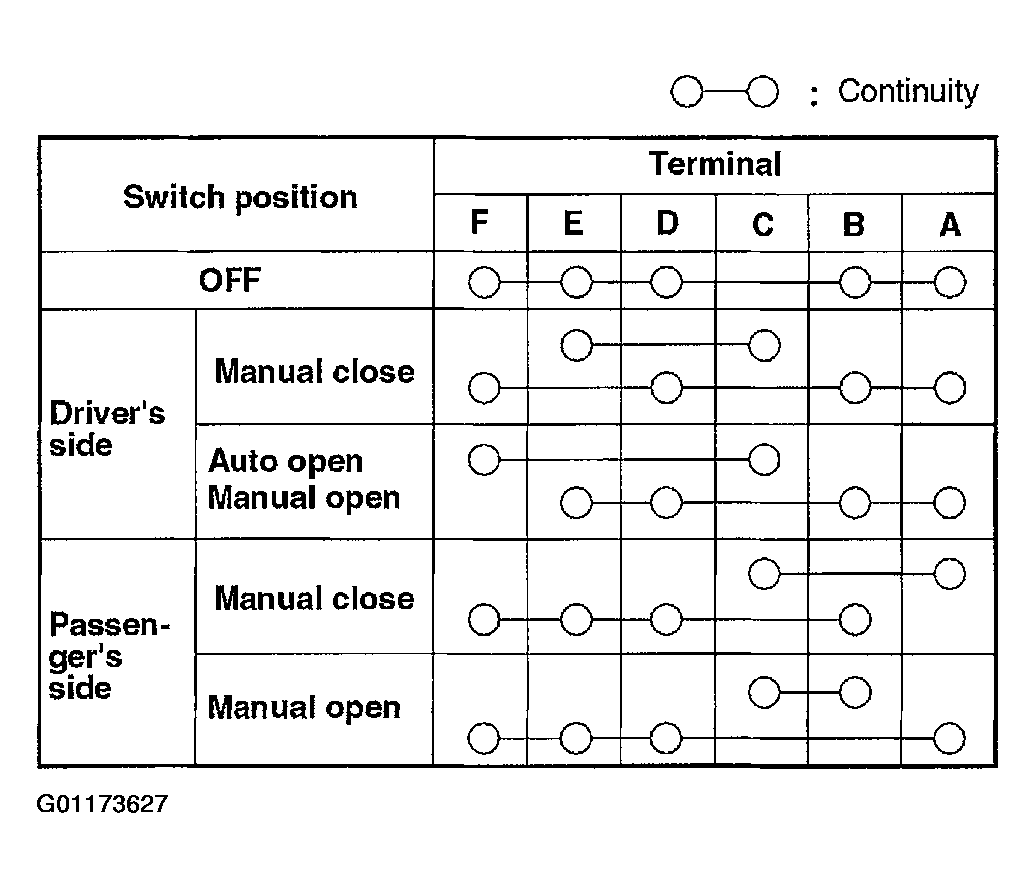

    Fig 1: Inspecting Power Window Switch (1 Of 2)
    G01173627Courtesy of MAZDA MOTORS CORP.

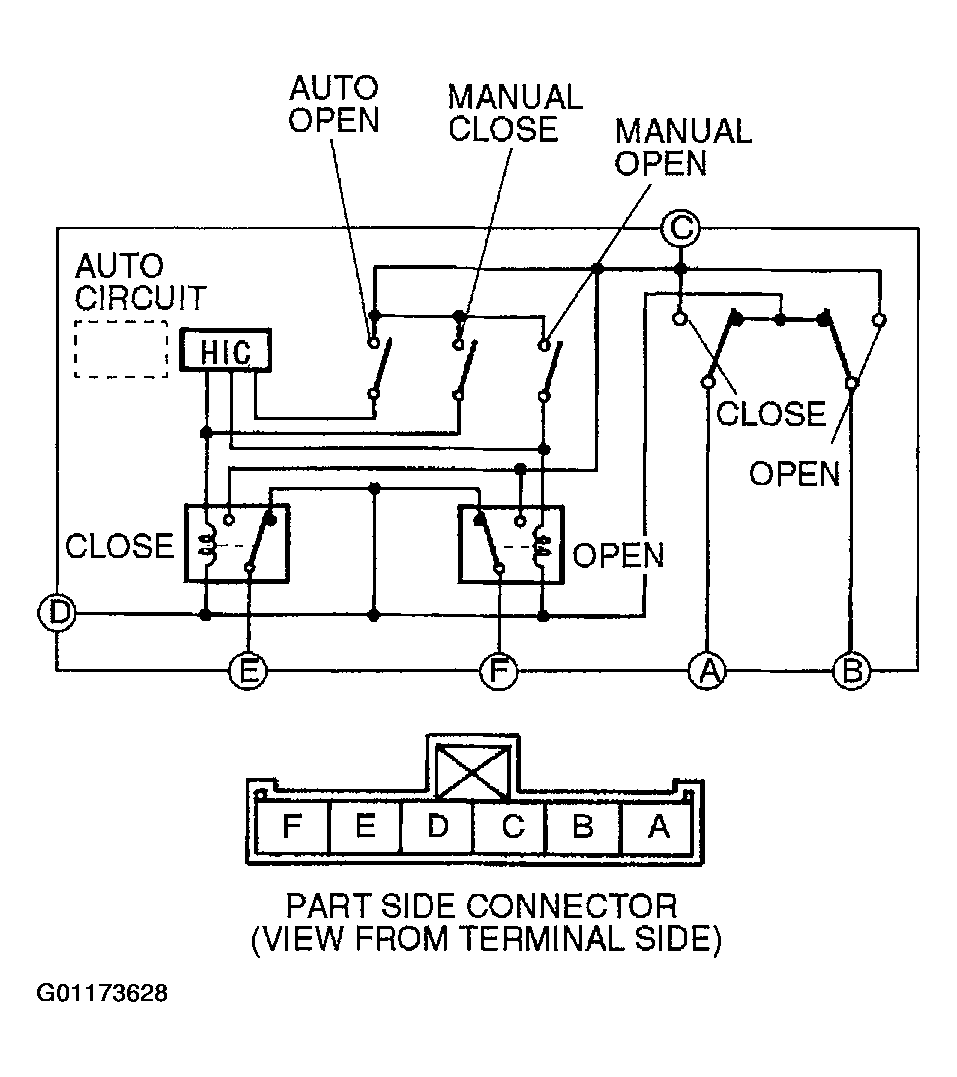

    Fig 2: Inspecting Power Window Switch (2 Of 2)
    G01173628Courtesy of MAZDA MOTORS CORP.
