Abs Harness And Input Signal Inspection: Notes

1. Disconnect the ABS HU/CM connector with the ignition switch at OFF.
   CAUTION:

   • Be careful not to damage the terminals during inspection.
2. Insert a thin isolation plate to the short bar of the connector (asterisk shown in the figure) and open circuit between terminal D and E, D and F.
3. Attach a wire to the tester lead to avoid damaging the terminals then inspect voltage, resistance or continuity, referring to the table below.

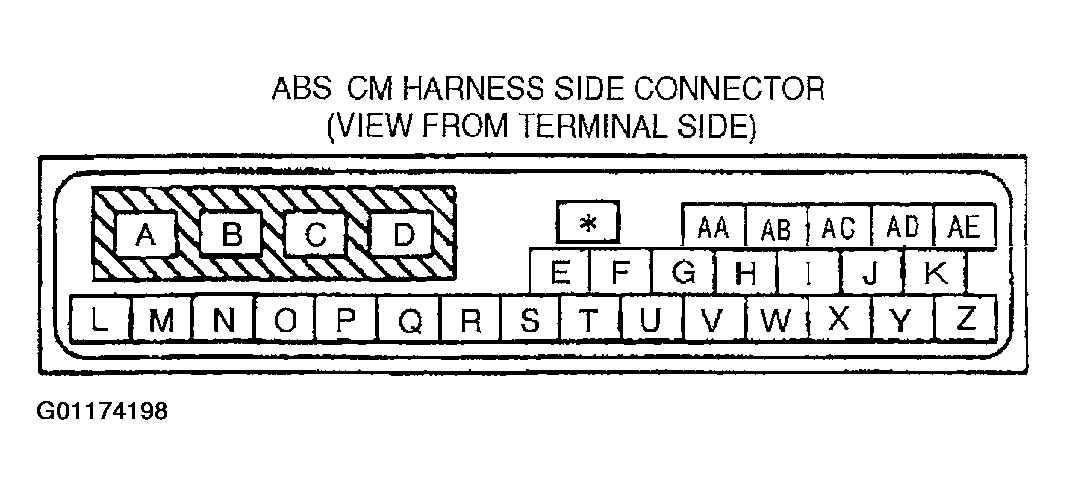

   Fig 1: Identifying ABS CM Harness Side Connector (Terminal Side)

   Courtesy of MAZDA MOTORS CORP.

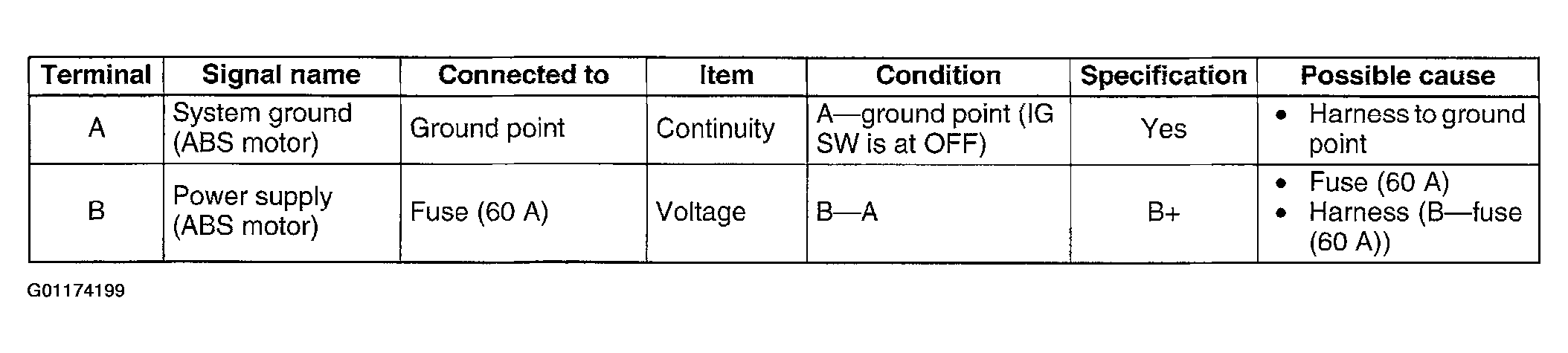

   Fig 2: ABS Harness & Input Signal Inspection Table (1 Of 3)

   Courtesy of MAZDA MOTORS CORP.

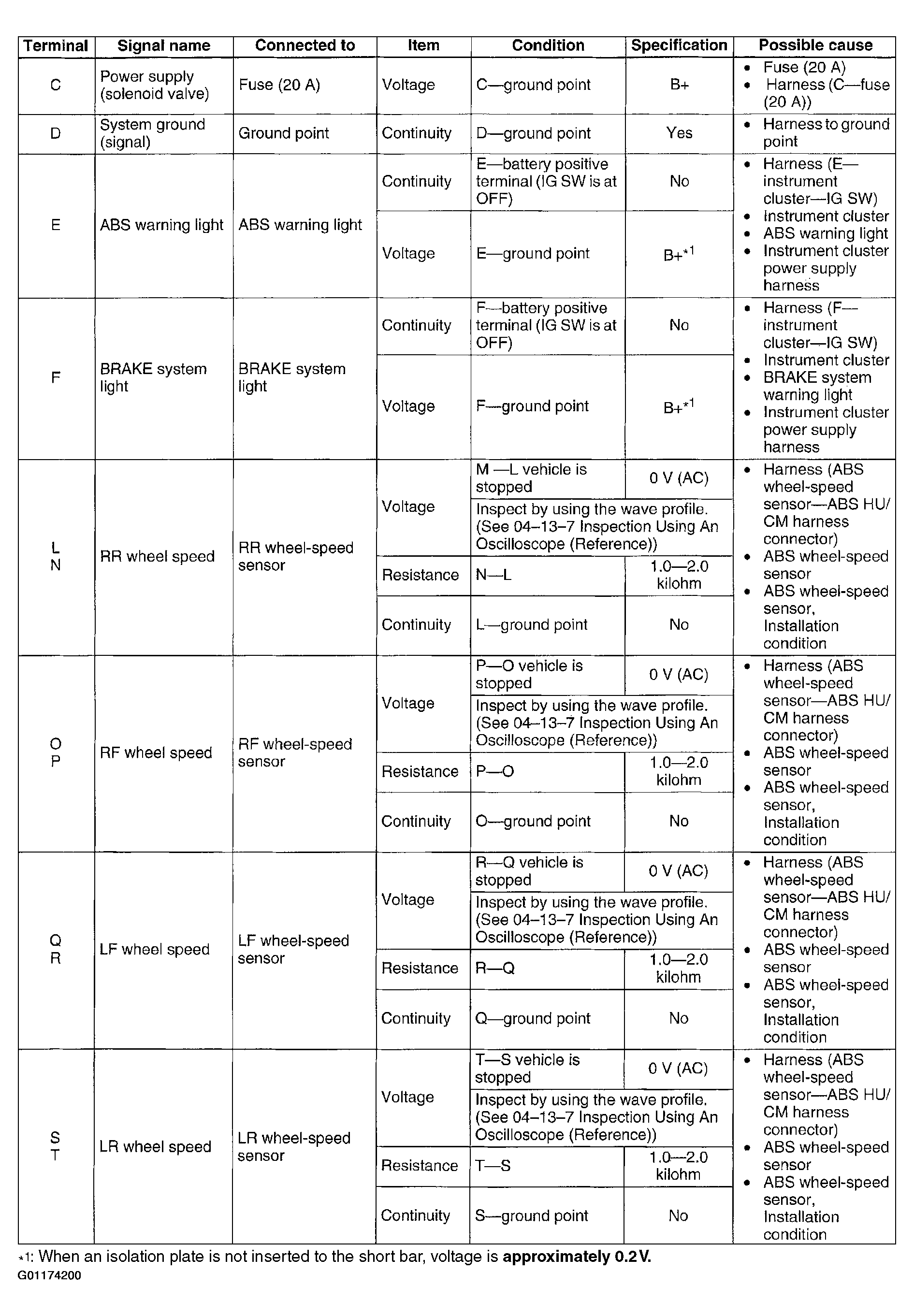

Fig 3: ABS Harness & Input Signal Inspection Table (2 Of 3)

Courtesy of MAZDA MOTORS CORP.

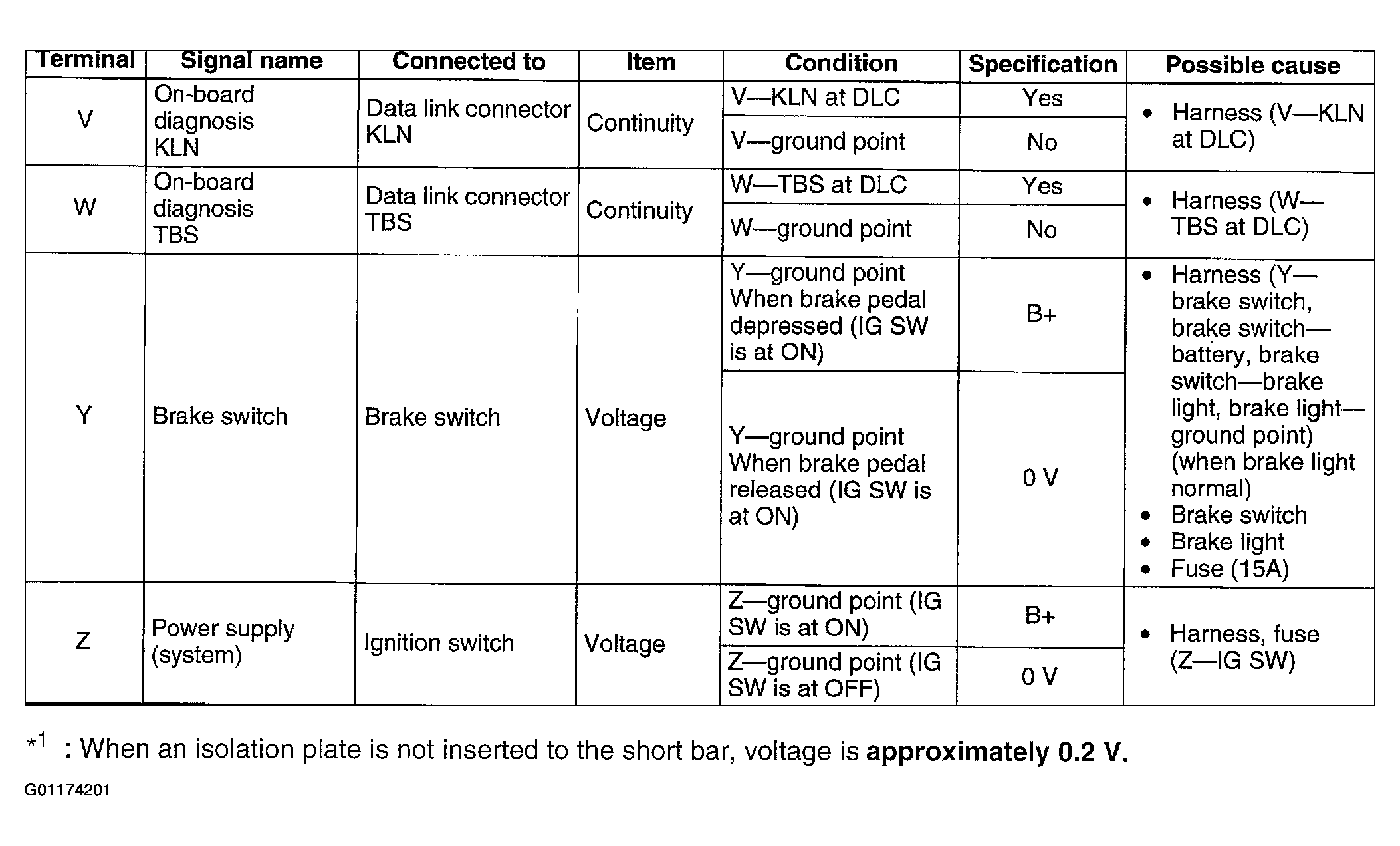

Fig 4: ABS Harness & Input Signal Inspection Table (3 Of 3)

Courtesy of MAZDA MOTORS CORP.
