Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| ABS Hydraulic Unit/Control Module | On right rear of engine compartment. |

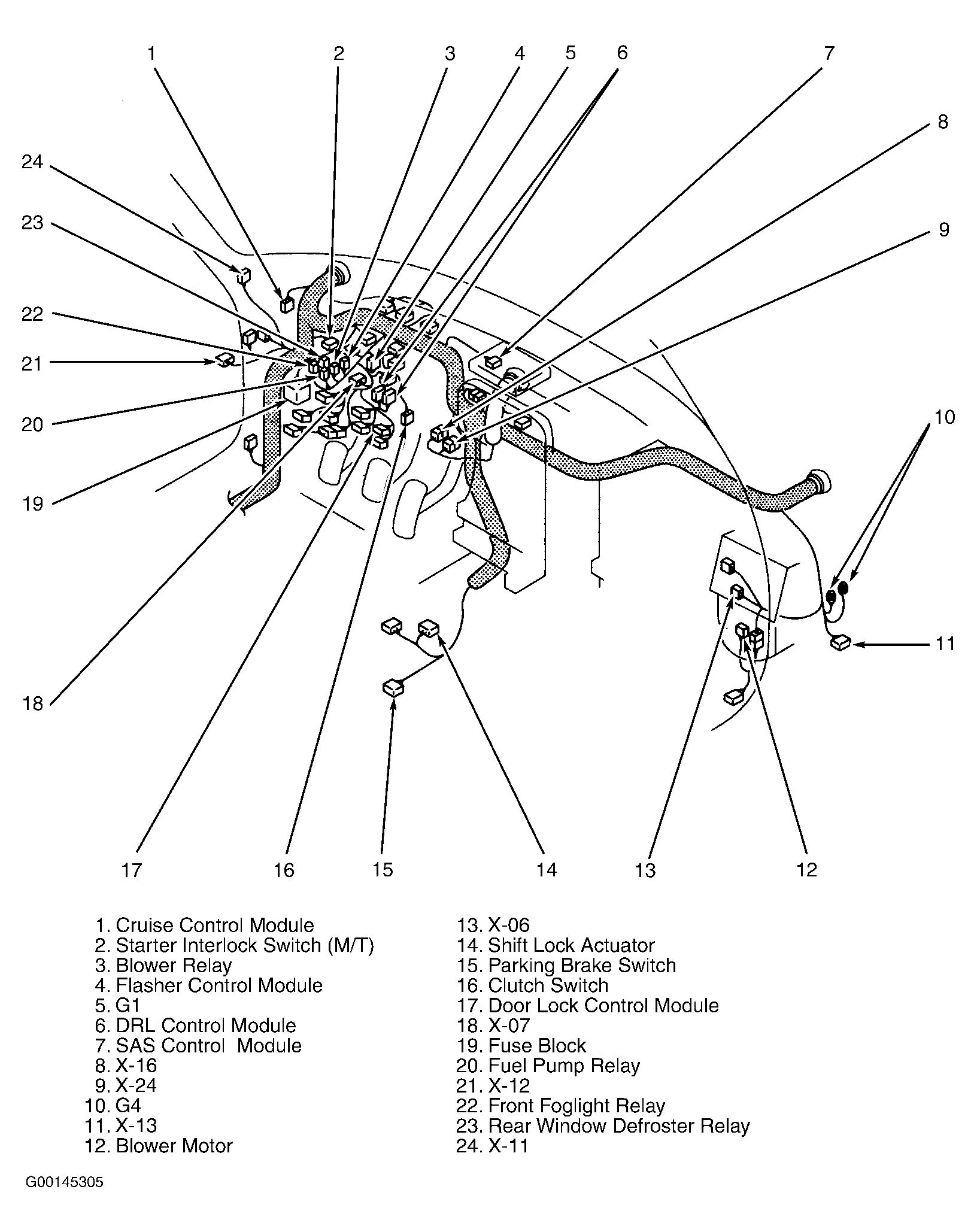

| Cruise Control Module | Behind left side of dash. See Figure . |
| Door Lock Control Module | Behind left side of dash. See Figure . |
| DRL Control Module | Behind left side of dash. See Figure . |
| Flasher Control Module | Behind left side of dash. See Figure . |
| Immobilizer Unit | Behind lower left side of dash. |
| Key Interlock Unit | Behind left end of dash. |
| Keyless Control Module | Behind right side of dash. |
| PCM | Behind left side of dash. |
| SAS Control Module | Behind upper center of dash. See Figure . |
| Transmission Control Module | Behind left side of dash. |
