Operating Order

NOTE:
  • Wait 30 seconds or more have passed after disconnecting the negative battery cable and connect the cable then operate the input/output check mode again after terminating the input/output check mode.
  1. Close the all doors.
  2. Disconnect the negative battery cable.
  3. Open the driver's side door.
  4. Connect the negative battery cable.
  5. Perform the following procedures within 30 seconds  , after connecting the negative battery cable.
    1. Turn the ignition switch to the ON position.
    2. Push the door switch 3 times.
    3. Push the odometer/tripmeter switch 3 times.

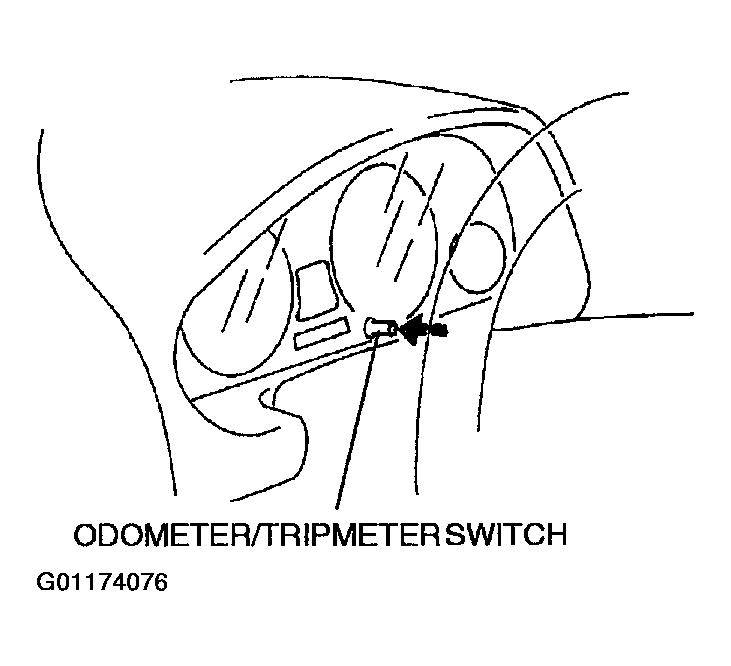

    Fig 1: Locating Odometer/Tripmeter Switch
    G01174076Courtesy of MAZDA MOTORS CORP.
