Exhaust System Removal/Installation: Notes

WARNING:

• Hot engines and exhaust system can cause severe burns. Turn off the engine and wait until it and the exhaust system are cool before removing or installing the exhaust system.

1. Disconnect the negative battery cable.
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.

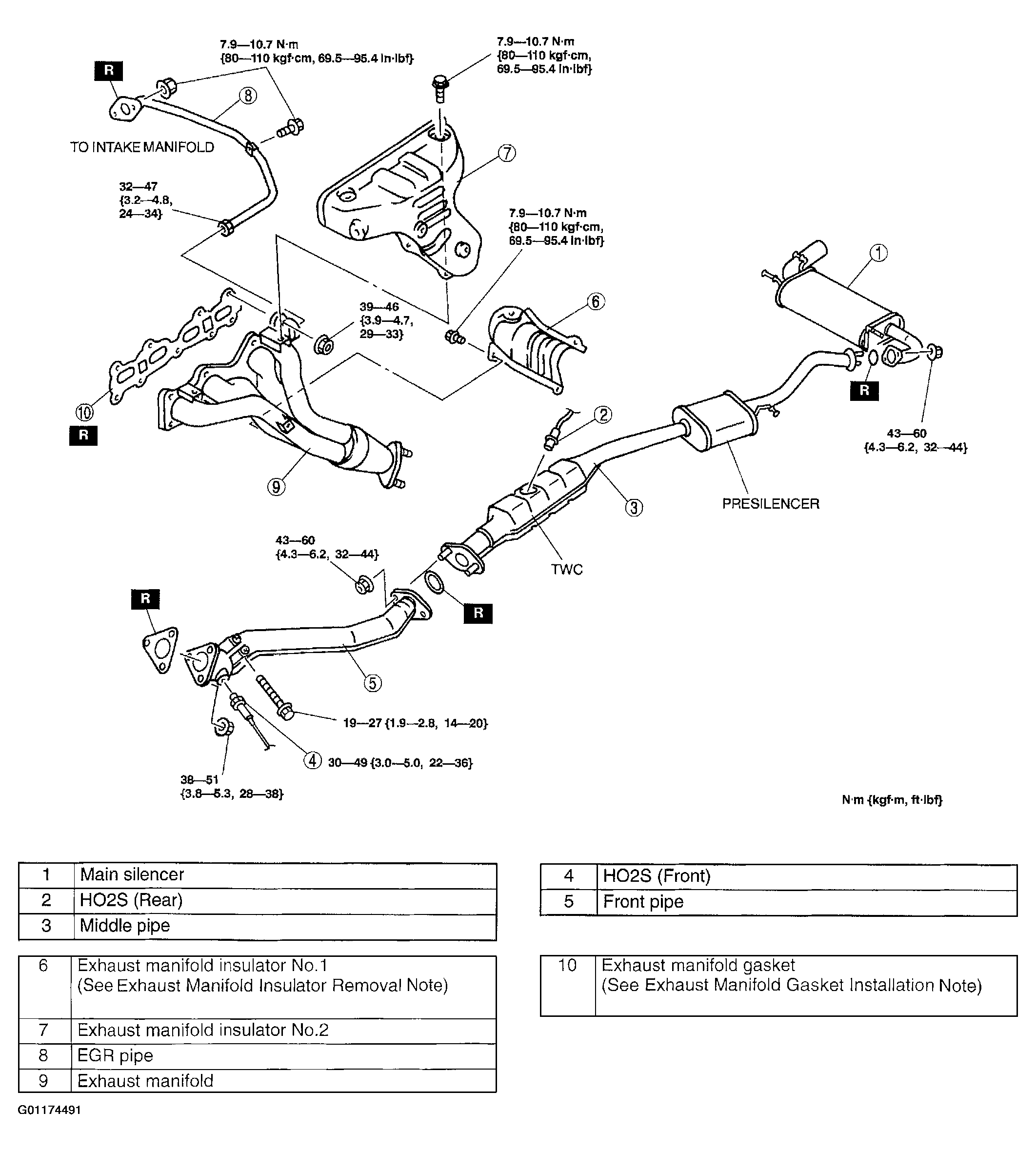

Fig 1: Removing & Installing Exhaust System

Courtesy of MAZDA MOTORS CORP.
