Ignition Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the column cover.
  3. Remove in the order indicated in the table.

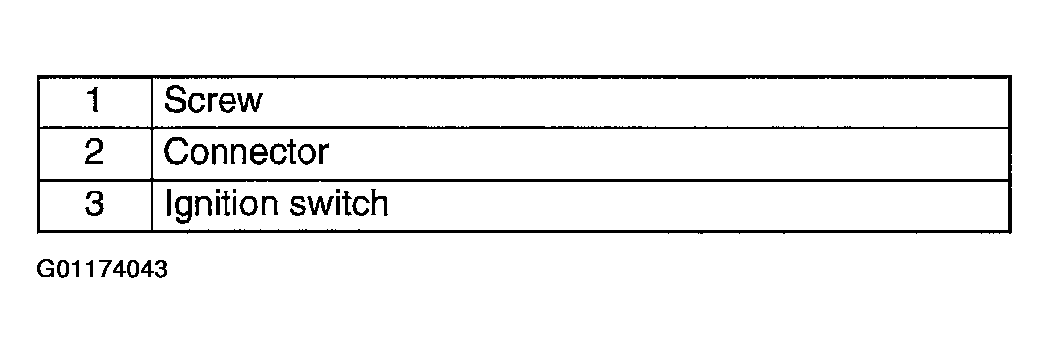

    Fig 1: Ignition Switch Removal & Installation Sequence Table
    G01174043Courtesy of MAZDA MOTORS CORP.

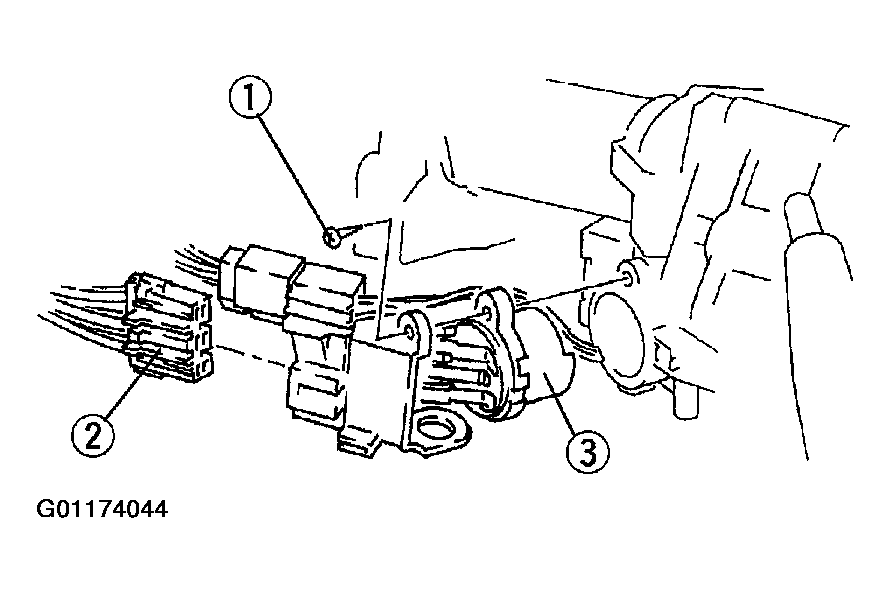

    Fig 2: Removing & Installing Ignition Switch
    G01174044Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
