Component Location

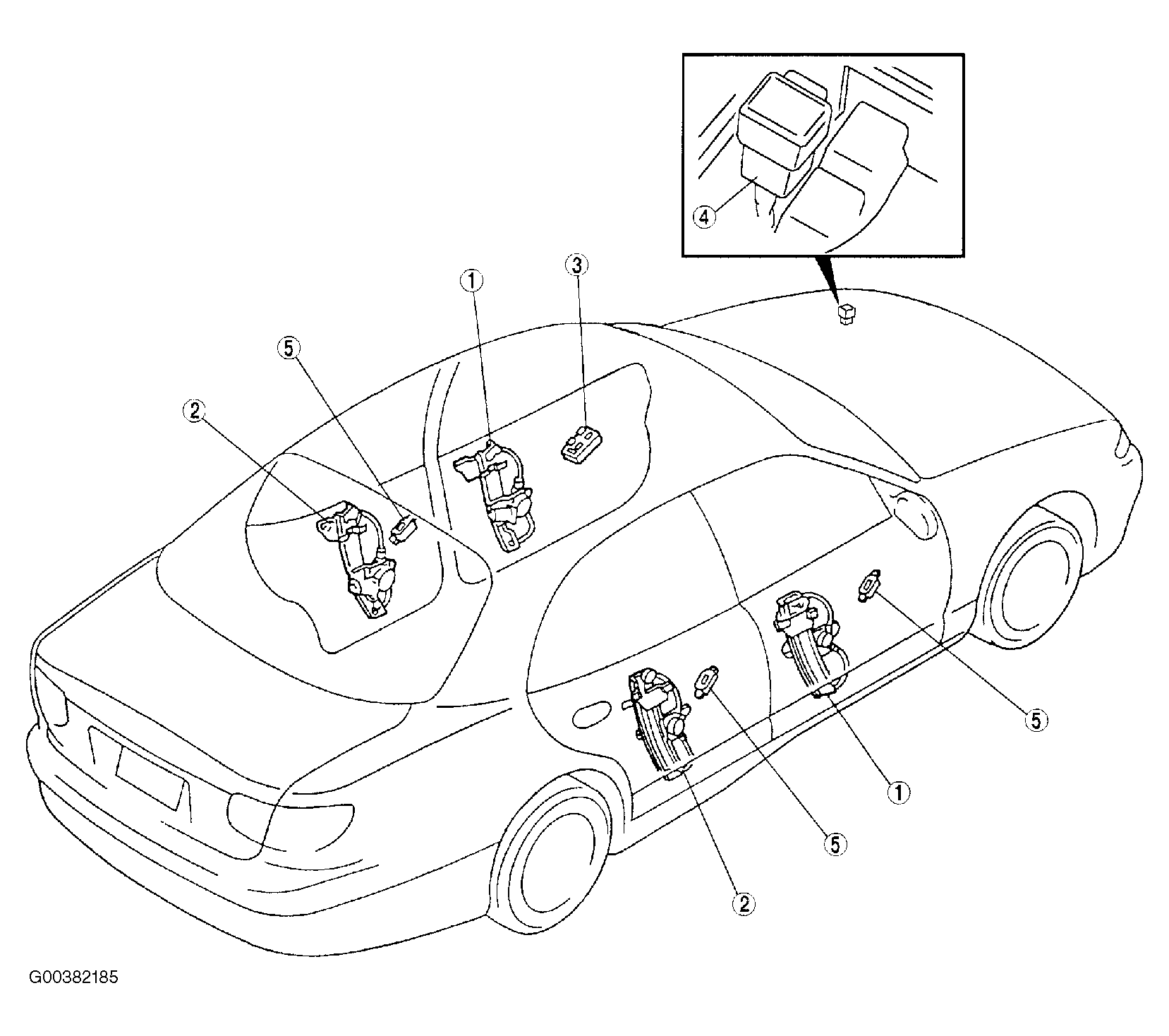

Fig 1: Power Window Component Locations
G00382185Courtesy of MAZDA MOTORS CORP.
  1. Front power window regulator. See FRONT POWER WINDOW REGULATOR REMOVAL/INSTALLATION  . See POWER WINDOW REGULATOR INSPECTION  .
  2. Rear power window regulator. See REAR POWER WINDOW REGULATOR REMOVAL/INSTALLATION  . See POWER WINDOW REGULATOR INSPECTION  .
  3. Power window main switch. See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION  . See POWER WINDOW MAIN SWITCH INSPECTION  .
  4. Power window relay. See RELAY INSPECTION .
  5. Power window subswitch. See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION  . See POWER WINDOW SUBSWITCH INSPECTION  .
