Home >> Mazda >> 2002 >> Millenia P >> Repair and Diagnosis >> Body & Frame >> Power Windows >> Removal & Installation >> Power Window Main Switch Removal/Installation >> Notes

Power Window Main Switch Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the front door trim. See FRONT DOOR TRIM REMOVAL/INSTALLATION .
  3. Remove the screws, then remove the power window main switch.

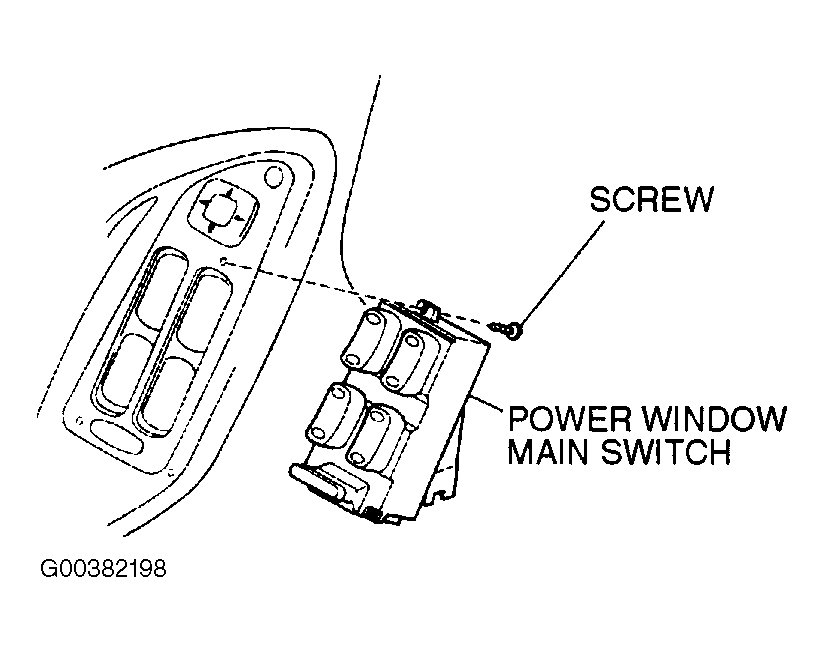

    Fig 1: Removing Power Window Switch
    G00382198Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
