Home >> Mazda >> 2002 >> Millenia P >> Repair and Diagnosis >> Brakes >> Traction Control >> Antilock Brake System >> Front Abs Wheel-Speed Sensor Removal/Installation >> Notes

Front Abs Wheel-Speed Sensor Removal/Installation: Notes

  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.

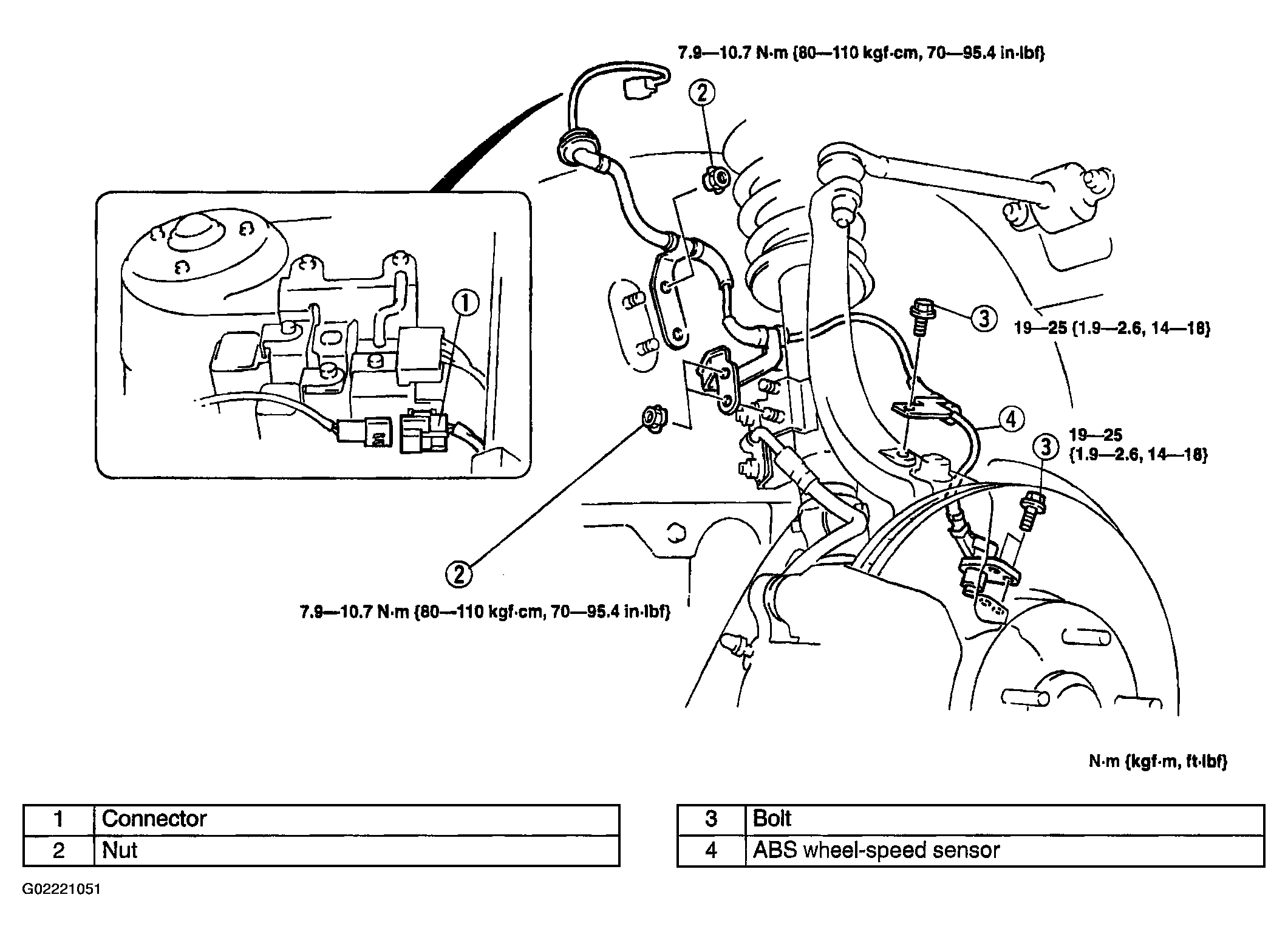

    Fig 1: Identifying Front ABS Wheel-Speed Sensor Removal/Installation
    G02221051Courtesy of MAZDA MOTORS CORP.
