Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

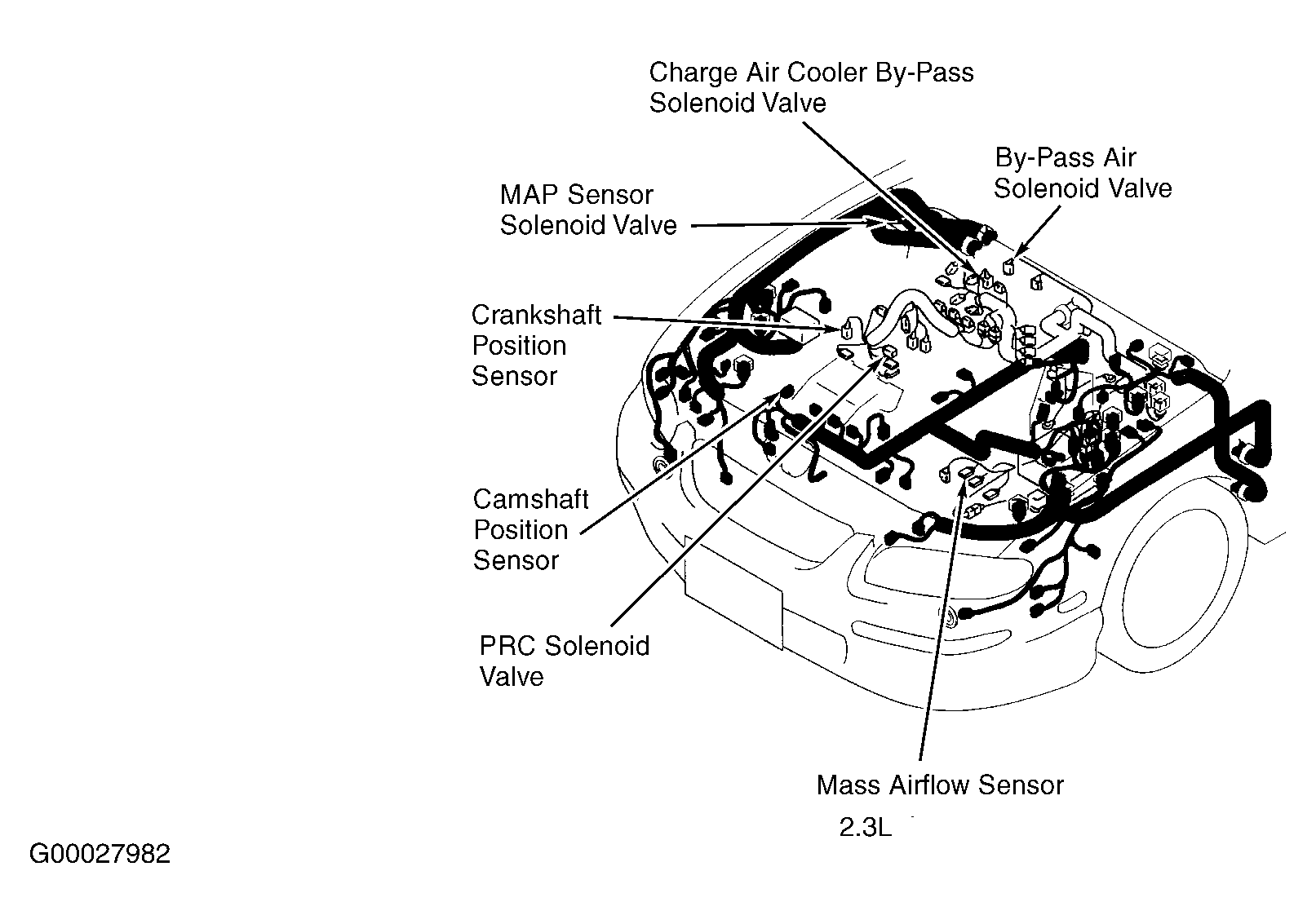

Fig 1: Engine Compartment (2.3L)

Courtesy of MAZDA MOTORS CORP.

Fig 2: Engine Compartment (2.3L)

Courtesy of MAZDA MOTORS CORP.

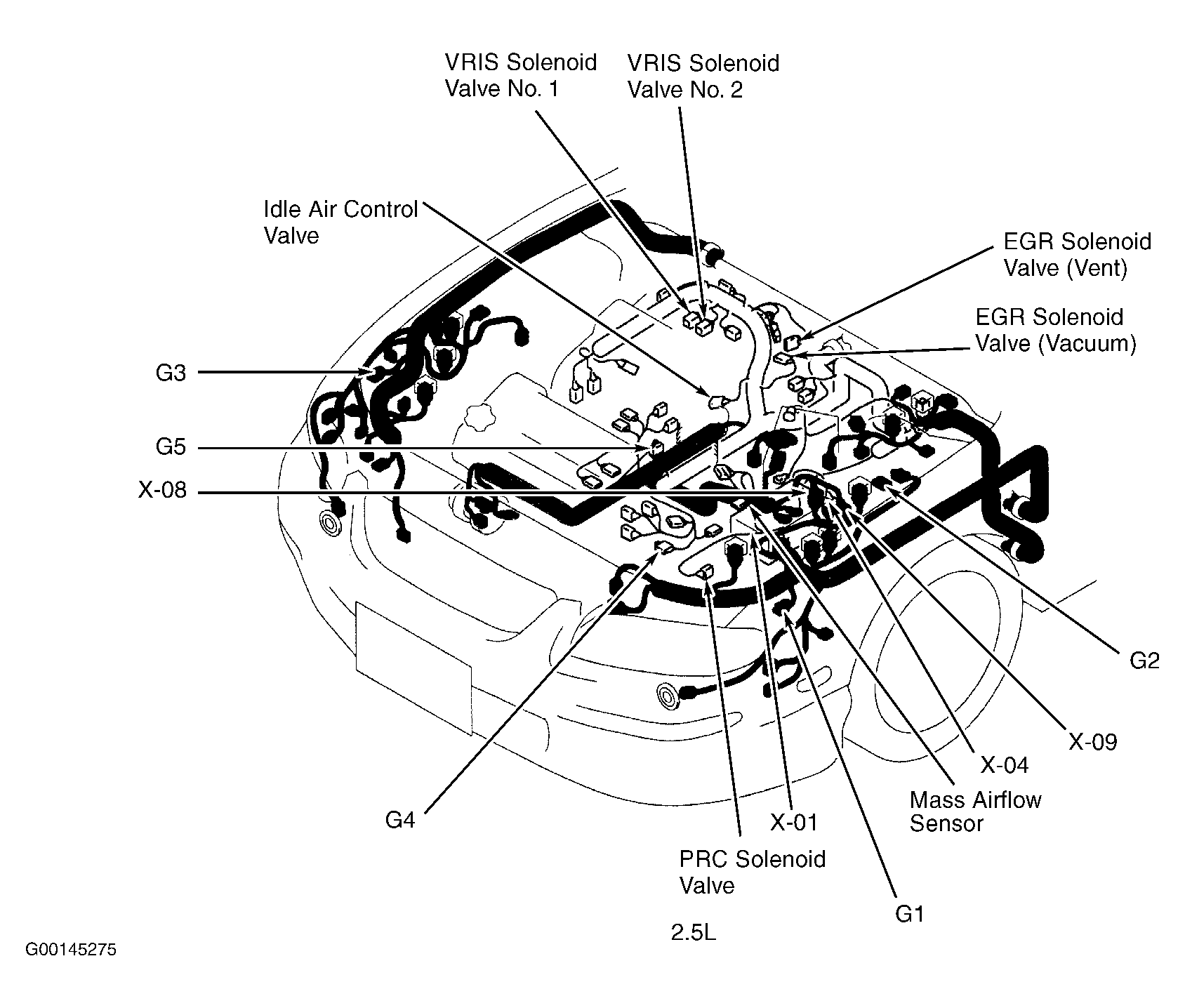

Fig 3: Engine Compartment (2.5L)

Courtesy of MAZDA MOTORS CORP.

Fig 4: Engine Compartment (2.5L)

Courtesy of MAZDA MOTORS CORP.

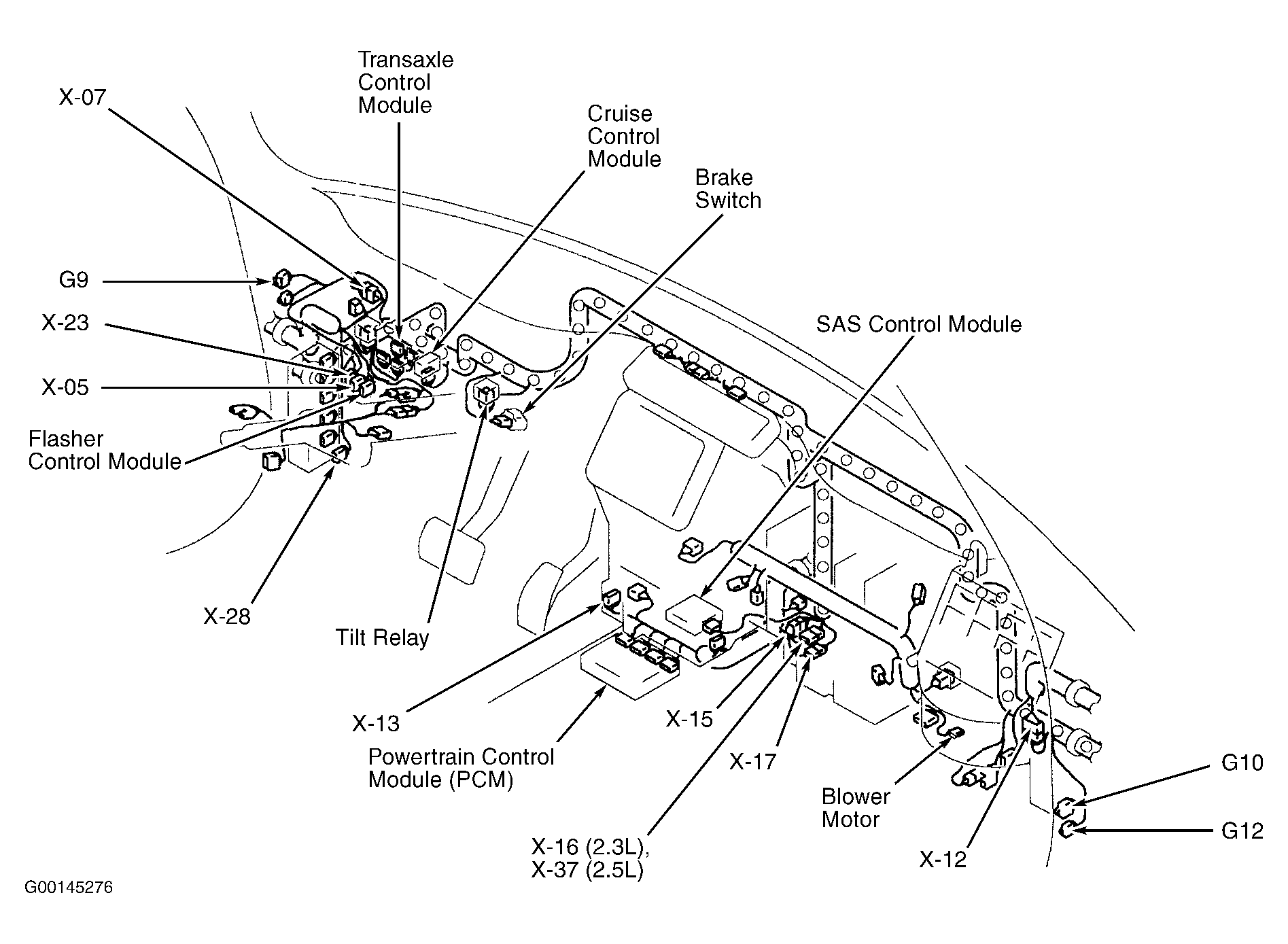

Fig 5: Dash

Courtesy of MAZDA MOTORS CORP.

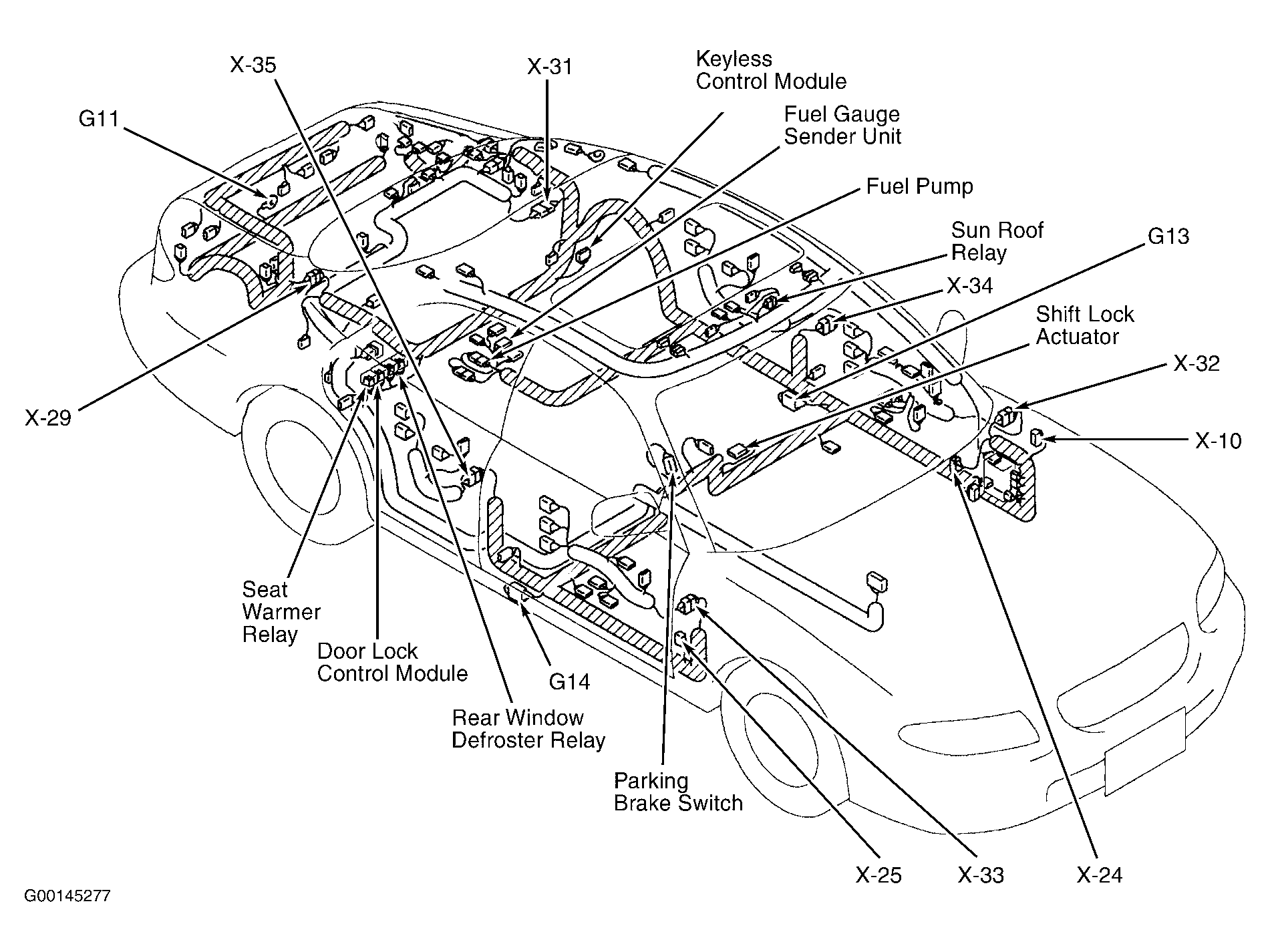

Fig 6: Overview Of Vehicle

Courtesy of MAZDA MOTORS CORP.
