Console Disassembly/Assembly

  1. Disassemble in the order indicated in the illustrations.

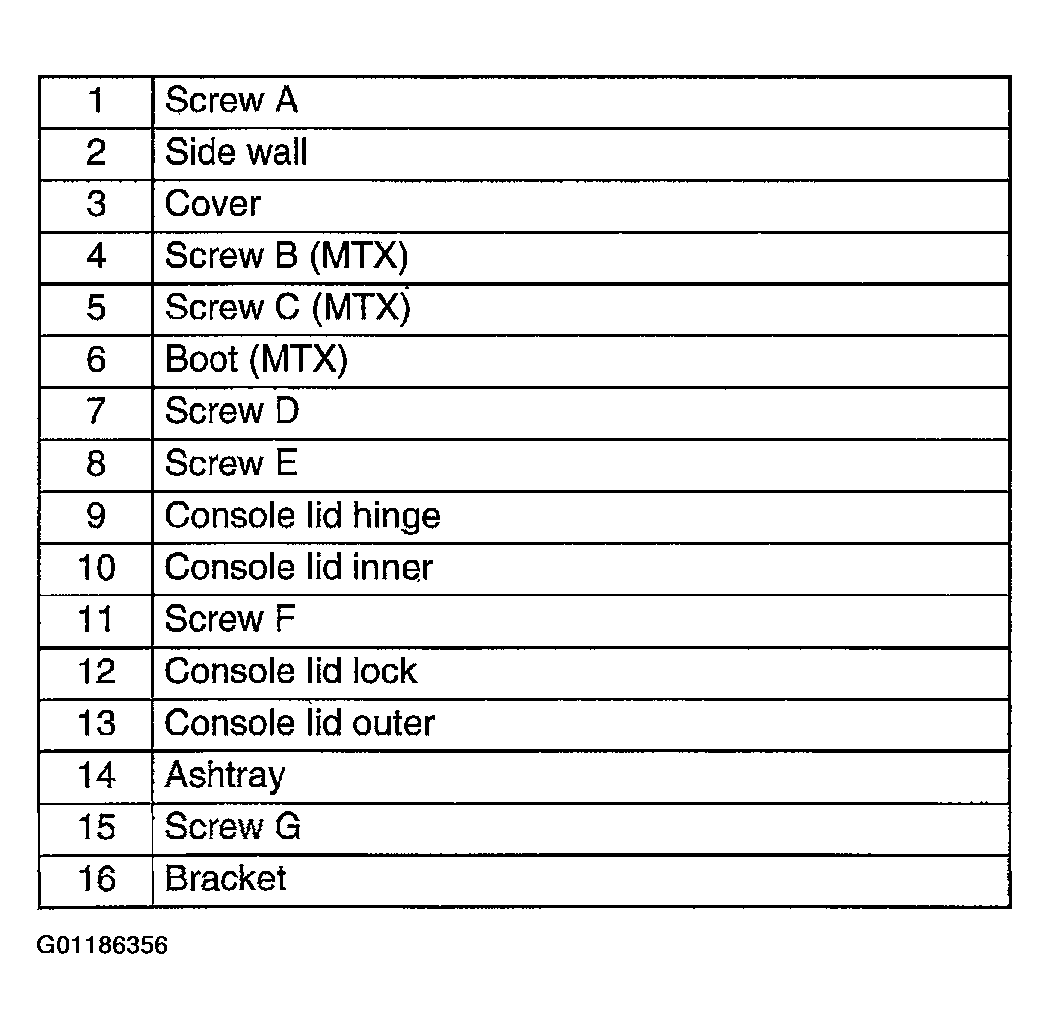

    Fig 1: Disassembly/Assembly Of Console (1 Of 2)
    G01186356Courtesy of MAZDA MOTORS CORP.

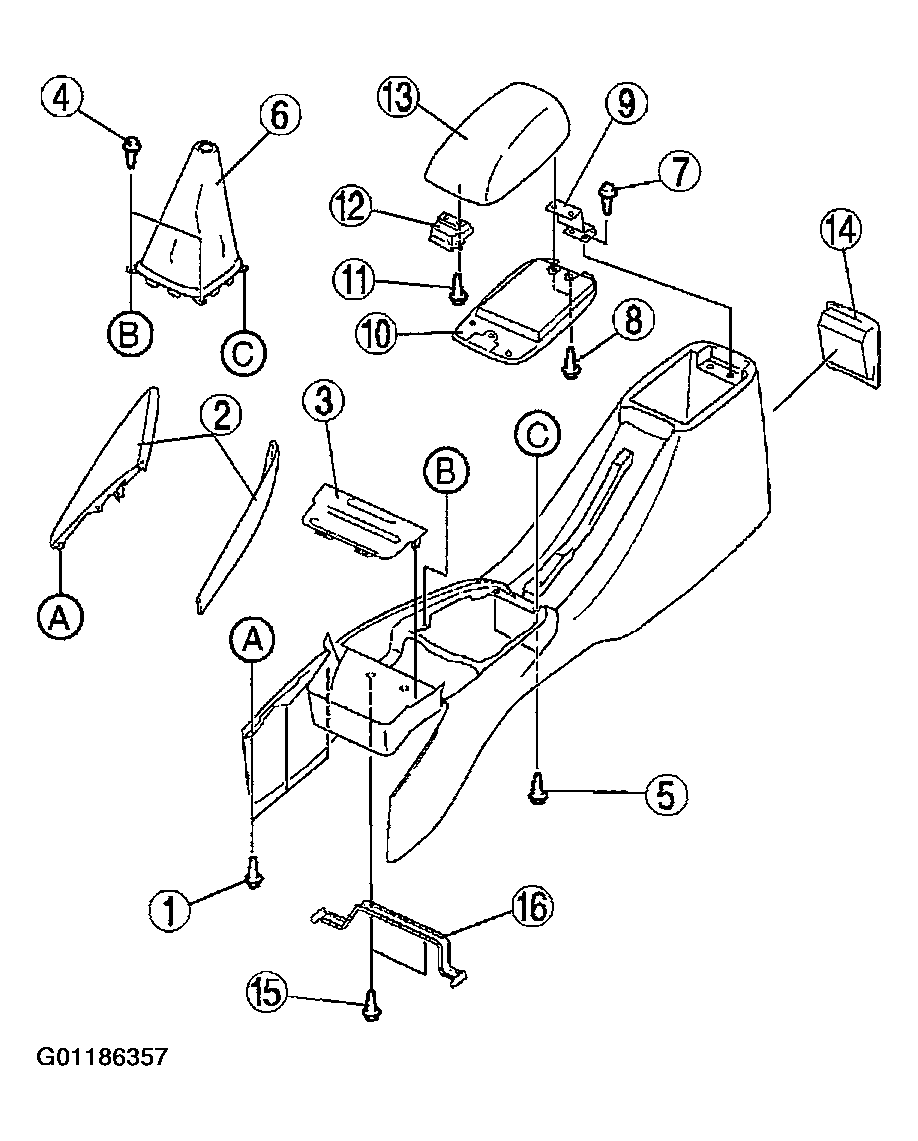

    Fig 2: Disassembly/Assembly Of Console (2 Of 2)
    G01186357Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
