Selector Lever Removal/Installation: Notes

1. Disconnect the negative battery cable.
2. Remove the center console.
3. Disconnect the brake switch connector.
4. Remove in the order indicated in the illustrations.
5. Install in the reverse order of removal.

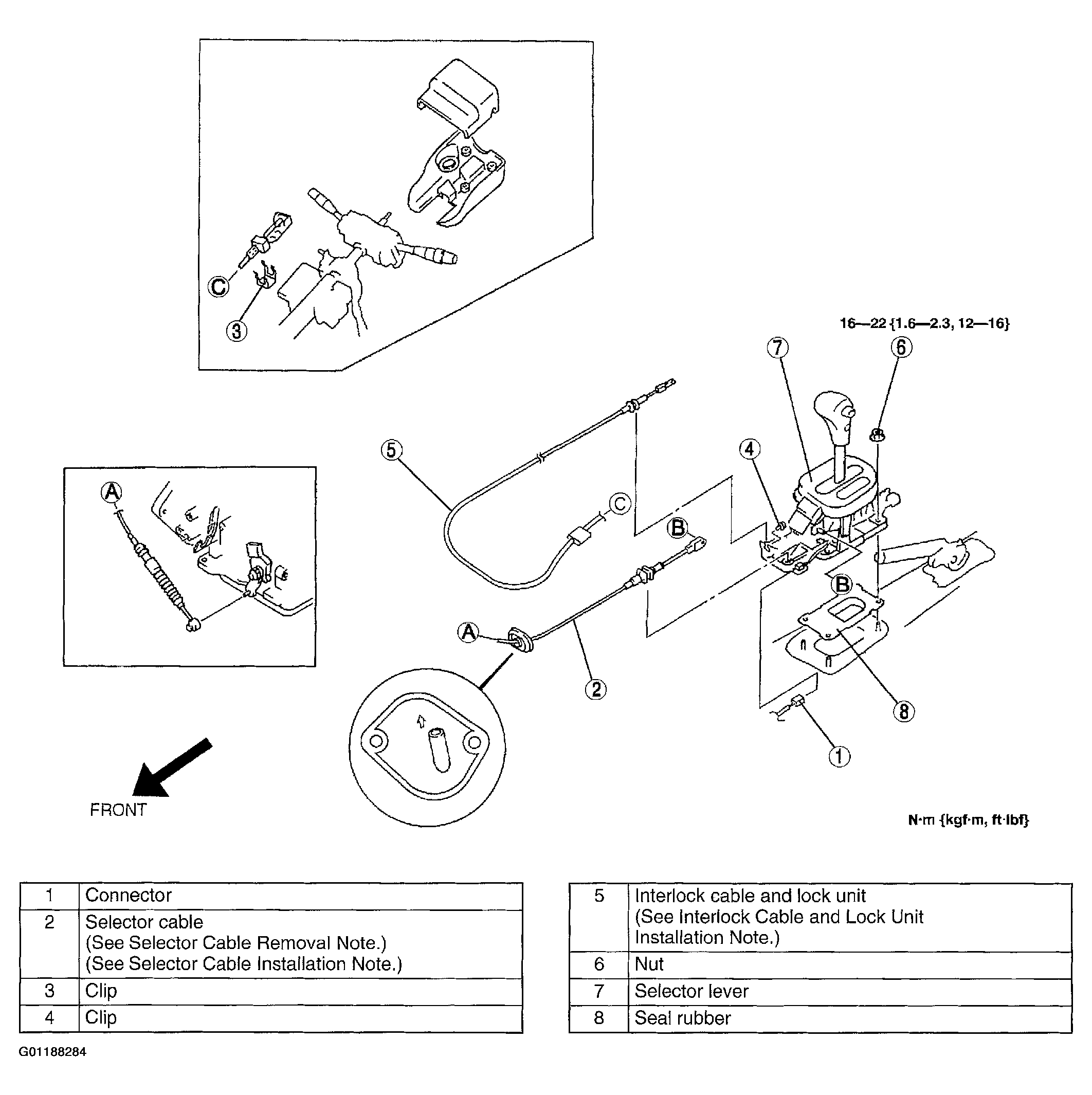

Fig 1: Removing/Installing Selector Lever, Selector & Interlock Cables (4SD)

Courtesy of MAZDA MOTORS CORP.

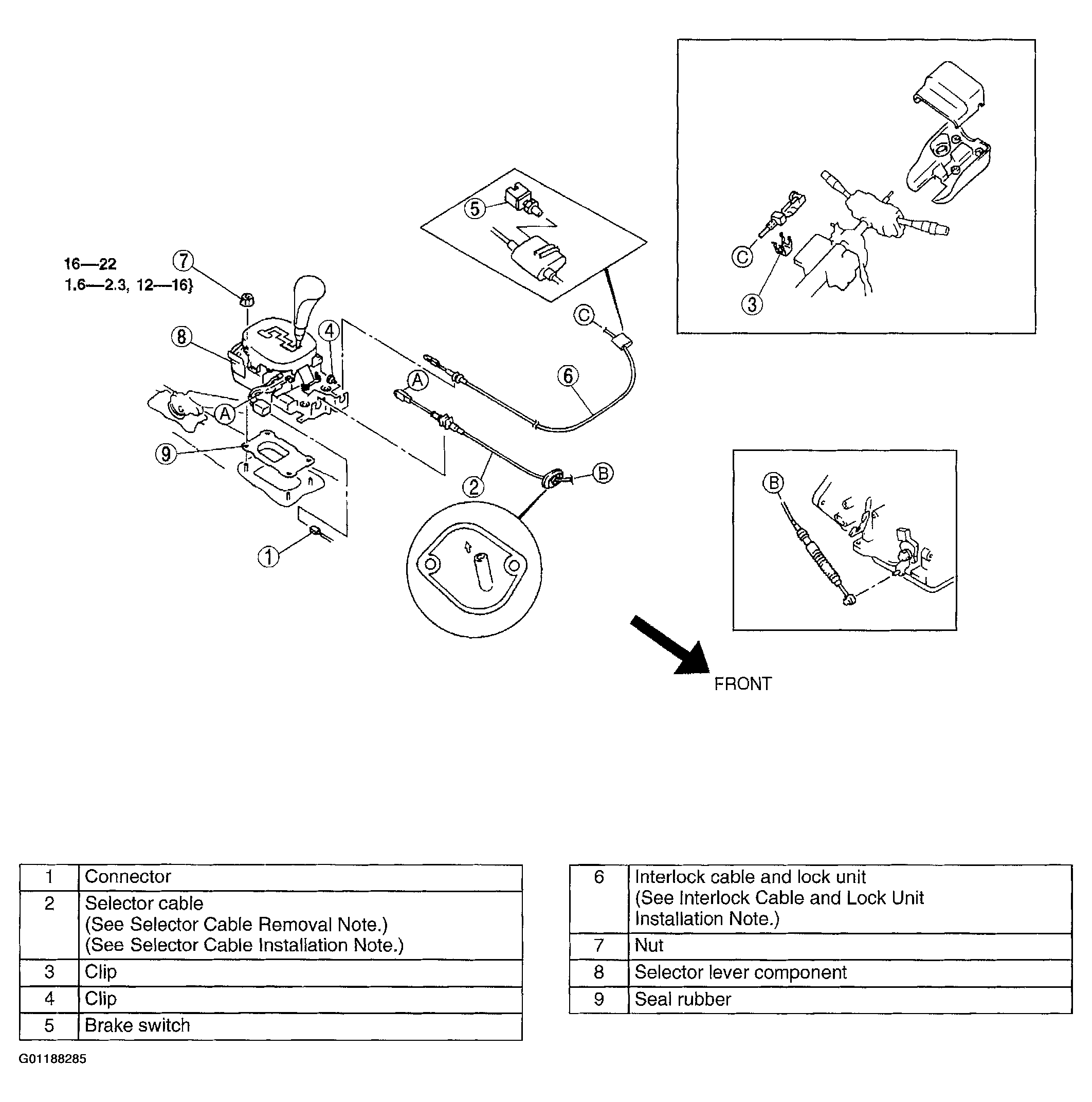

Fig 2: Removing/Installing Selector Lever, Selector & Interlock Cables (Sport AT)

Courtesy of MAZDA MOTORS CORP.
