Rear Power Window Regulator Disassembly/Assembly
>>
Power Window Motor Disassembly Note
Power Window Motor Disassembly Note
Make marks on the gear and the base before disassembling the power window motor.

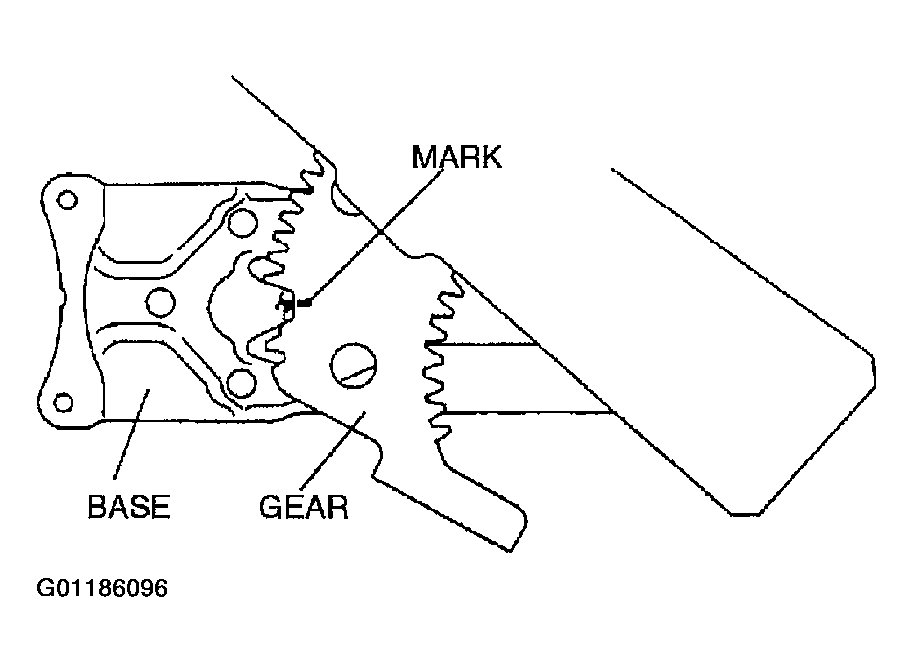

Fig 1: Identifying Gear & Base Marks
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
