PID/Data Monitor Table

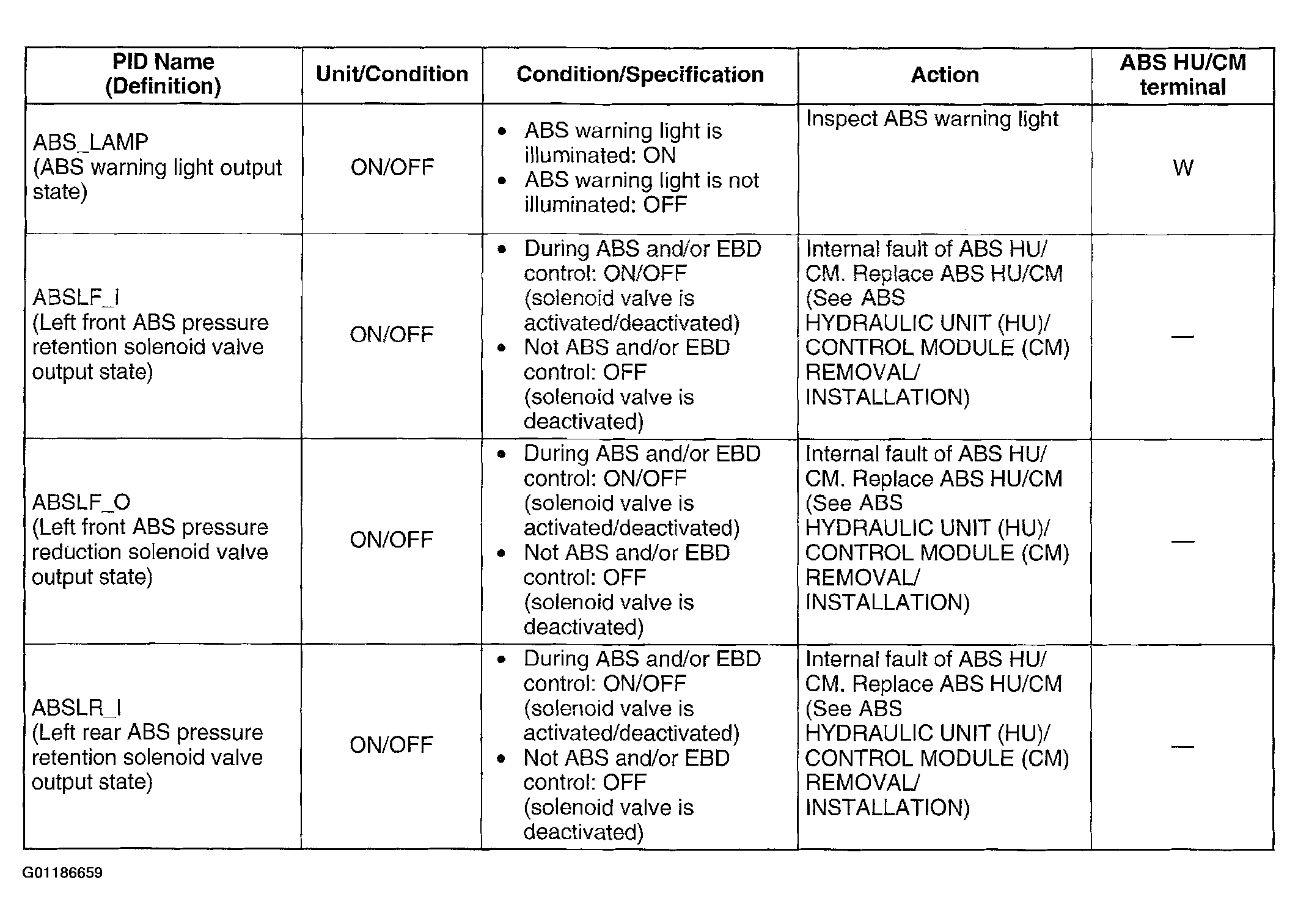

Fig 1: PID/data Monitor Table (1 Of 3)
G01186659Courtesy of MAZDA MOTORS CORP.

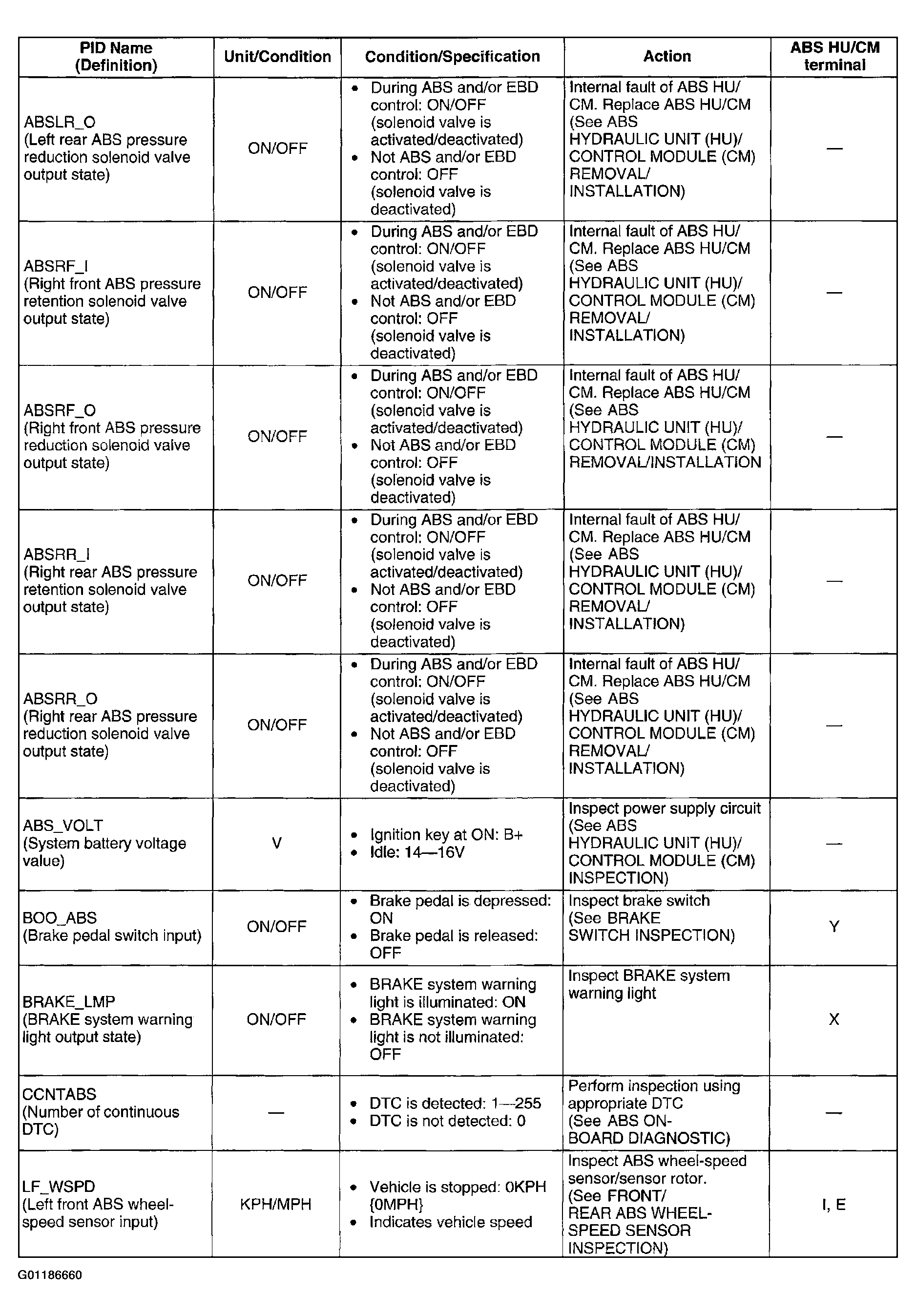

Fig 2: PID/data Monitor Table (2 Of 3)
G01186660Courtesy of MAZDA MOTORS CORP.

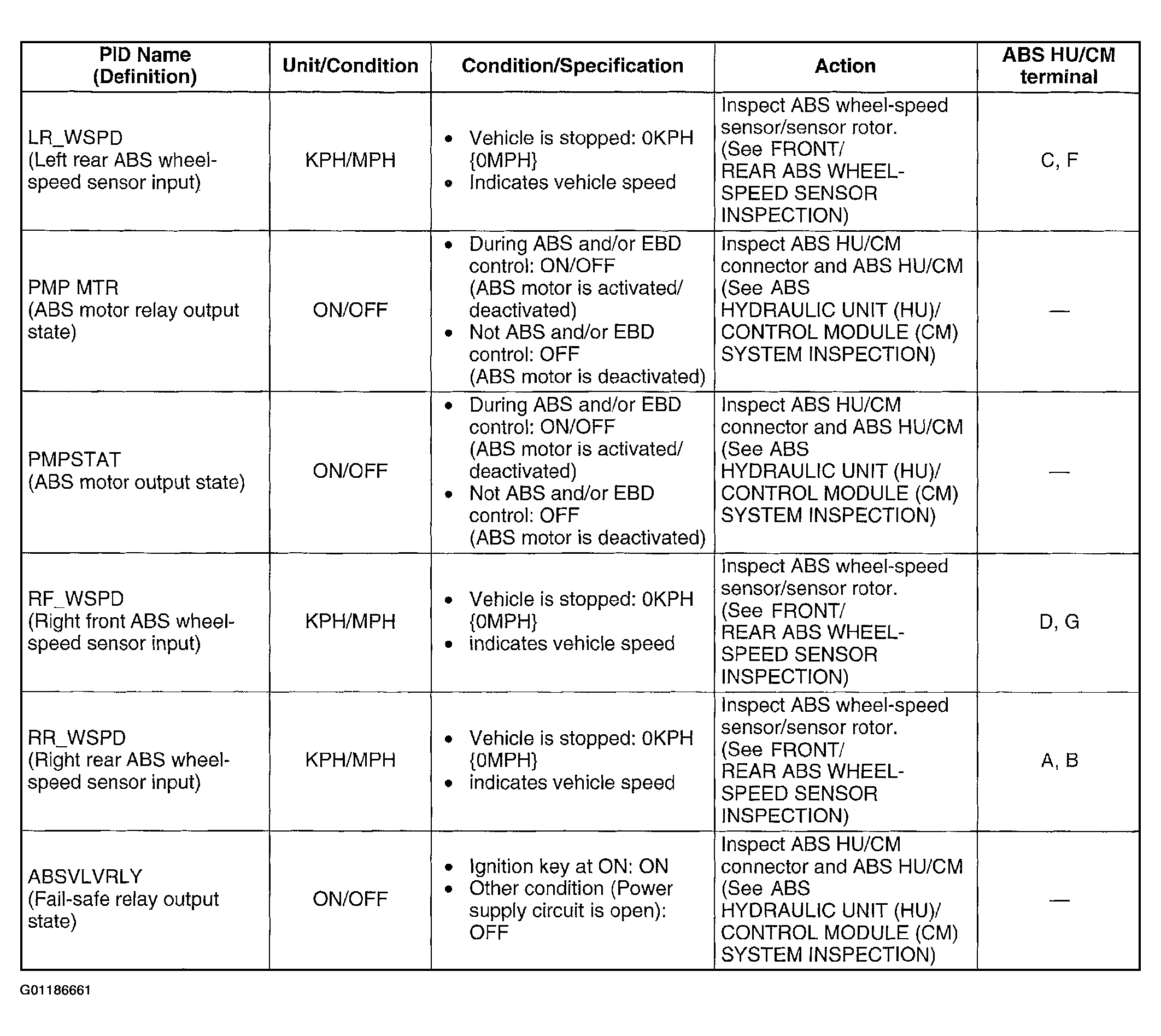

Fig 3: PID/data Monitor Table (3 Of 3)
G01186661Courtesy of MAZDA MOTORS CORP.
