Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

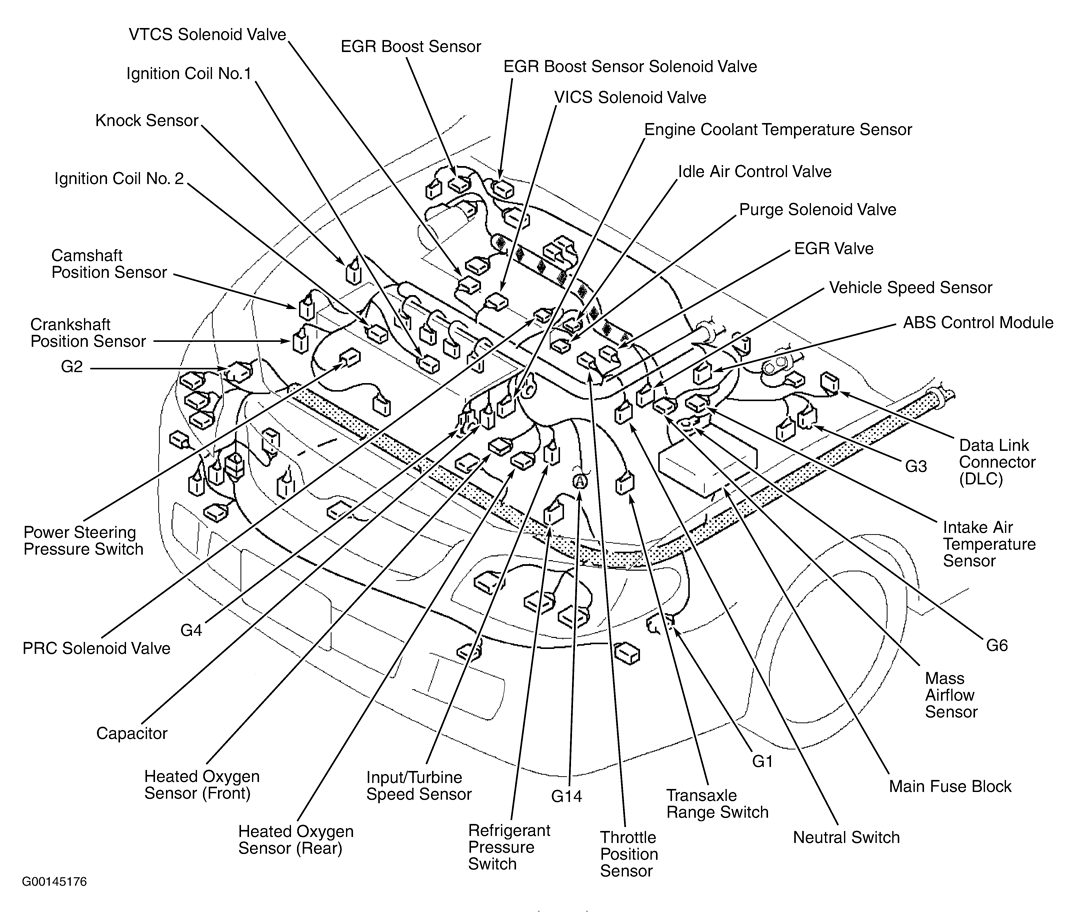

Fig 1: Engine Compartment
G00145176Courtesy of MAZDA MOTORS CORP.
Fig 2: Dash
G00145177Courtesy of MAZDA MOTORS CORP.
