Buckle Switch Inspection

  1. Disconnect the negative battery cable.
  2. Disconnect the buckle switch connector.
  3. Inspect for continuity between the buckle switch terminals using an ohmmeter.
    • If not as specified, replace the front buckle.

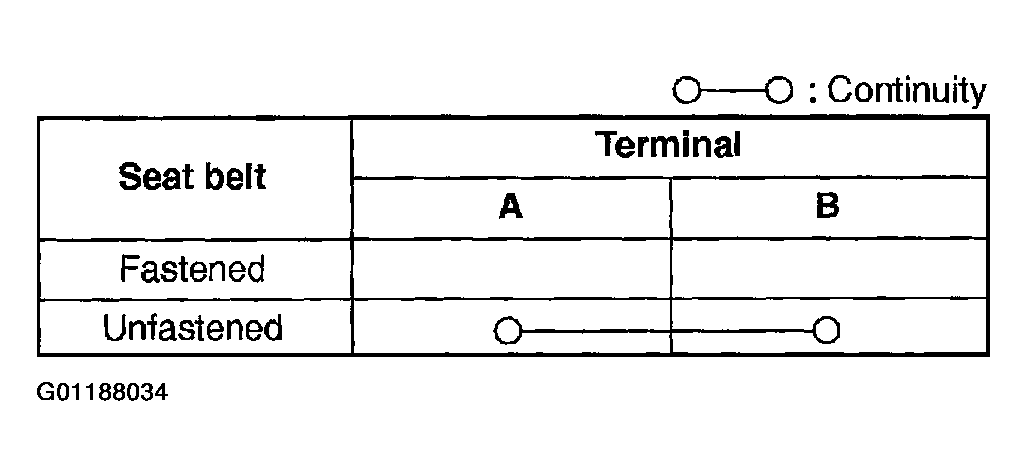

    Fig 1: Buckle Switch Continuity Check
    G01188034Courtesy of MAZDA MOTORS CORP.

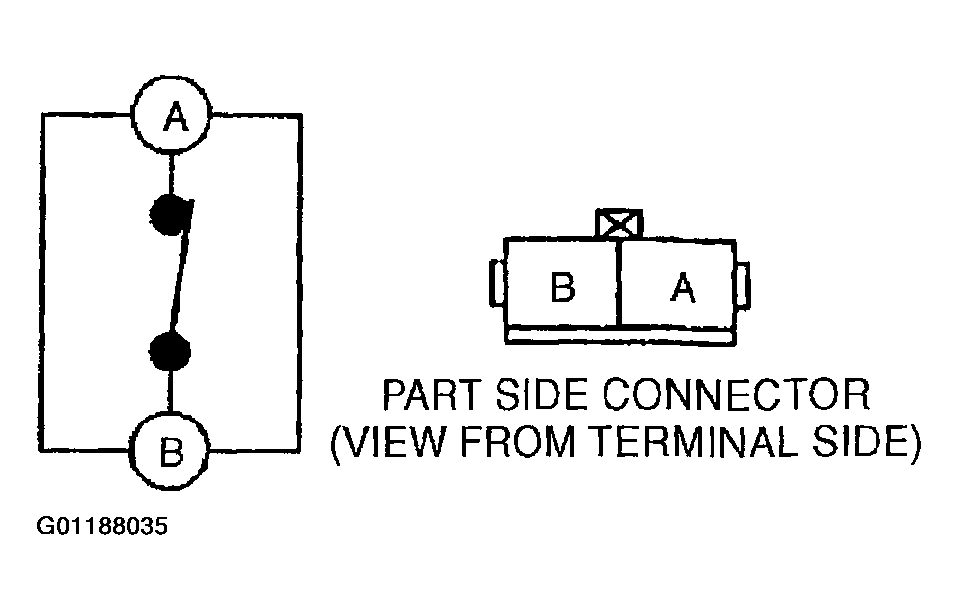

    Fig 2: Identifying Buckle Switch Terminals & Circuit
    G01188035Courtesy of MAZDA MOTORS CORP.
