Front Bumper Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Disconnect the front fog light connector.
  3. To remove the bumper reinforcement, remove the front bumper and washer tank, then remove the bumper reinforcement installation nuts.
  4. Remove in the order indicated in the illustrations.

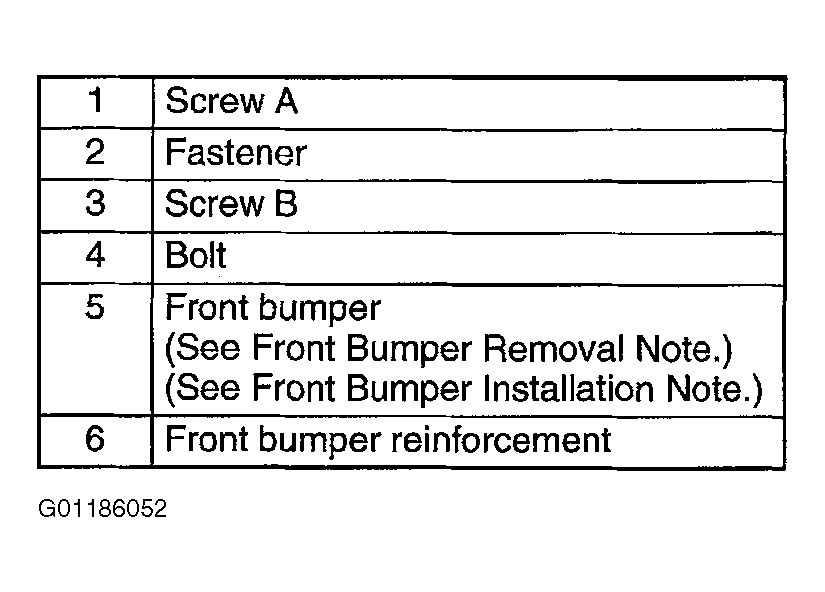

    Fig 1: Removing/Installing Front Bumper (1 Of 2)
    G01186052Courtesy of MAZDA MOTORS CORP.

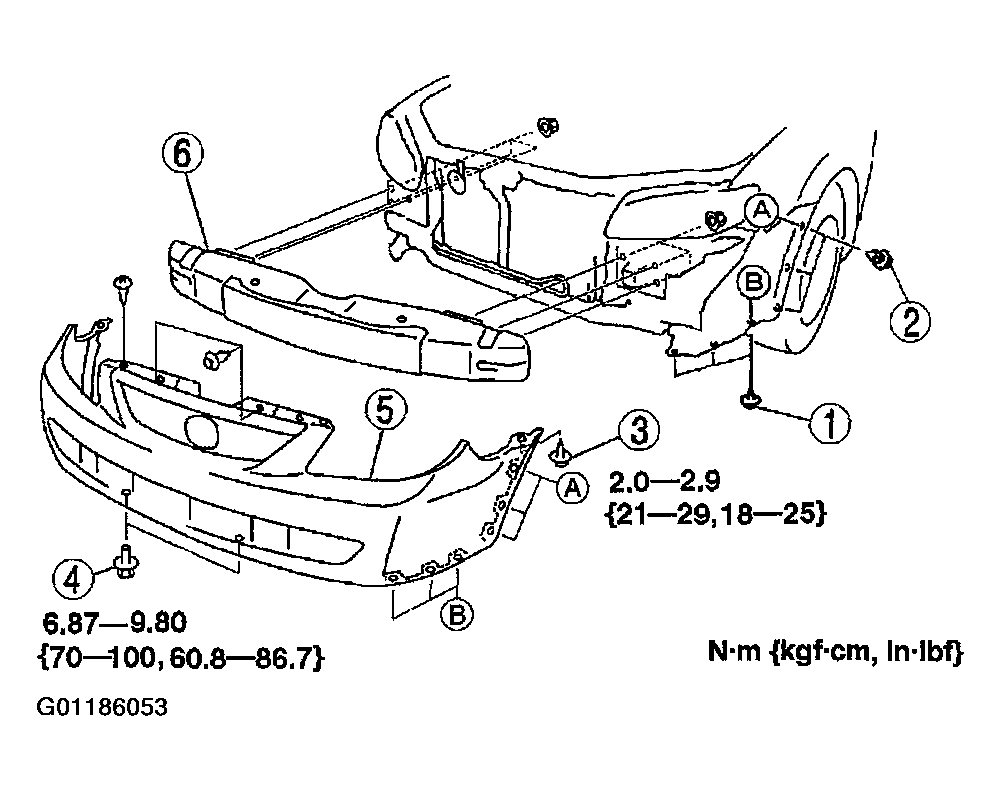

    Fig 2: Removing/Installing Front Bumper (2 Of 2)
    G01186053Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
  6. Adjust the front fog light aiming. See FRONT FOG LIGHT ADJUSTMENT .
