Oil Pan Assembly Note
Oil Pan Assembly Note
Apply a
2.0-3.0 mm {0.08-0.11 in}
bead of silicone sealant to the oil pan as shown.

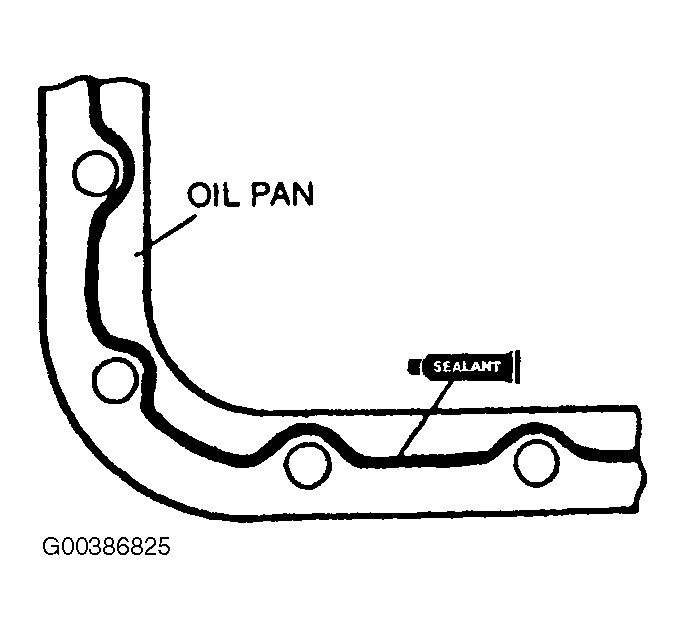

Fig 1: Identifying Oil Pan Sealant Application
Courtesy of MAZDA MOTORS CORP.
