Rear Cover Assembly Note

  1. Apply clean engine oil to the oil seal.
  2. Push the oil seal slightly in by hand.
  3. Press the oil seal in evenly by using Seal Drivers (49 E301 144 and 49 G033 107A) and press.

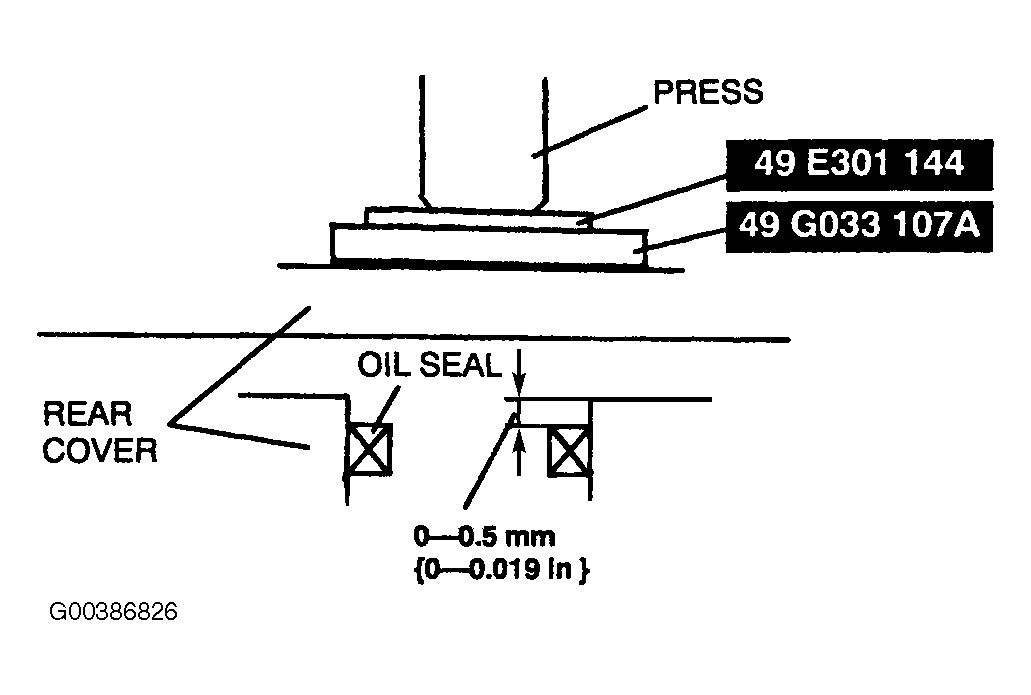

    Fig 1: Installing Rear Cover Oil Seal
    G00386826Courtesy of MAZDA MOTORS CORP.
  4. Apply a 2.0-3.0 mm {0.08-0.11 in}  bead of silicone sealant to the rear cover as shown.

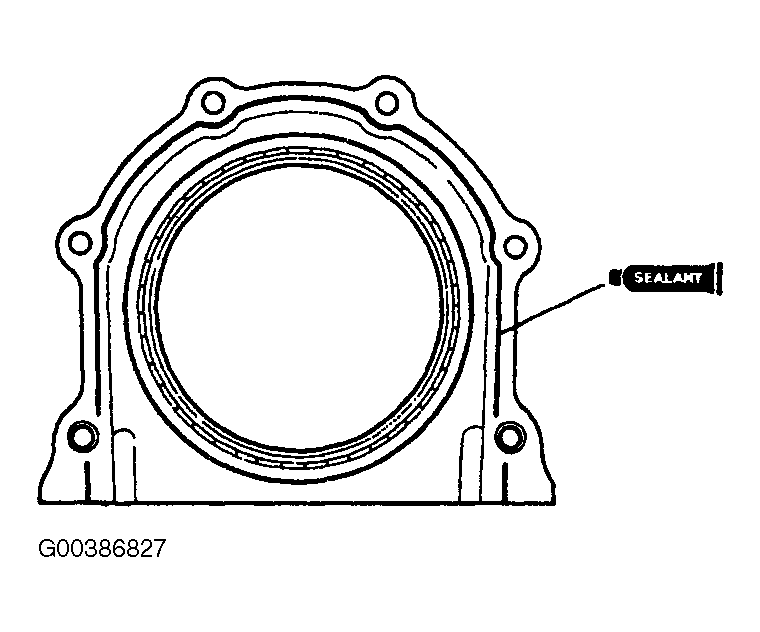

    Fig 2: Applying Sealant To Rear Cover
    G00386827Courtesy of MAZDA MOTORS CORP.
