Oil Pan Disassembly Note

  1. Remove the oil pan mounting bolts.
    2. CAUTION: DO NOT force a prying tool between the oil pan upper block and the oil pan which may damage the contact surfaces.
  2. Remove sealant from the bolt threads.
  3. Screw an oil pan bolt into the weld nut to make a small gap between the oil pan upper block and the oil pan.

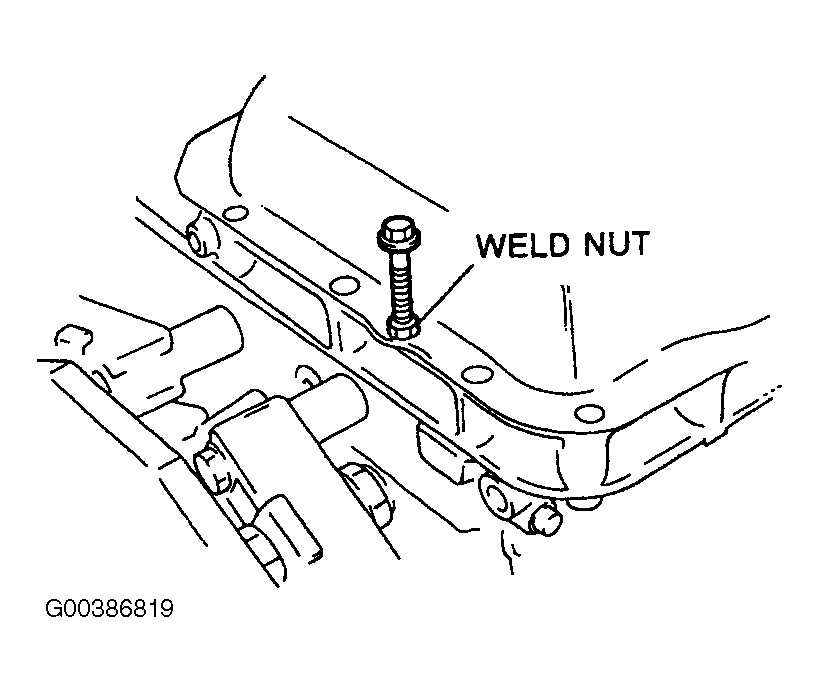

    Fig 1: Identifying Oil Pan Weld Nut
    G00386819Courtesy of MAZDA MOTORS CORP.
  4. Remove the oil pan by using the separator tool.

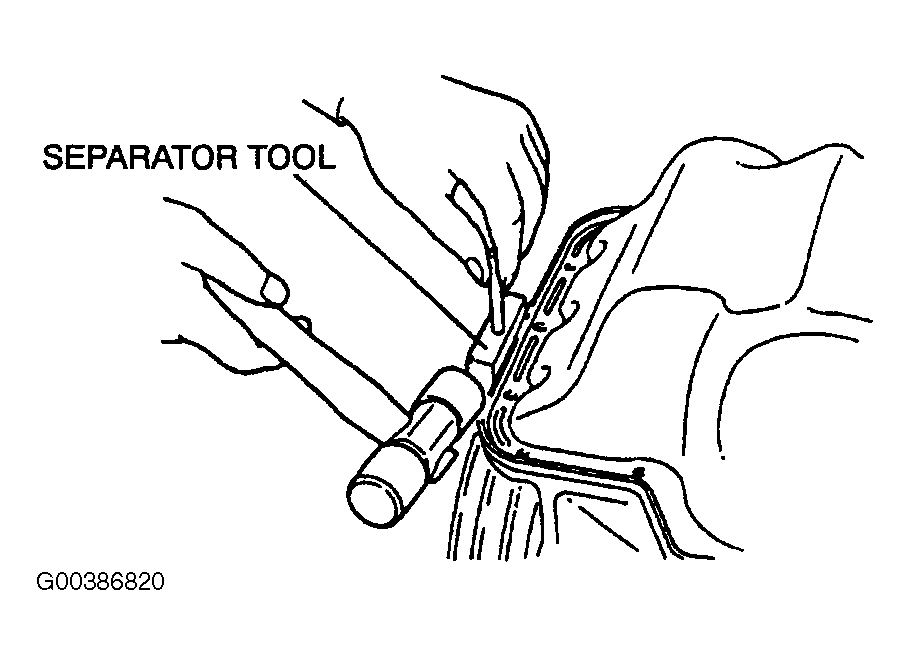

    Fig 2: Removing Oil Pan Using Separator Tool
    G00386820Courtesy of MAZDA MOTORS CORP.
