Oil Pan Upper Block Disassembly Note

  1. Remove 2 bolts on the rear of the cylinder block.
  2. Loosen the oil pan upper block bolts in 2 or 3 steps in the order shown.

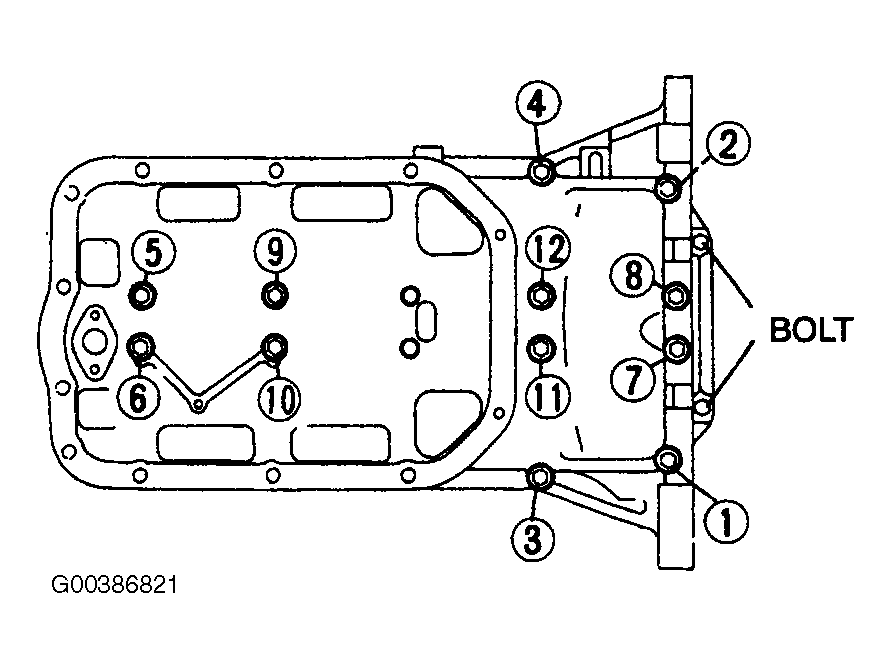

    Fig 1: Oil Pan Upper Block Bolt Loosening Sequence
    G00386821Courtesy of MAZDA MOTORS CORP.
  3. Remove the oil pan upper block by using the separator tool.

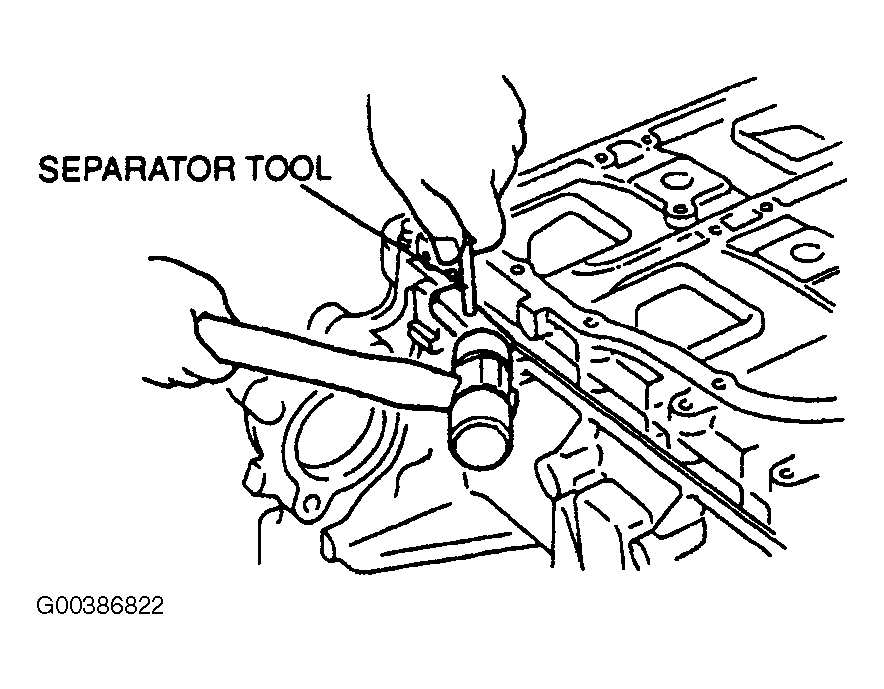

    Fig 2: Removing Oil Pan Upper Block Using Separator Tool
    G00386822Courtesy of MAZDA MOTORS CORP.
