Cylinder Block Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the illustration. Refer to DISASSEMBLY NOTES .

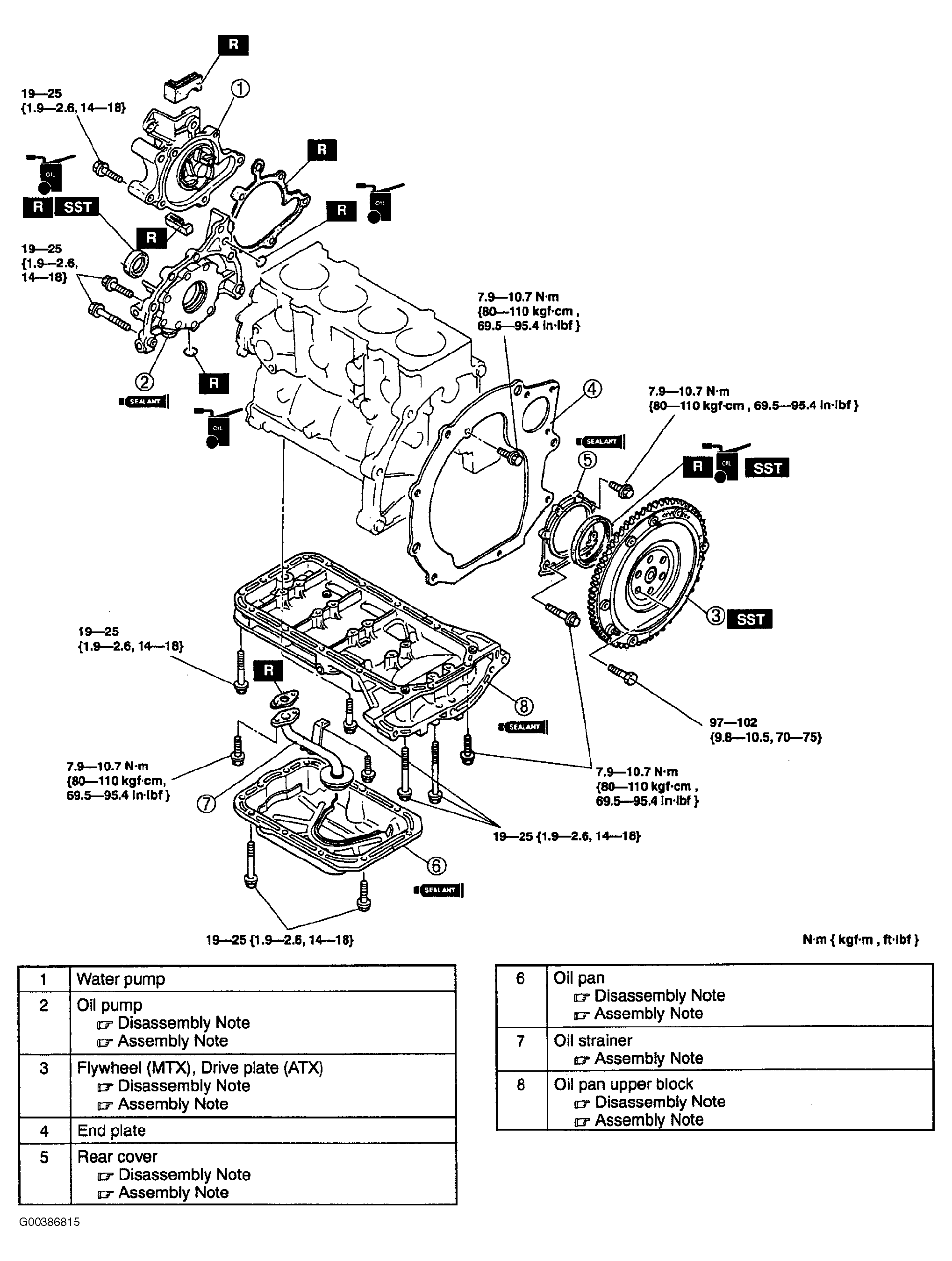

    Fig 1: Disassembling/Assembling Cylinder Block
    G00386815Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly. Refer to ASSEMBLY NOTES .


  1. Disassemble in the order indicated in the illustration. Refer to DISASSEMBLY NOTES .

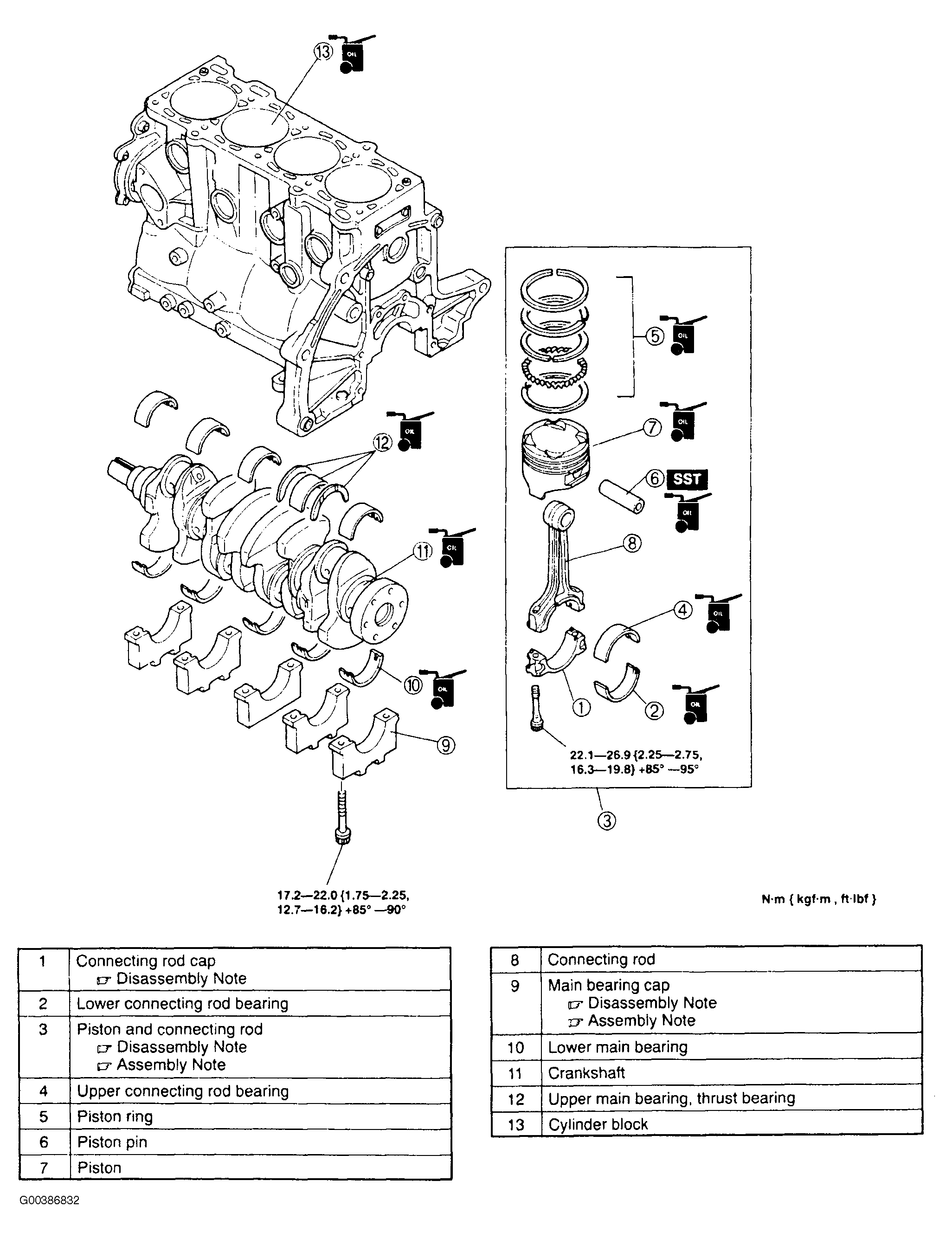

    Fig 1: Disassembling/Assembling Cylinder Block
    G00386832Courtesy of MAZDA MOTORS CORP.
  2. Reassembly in the reverse order of disassembly. Refer to ASSEMBLY NOTES .
