Piston Inspection: Notes

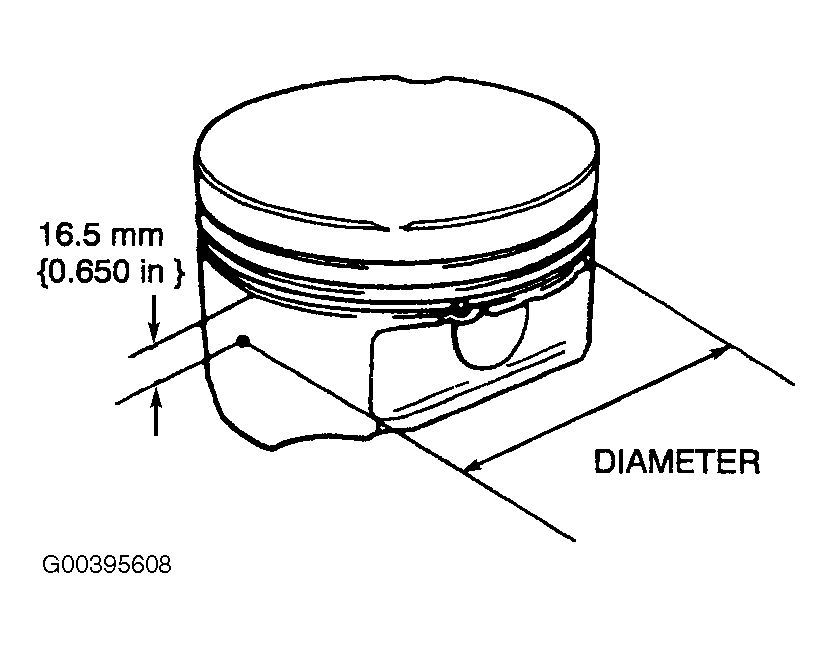

- Measure the outer diameter of each piston at a right angle (90 degrees) to the piston pin, 16.5 mm {0.650} below the oil ring groove lower edge.
PISTON DIAMETER SPECIFICATIONS
| Size - In. (mm) | Diameter - In. (mm) |
|---|---|
| Standard | 3.2659-3.2667 (82.953-82.975) |
| 0.01 (0.25) Oversize | 3.2758-3.2765 (83.203-83.225) |
| 0.02 (0.50) Oversize | 3.2856-3.2864 (83.453-83.475) |
