Valve Guide Installation

Assemble SSTs so that depth "L" is as specified.
Depth L

13.5-14.1 mm {0.532-0.555 in}

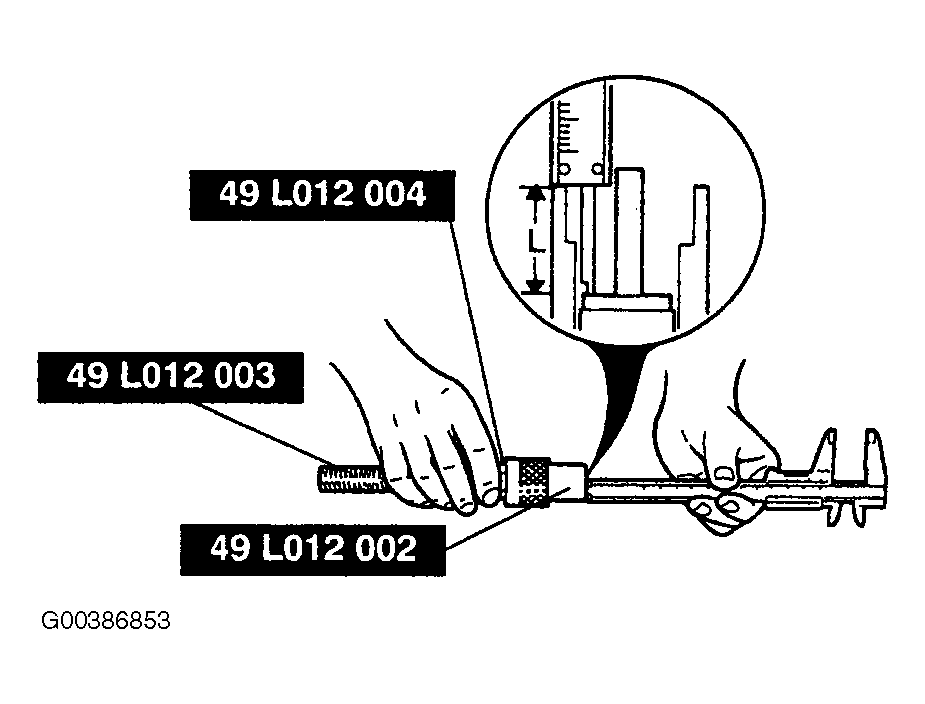

Fig 1: Setting Up Valve Guide Installer
Courtesy of MAZDA MOTORS CORP.
Tap the valve guide in from the side opposite the combustion chamber until the SST contacts the cylinder head.
Standard Height

13.5-14.1 mm {0.532-0.555 in}
Verify that the valve guide projection height (dimension "A") is within specification.
