Roll Damper Installation Note

  1. Assemble the rod and roll damper as shown in the illustration.

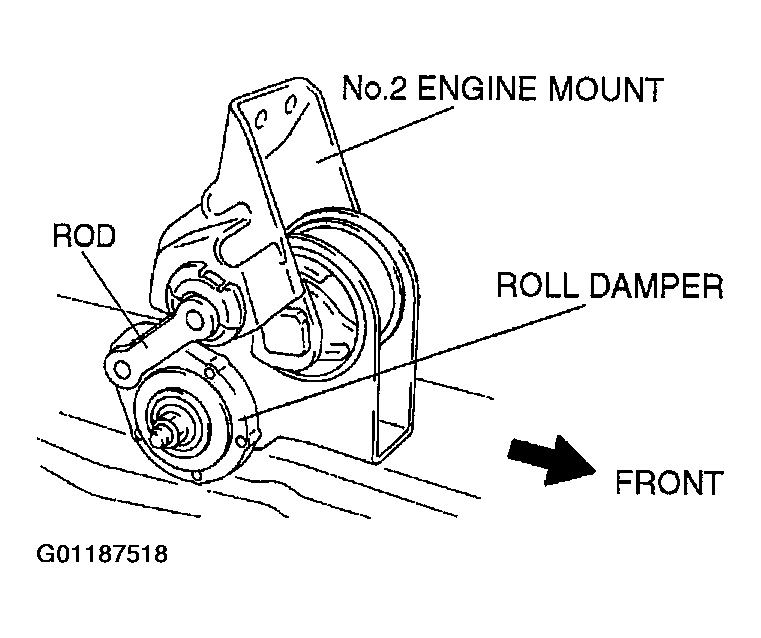

    Fig 1: Identifying Roll Damper Components
    G01187518Courtesy of MAZDA MOTORS CORP.
