Fuel Injector Installation Note

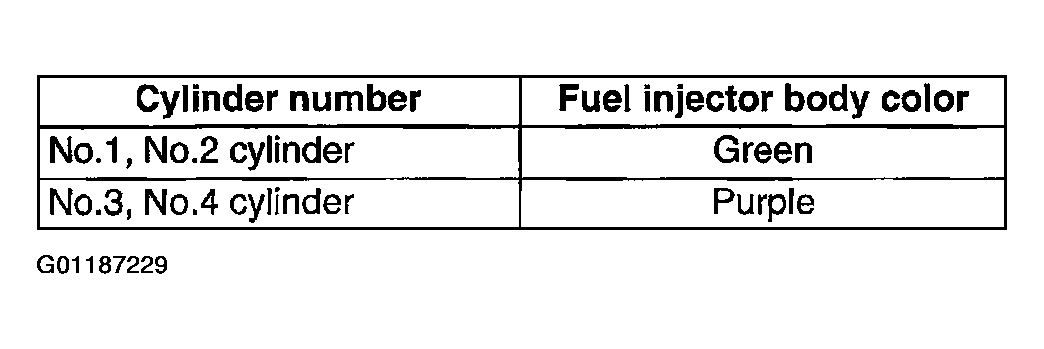

- Install each fuel injector as indicated in the illustration.
Courtesy of MAZDA MOTORS CORP.
- Use new fuel injector "O" rings.
- Apply a small amount of engine oil to the "O" rings and install them on the fuel distributor.
- Verify that the "O" rings and the fuel injector sealing surfaces are free of foreign material. Clean with gasoline if necessary.

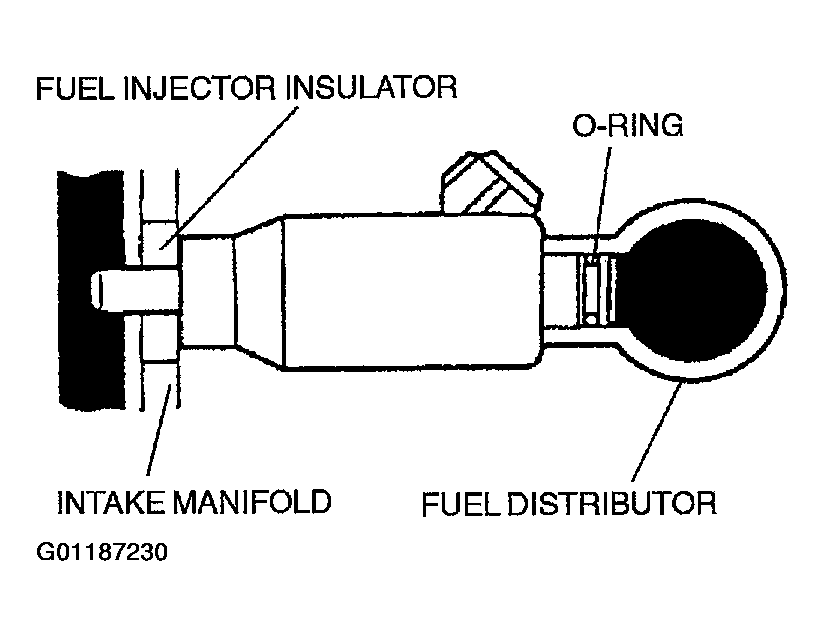

- Align the fuel injector notch with the fuel distributor and install the fuel injectors on the fuel distributor with a light twisting motion so that the "O" rings will not be folded.
Courtesy of MAZDA MOTORS CORP.
