Accelerator Cable Adjustment

Move the white locking tab "A" to the unlock position.

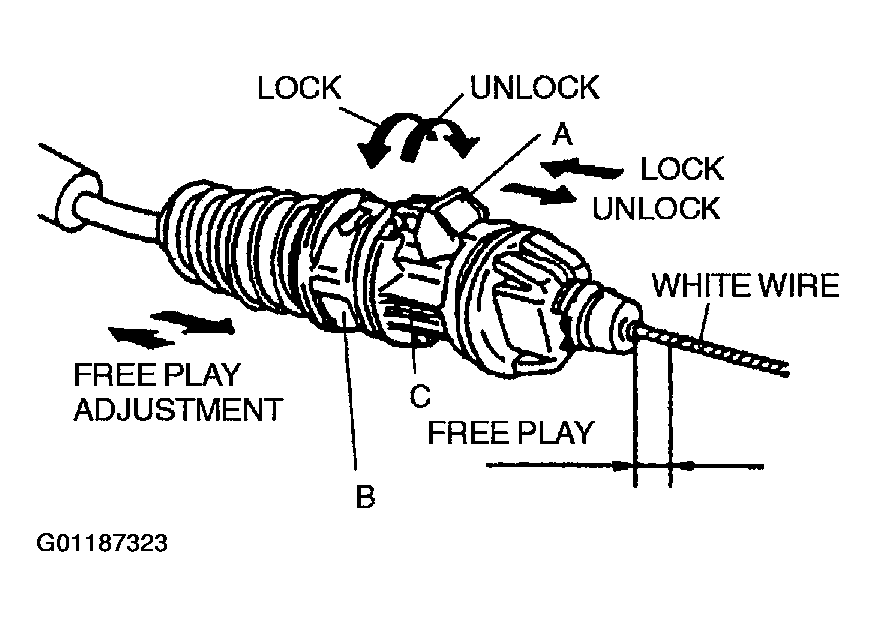

Fig 1: Adjusting Accelerator Cable
Courtesy of MAZDA MOTORS CORP.
Turn stopper B to the unlock position.
NOTE: Note If the stopper "B" will not be unlocked, it may be necessary to carefully bend the tab "C" out using a suitable tool.
To adjust the free play, push or pull the accelerator cable housing directly behind the spring.
Turn the stopper "B" to the lock position.
Free Play

1-3 mm {0.04-0.11 in}
Measure the throttle cable free play, making sure that it is within the specification.
Move the white locking tab "A" to the lock position.
Verify correct accelerator operation.
