Oil Pump Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the illustration.

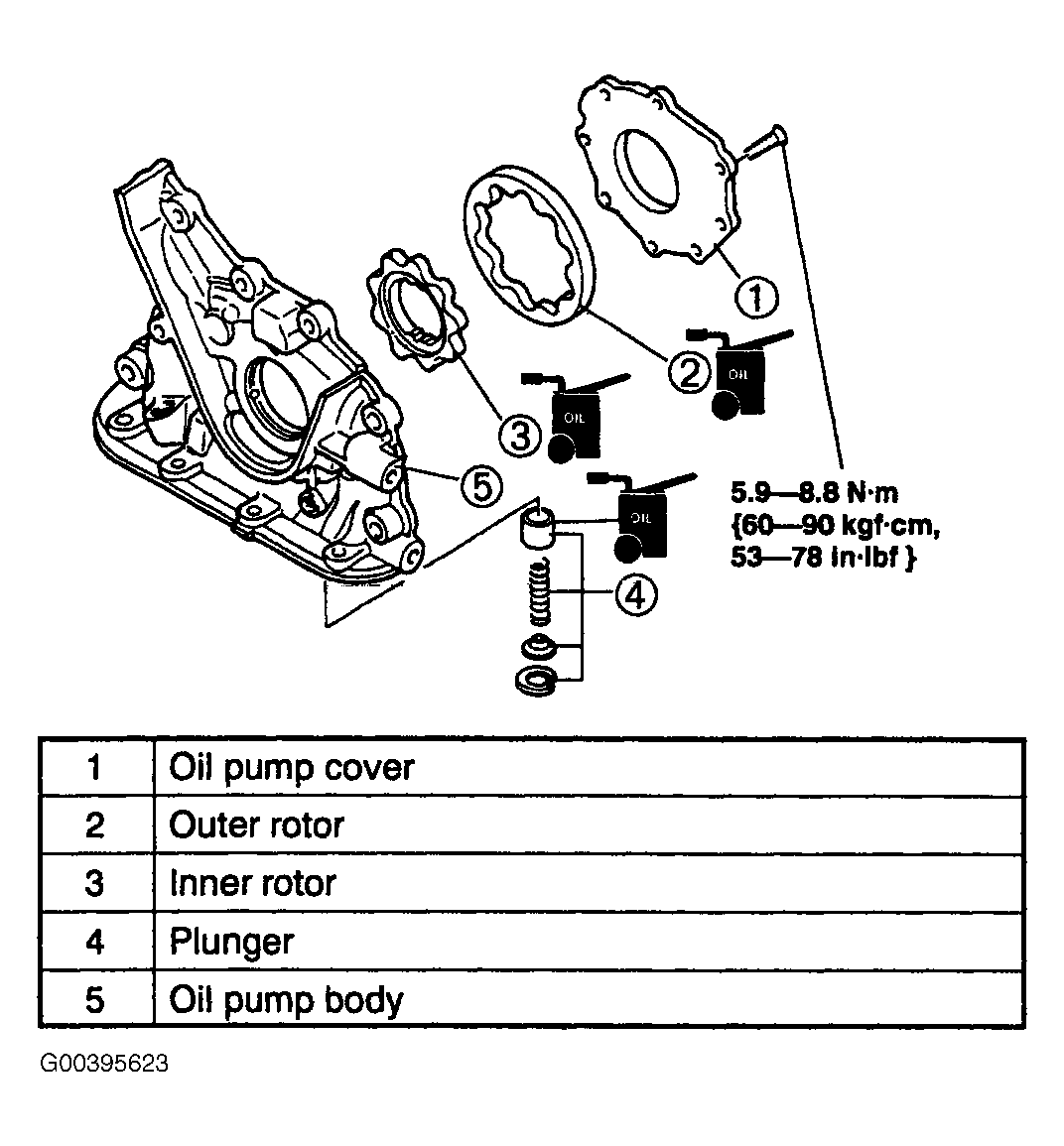

    Fig 1: Disassembling/Assembling Oil Pump
    G00395623Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
