Home >> Mazda >> 2002 >> Protege5 Automatic >> Repair and Diagnosis >> Steering >> Steering Column >> Steering Wheel And Column Removal/Installation >> Notes

Steering Wheel And Column Removal/Installation: Notes

  1. Remove in the order indicated in the illustration.
  2. Install in the reverse order of removal.

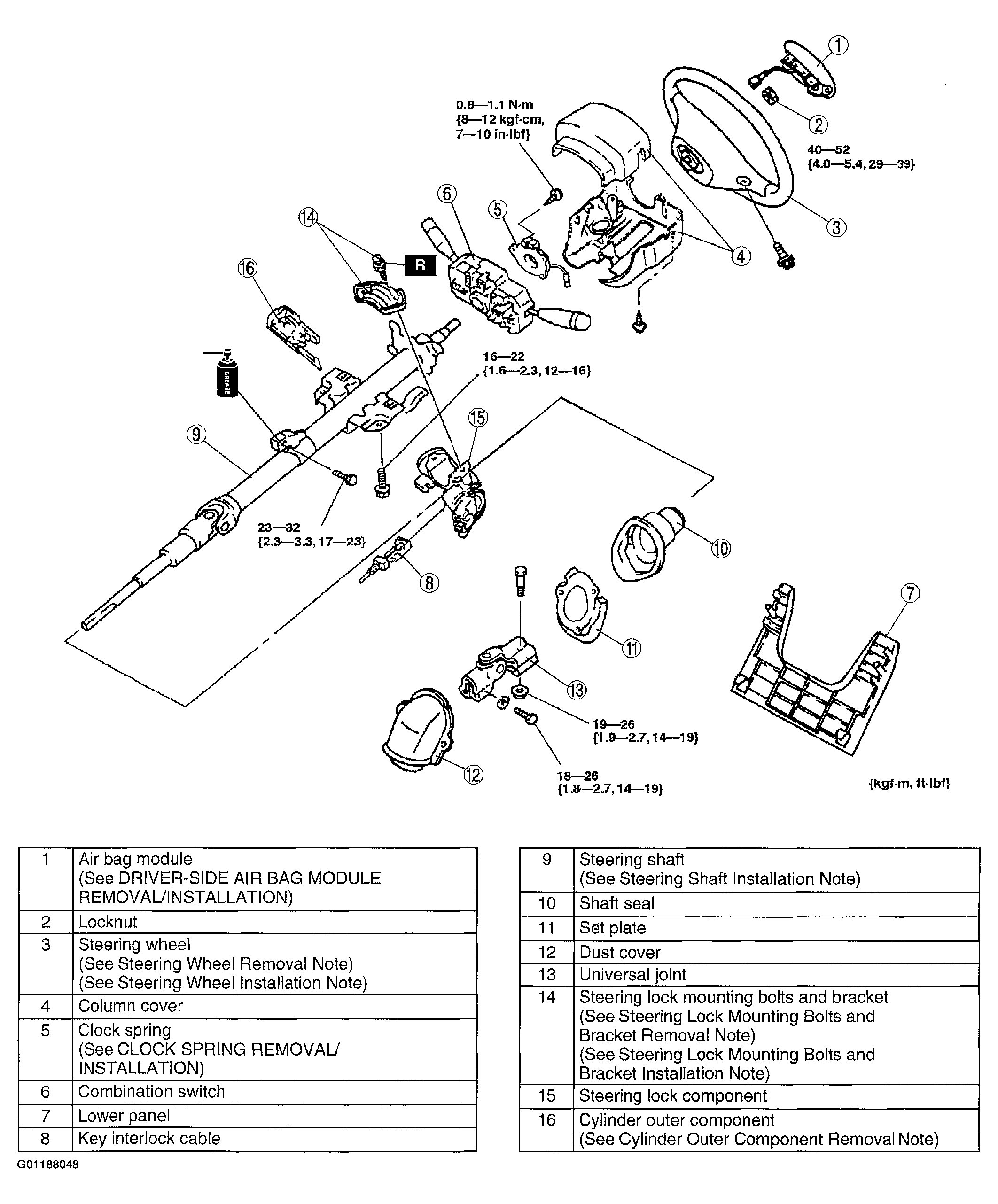

    3. Fig 1: Identifying Steering Column Components
    G01188048Courtesy of MAZDA MOTORS CORP.
