Home >> Mazda >> 2002 >> Protege5 Automatic >> Repair and Diagnosis >> Suspension >> Front Suspension >> Front Lower Arm >> Removal/Installation >> Notes

Front Lower Arm: Removal/Installation: Notes

  1. Remove in the order indicated in the illustration.

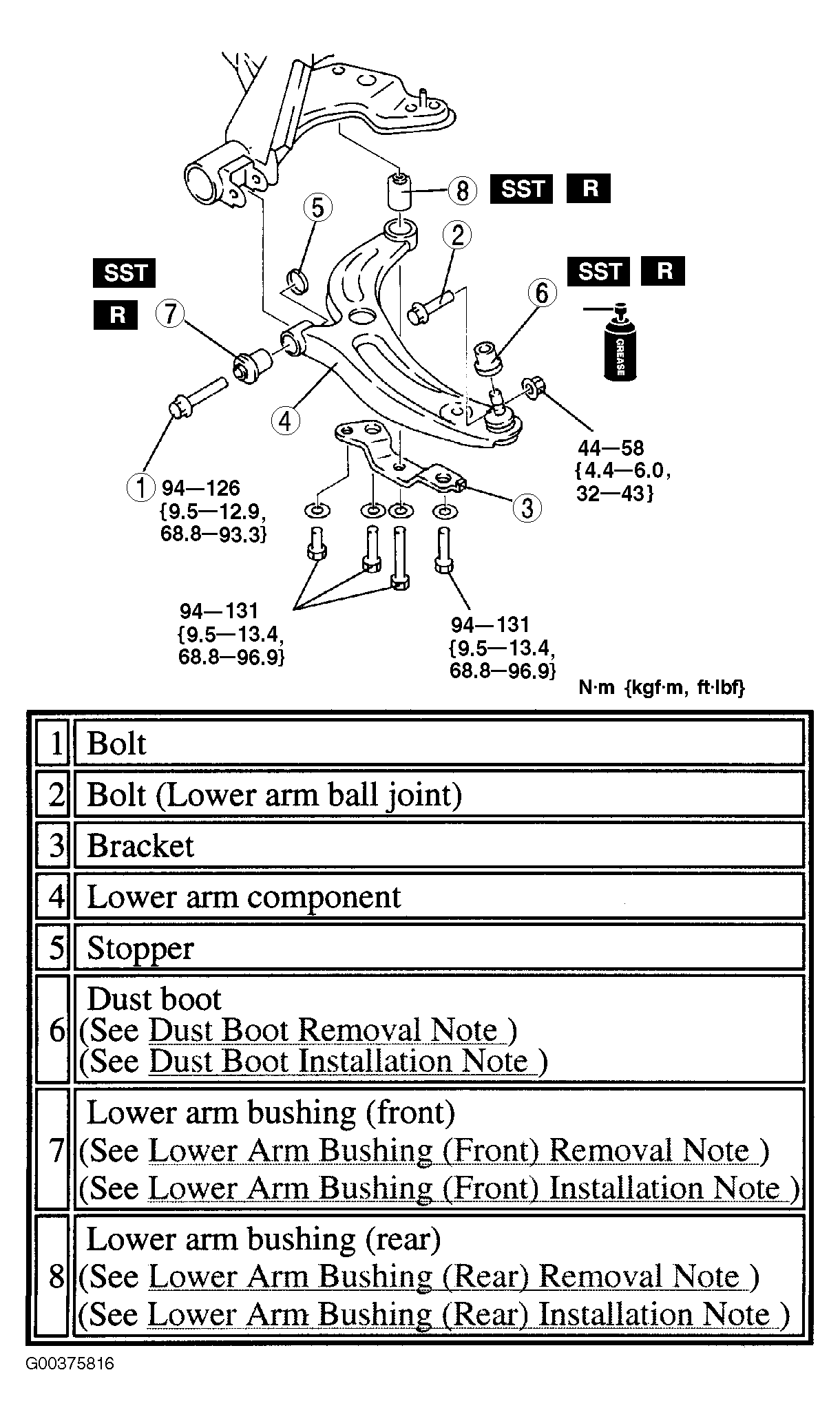

    Fig 1: Removing Front Lower Arm
    G00375816Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
