Home >> Mazda >> 2002 >> Protege5 Automatic >> Repair and Diagnosis >> Suspension >> Front Suspension >> Front Stabilizer >> Removal/Installation >> Notes

Front Stabilizer: Removal/Installation: Notes

  1. Remove the crossmember. See REMOVAL/INSTALLATION  .
  2. Remove in the order indicated in the illustration.

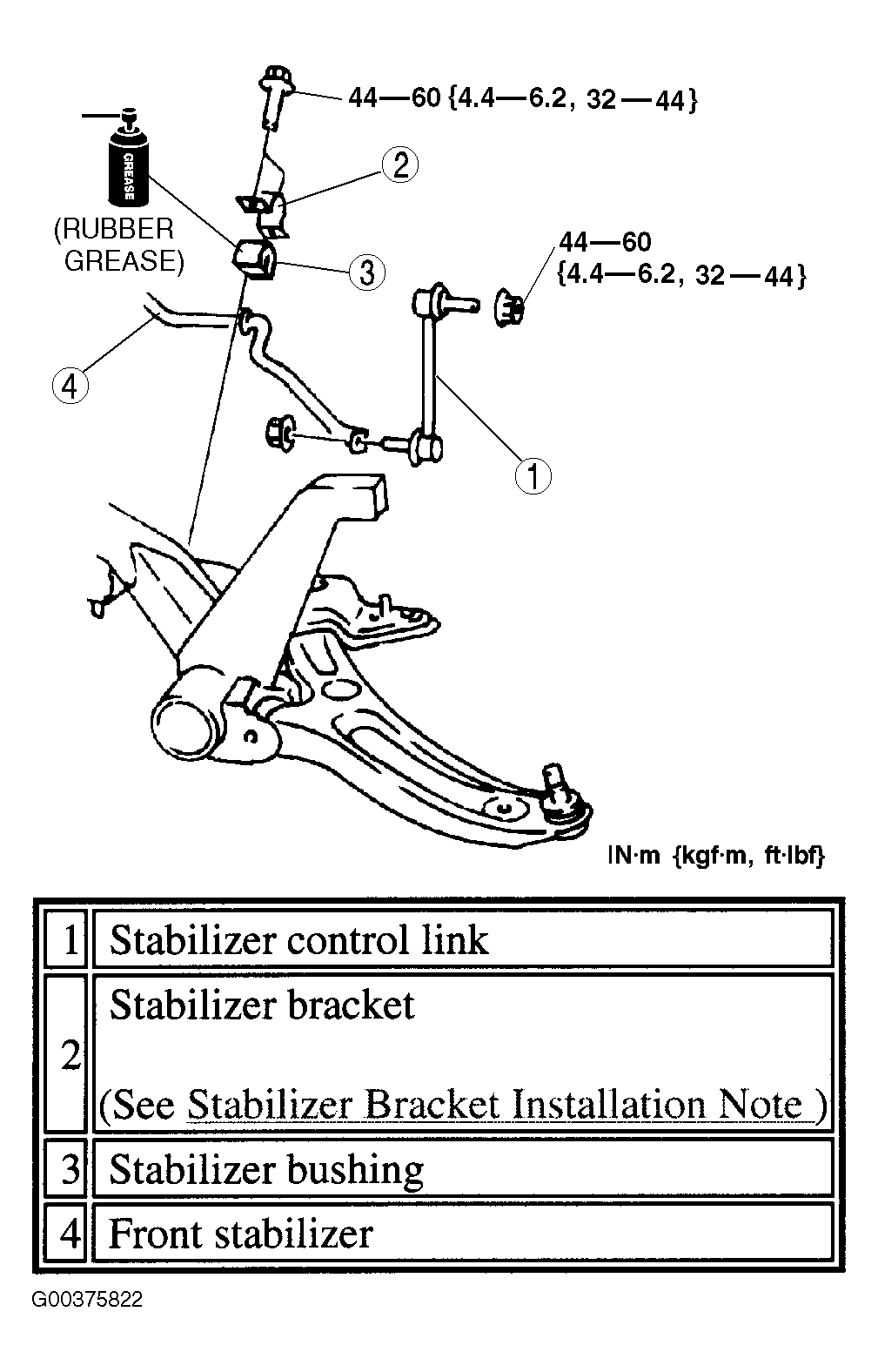

    Fig 1: Removing Front Stabilizer
    G00375822Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
  4. Inspect the front wheel alignment and adjust it if necessary.
