Stabilizer Bracket Installation Note

  1. Apply rubber grease to the inside surface of the stabilizer bushing.
  2. Align the bushing with the inside of positioning plate on the stabilizer bar.

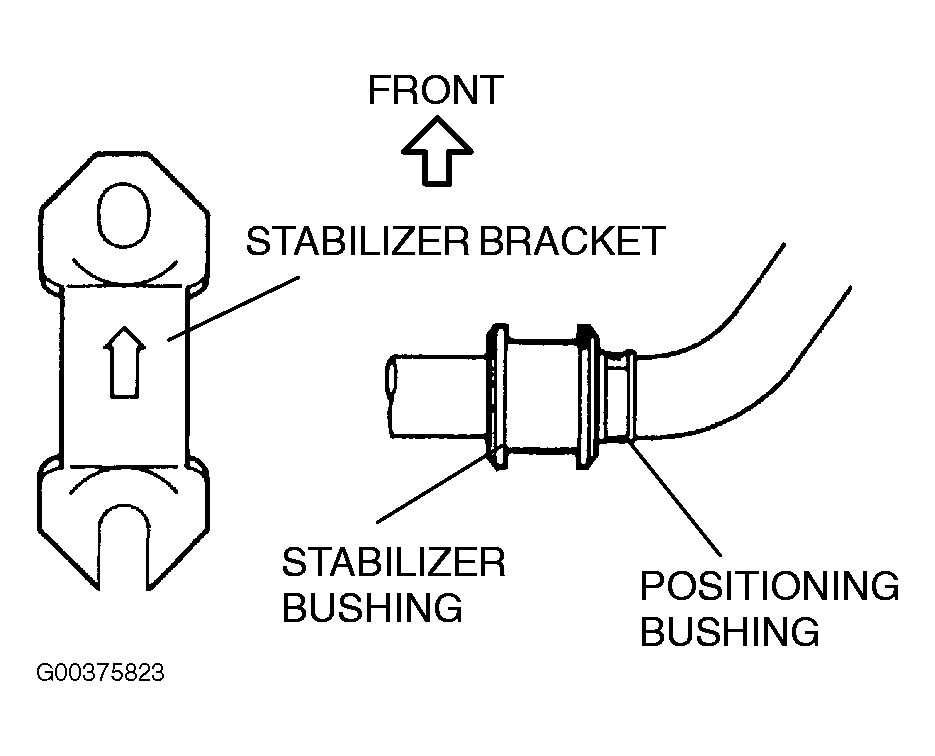

    Fig 1: Installing Stabilizer Bracket
    G00375823Courtesy of MAZDA MOTORS CORP.
  3. Install the stabilizer bracket.

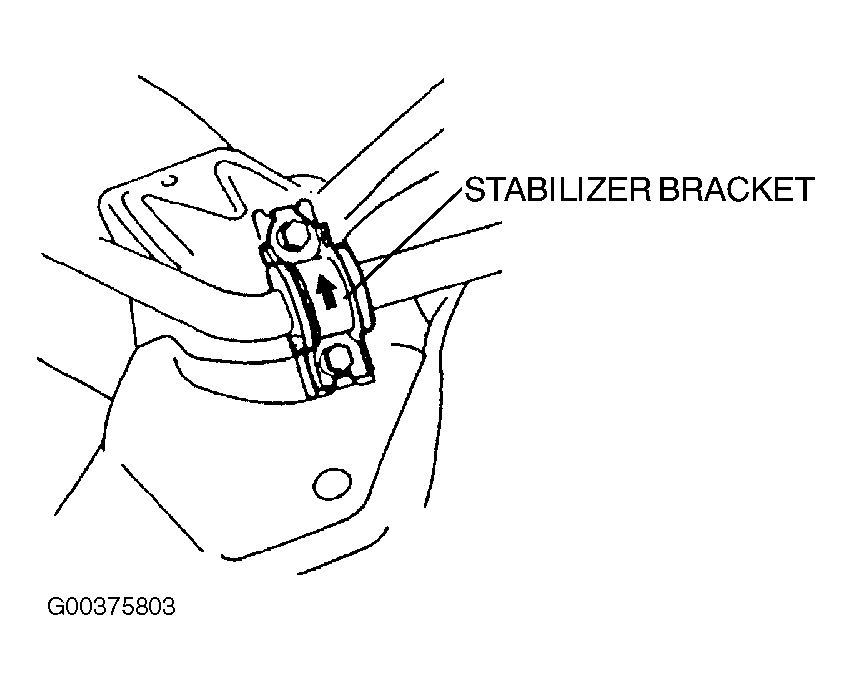

    Fig 2: Installing Stabilizer Bracket
    G00375803Courtesy of MAZDA MOTORS CORP.
