Total Toe-In Adjustment

Loosen the cam nut on the lateral link.
Turn the adjusting cam bolt as indicated to adjust the toe-in.

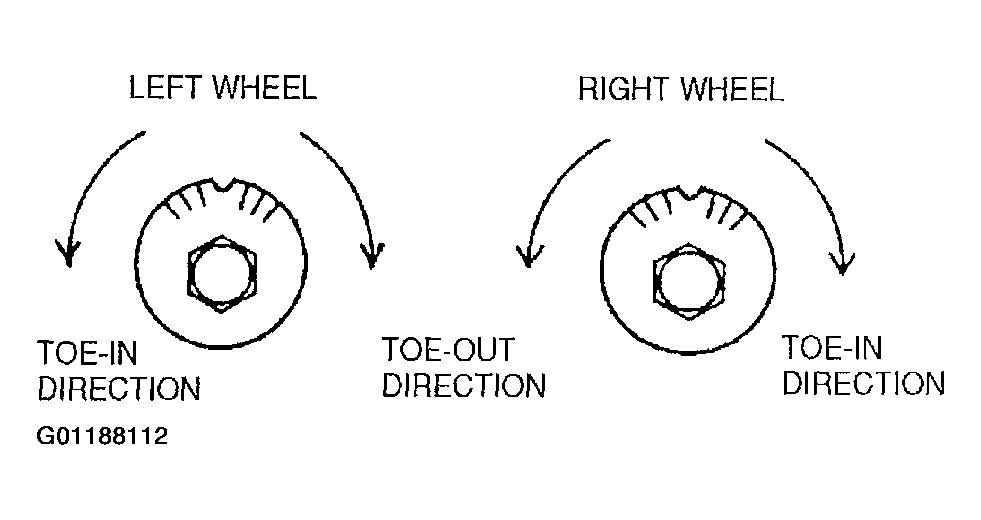

Fig 1: Toe-In Adjustment Results
Courtesy of MAZDA MOTORS CORP.

Fig 2: Adjusting Toe-In
Courtesy of MAZDA MOTORS CORP.
NOTE:
Note
- Turning the adjusting cam bolt one complete turn changes the toe-in about 3.0 mm {0.12 in} (0°18') .
Tighten the cam nut.
Tightening Torque

50-69 N.m {5.1-7.1 kgf.m, 37-50 ft.lbf}
