Anti-Lock Brake Control Module Parameter Identification (PID) Index

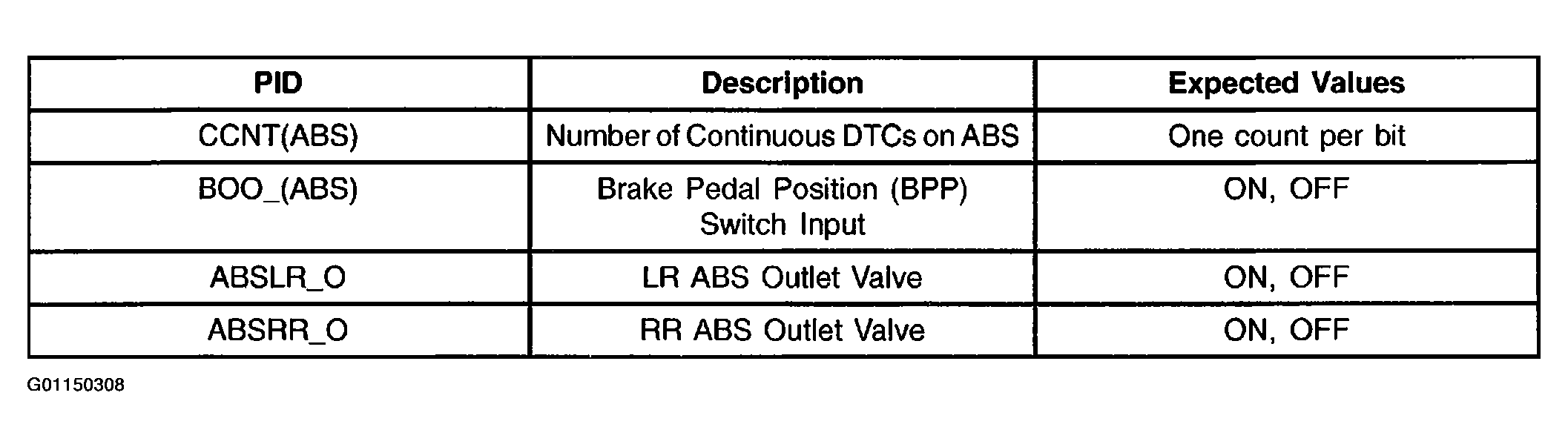

Fig 1: ABS Control Module Parameter Identification (PID) Index (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

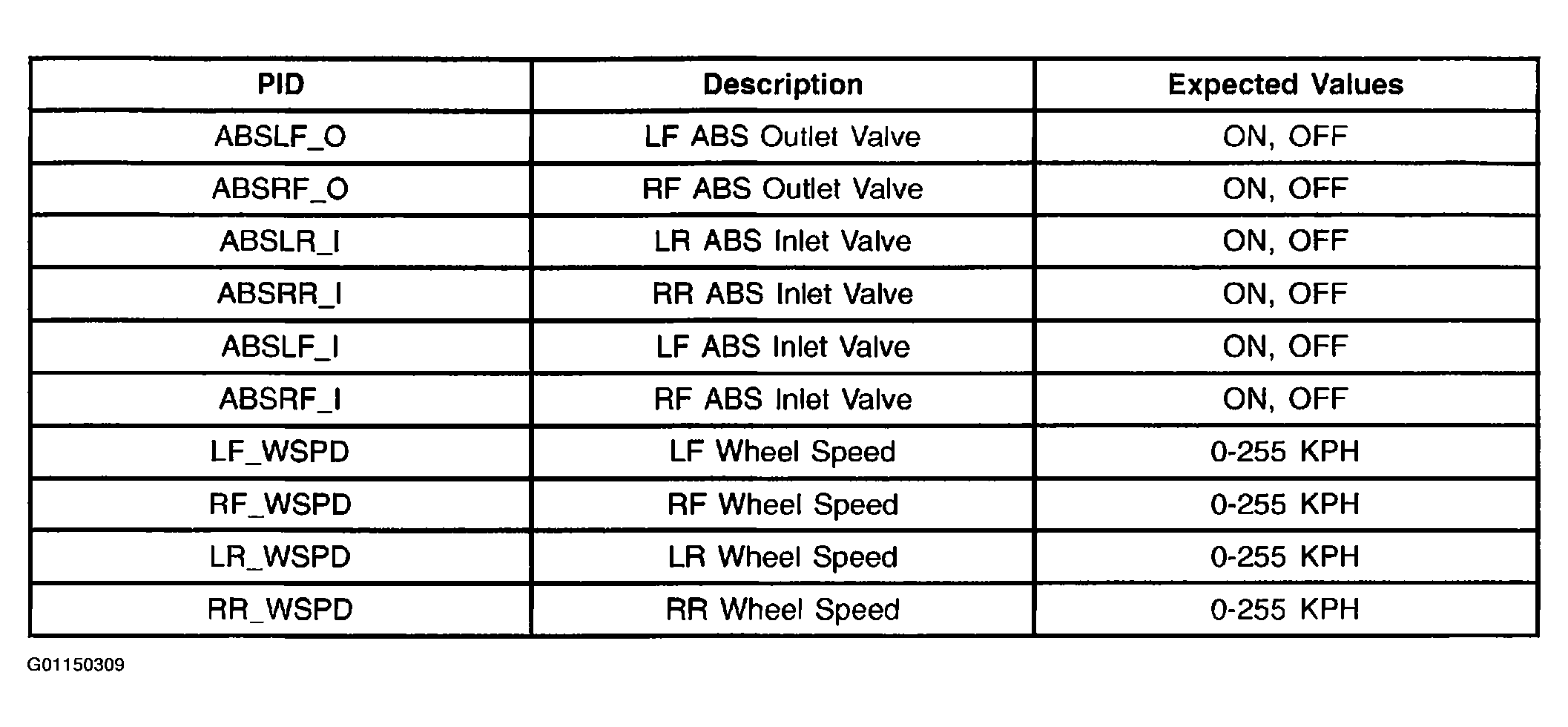

Fig 2: ABS Control Module Parameter Identification (PID) Index (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
