Home >> Mazda >> 2002 >> Tribute ES, FWD >> Repair and Diagnosis >> Brakes >> Anti-Lock/Traction Control System >> Pinpoint Tests >> Pinpoint Test 1: No Communication With The Module - Anti-Lock Brake Control Module

Pinpoint Test 1: No Communication With The Module - Anti-Lock Brake Control Module

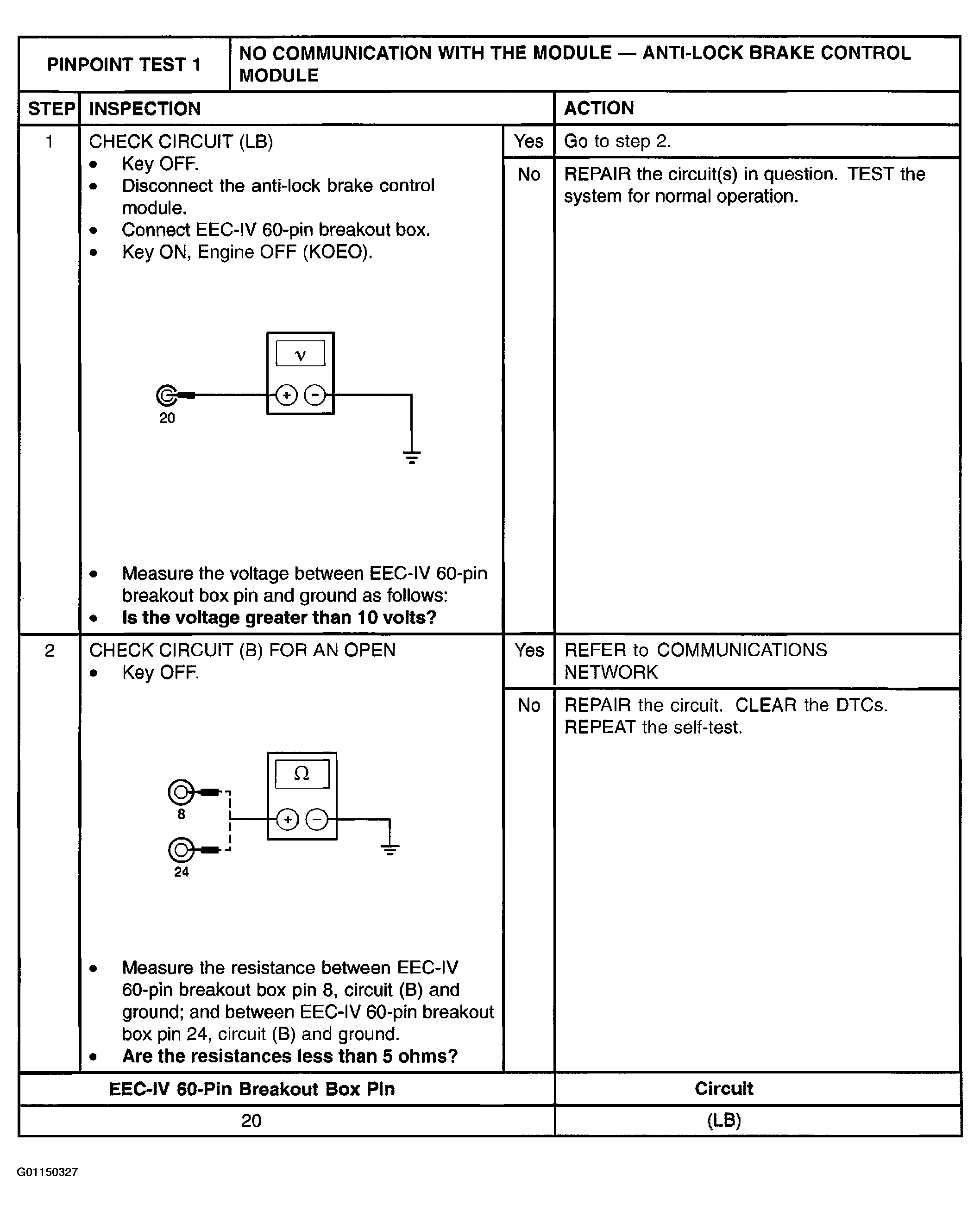

Fig 1: Pinpoint Test 1: No Communication With The Module - Anti-Lock Brake Control Module
G01150327Courtesy of MAZDA MOTORS CORP.
