Diagnostic Trouble Code Chart

Fig 1: DTC's P1116, P1117, P1118 & P1124 Descriptions

Courtesy of MAZDA MOTORS CORP.

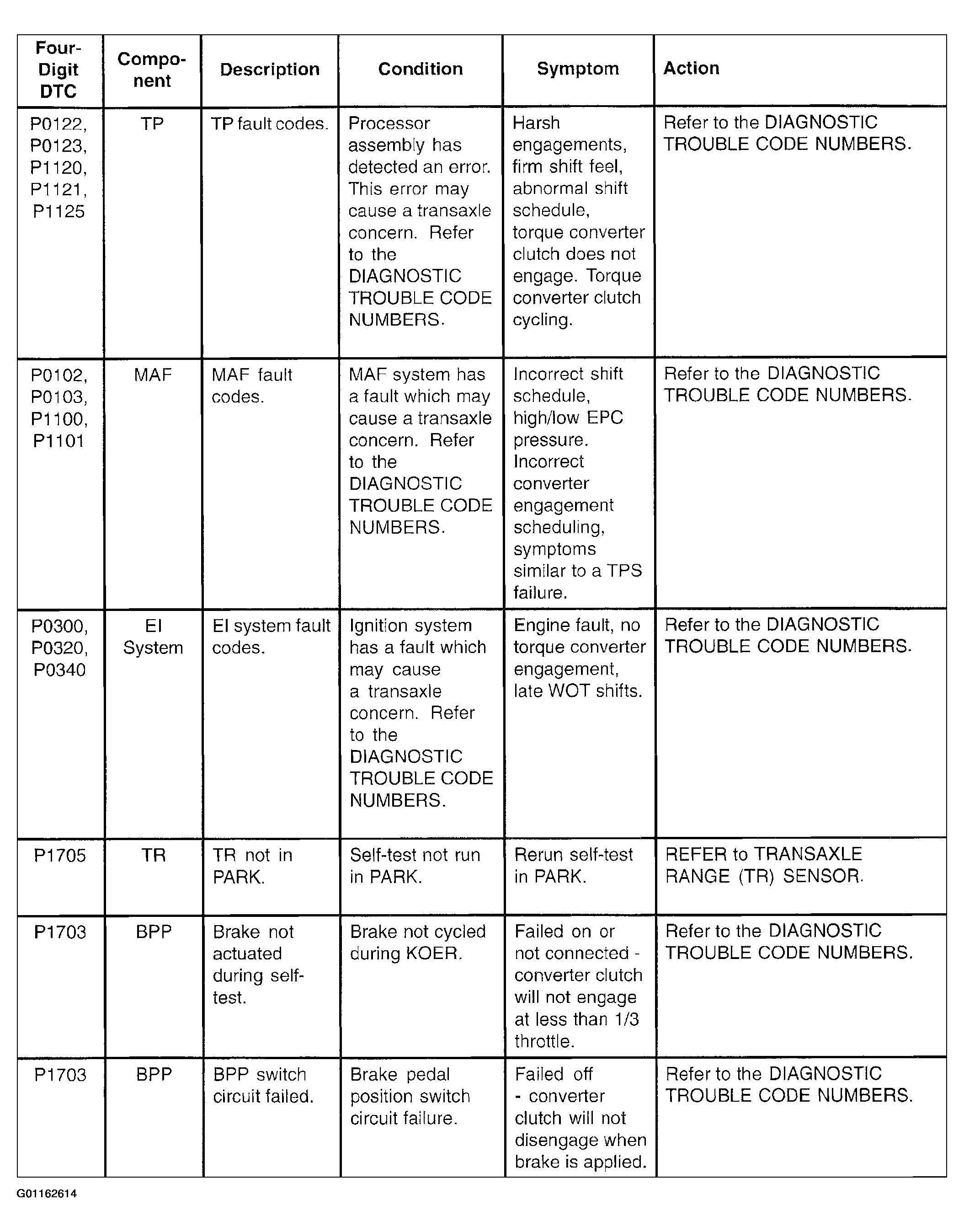

Fig 2: DTC's P0122, P0123, P1120, P1121, P1125, P0102, P0103, P1100. P1101, P0300, P0320, P0340, P1705 & P1703 Descriptions

Courtesy of MAZDA MOTORS CORP.

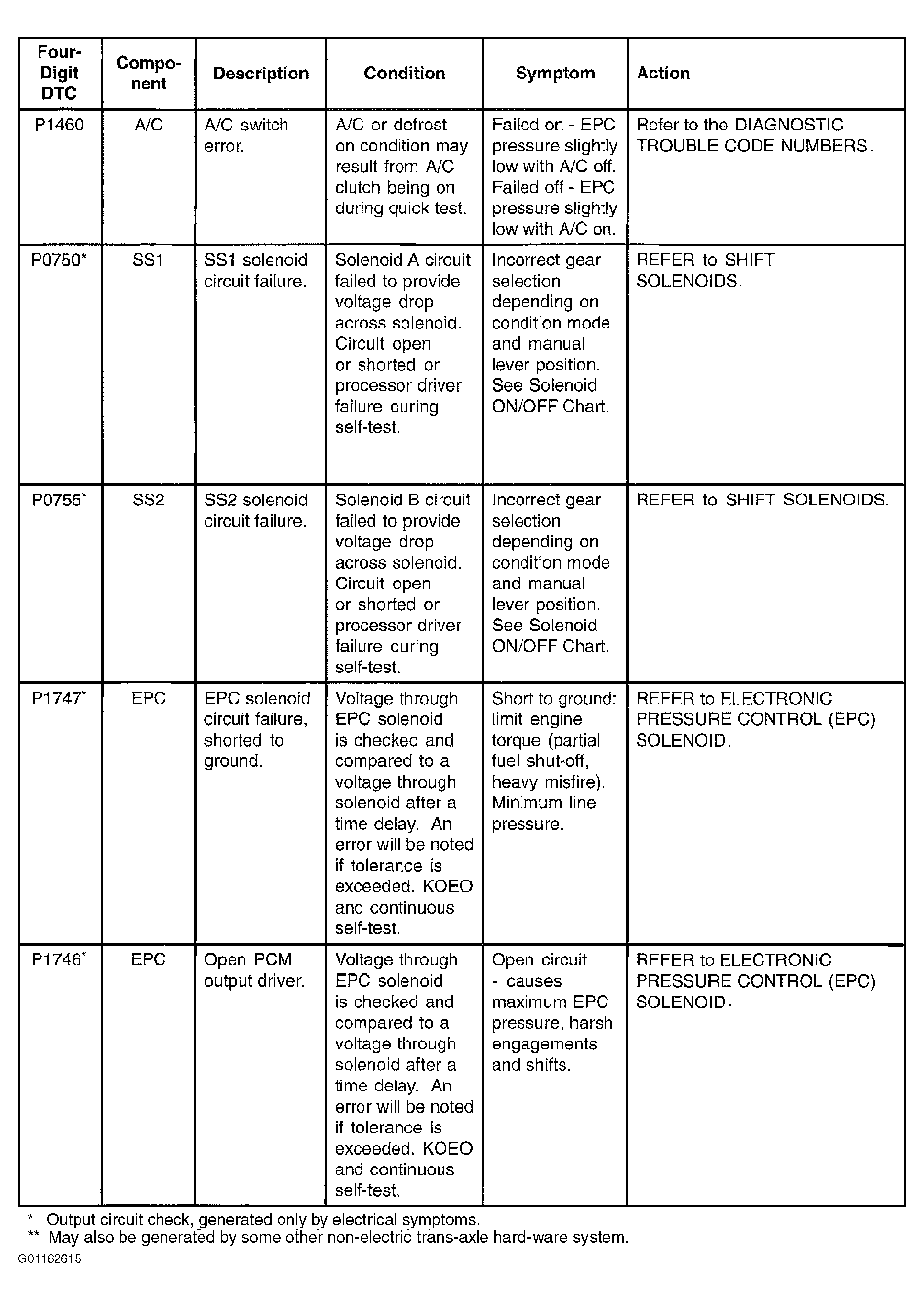

Fig 3: DTC's P1460, P0750, P0755, P1747 & P1746 Descriptions

Courtesy of MAZDA MOTORS CORP.

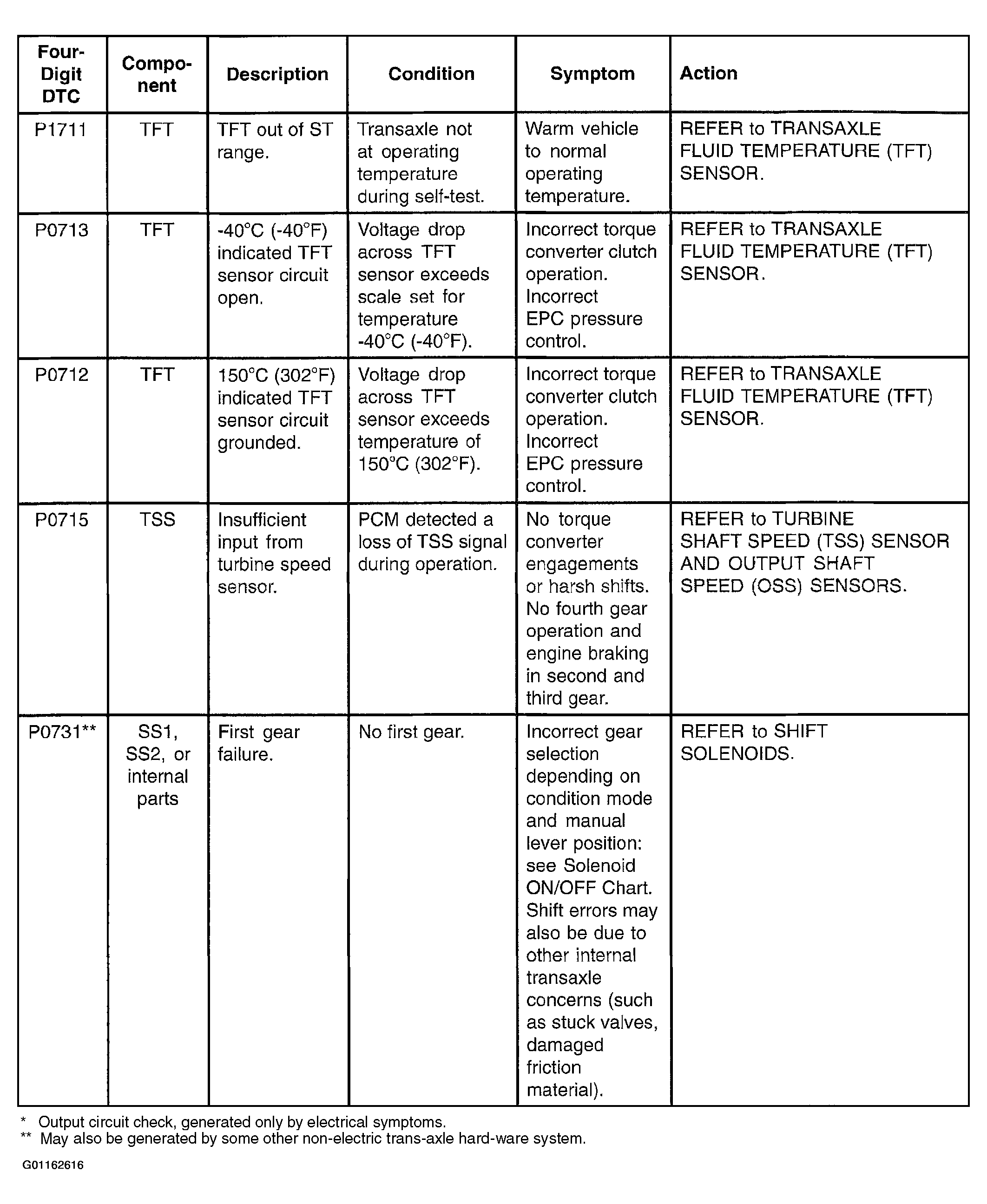

Fig 4: DTC's P1711, P0713, P0712, P0715 & P0731 Descriptions

Courtesy of MAZDA MOTORS CORP.

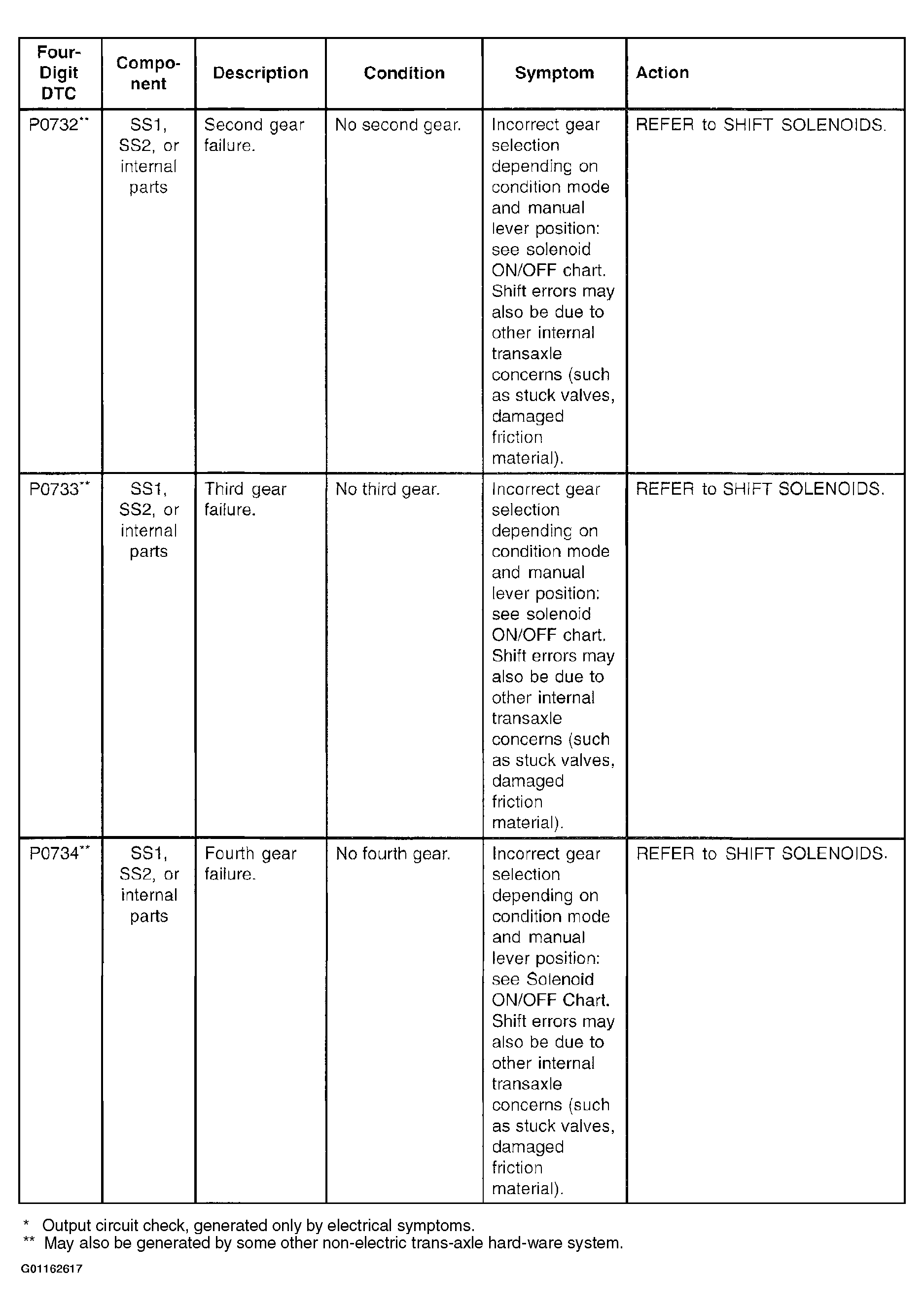

Fig 5: DTC's P0732, P0733 & P0734 Descriptions

Courtesy of MAZDA MOTORS CORP.

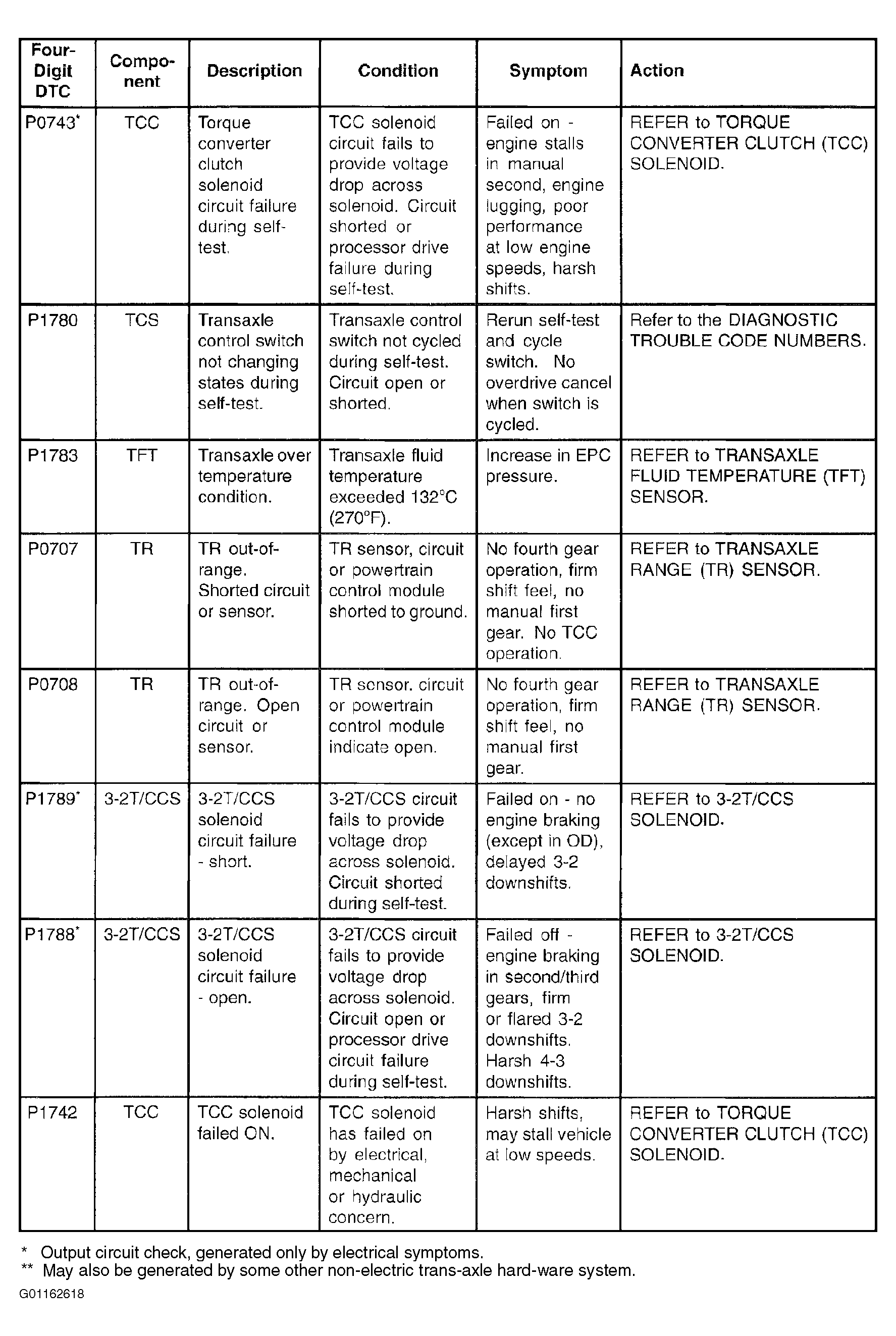

Fig 6: DTC's P0743, P1780, P1783, P0707, P0708, P1789, P1788 & P1742 Descriptions

Courtesy of MAZDA MOTORS CORP.

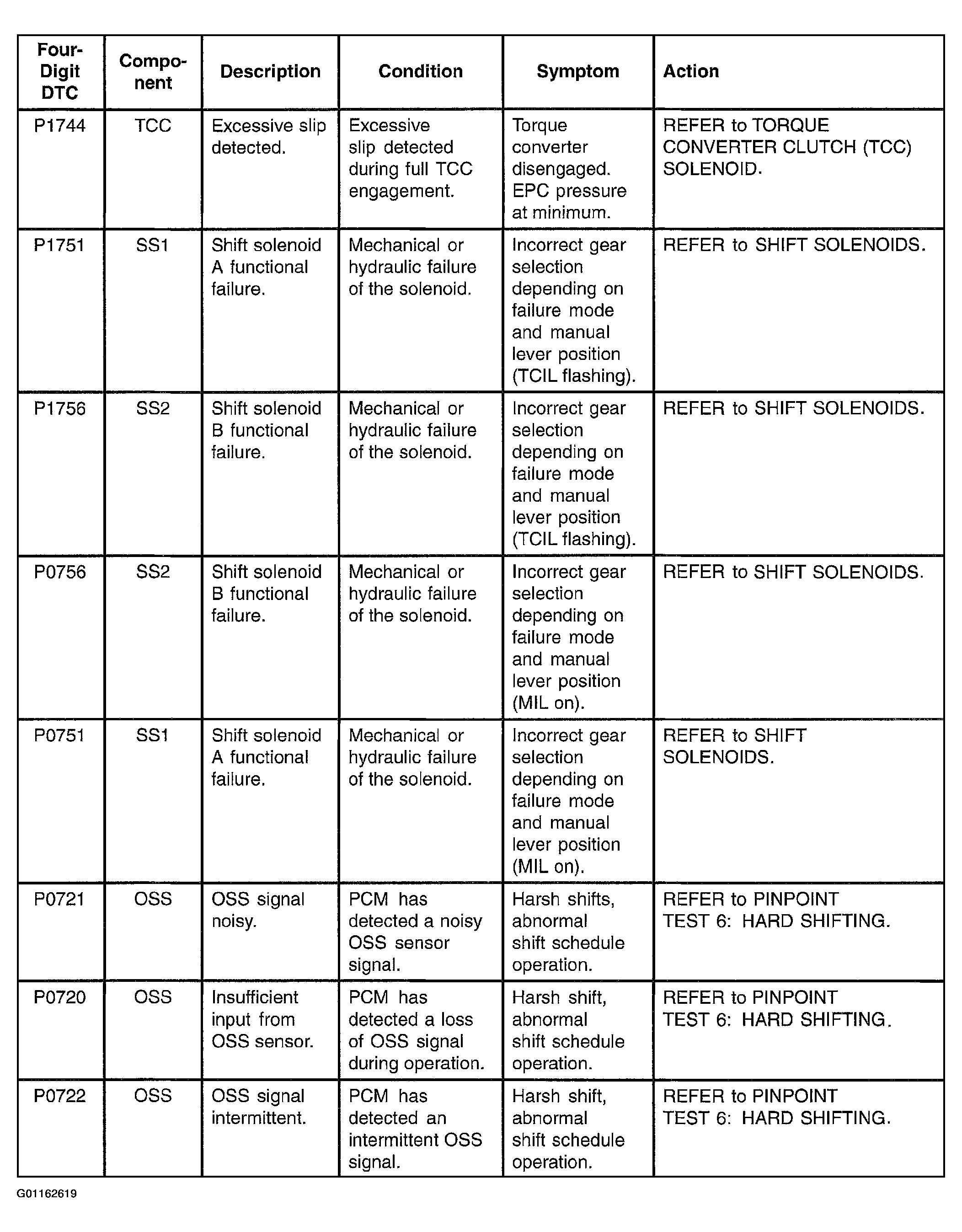

Fig 7: DTC's P1744, P1751, P1756, P0756, P0751, P0721, P0720 & P0722 Descriptions

Courtesy of MAZDA MOTORS CORP.

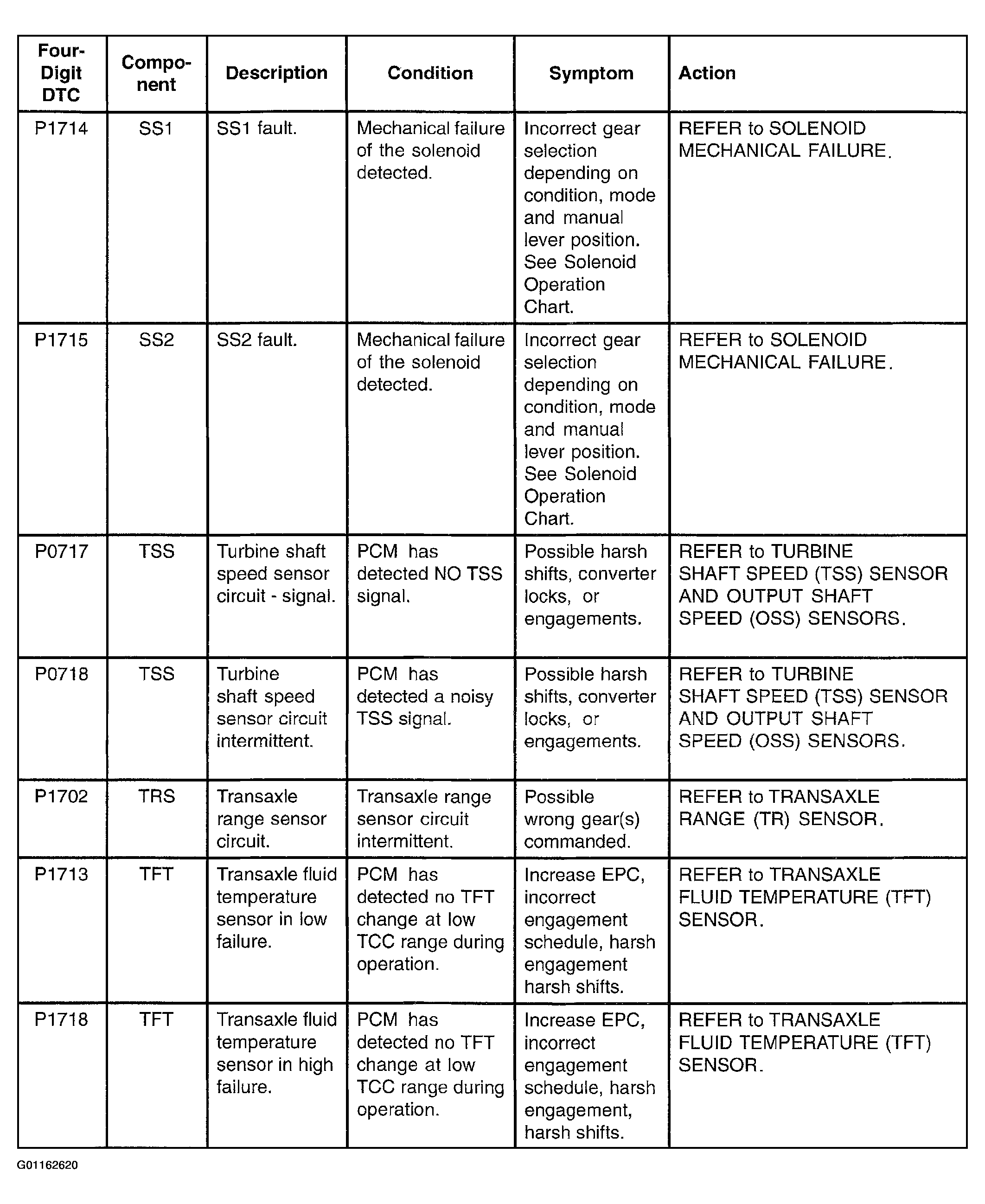

Fig 8: DTC's P1714, P1715, P0717, P0718, P1702, P1713 & P1718 Descriptions

Courtesy of MAZDA MOTORS CORP.

The Transaxle Tester is used to diagnose electronically-controlled transaxles and is used in conjunction with the pinpoint tests. The tests should be carried out in order. Installing the Transaxle Tester allows separation of the vehicle electronics and the transaxle electronics. Refer to the Transaxle Tester manual for these tests.

• Bench Testing - Engine Off
• Resistance/Continuity Test
• Solenoid Voltage Test
• Dynamic Testing - Engine On
• EPC Solenoid
• Transaxle Engagement
• Upshifts/Downshifts
• Torque Converter Clutch (TCC) Engagement
• Coast Clutch Engagement
• Turbine Shaft Speed (TSS) Sensor
• Output Shaft Speed (OSS) Sensor
• Transaxle Range (TR) Sensor
• Switch Test - Park/Neutral, Backup Lamp, and Optional Circuits
