Key Reminder Switch Inspection

  1. Disconnect the negative battery cable.
  2. Remove the column cover.
  3. Disconnect the key reminder switch connector.
  4. Inspect for continuity between the key reminder switch terminals using an ohmmeter.
    • If not as specified, replace the key reminder switch.

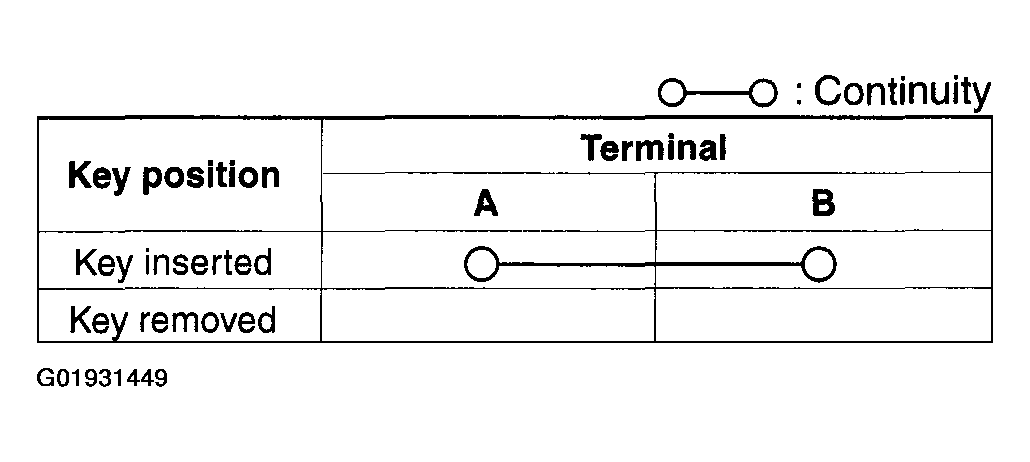

    Fig 1: Checking Key Reminder Switch Continuity
    G01931449Courtesy of MAZDA MOTORS CORP.

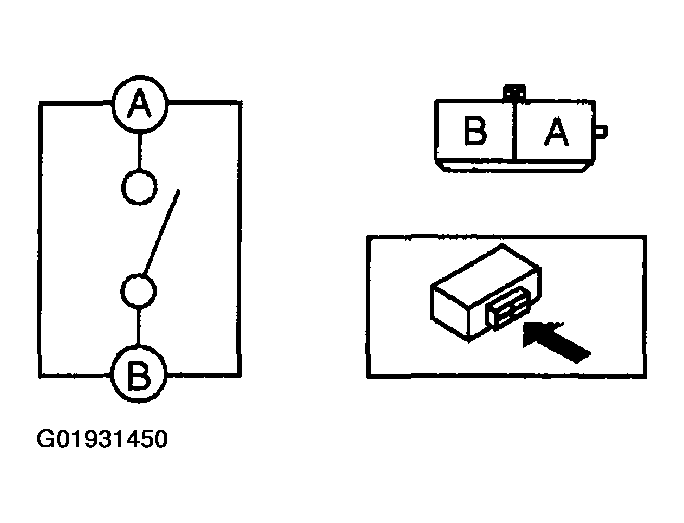

    Fig 2: Identifying Key Reminder Switch Circuitry & Terminals
    G01931450Courtesy of MAZDA MOTORS CORP.
