Bolt Removal Note

  1. Press and remove the tabs on the main fuse block at the positions indicated by the arrows.

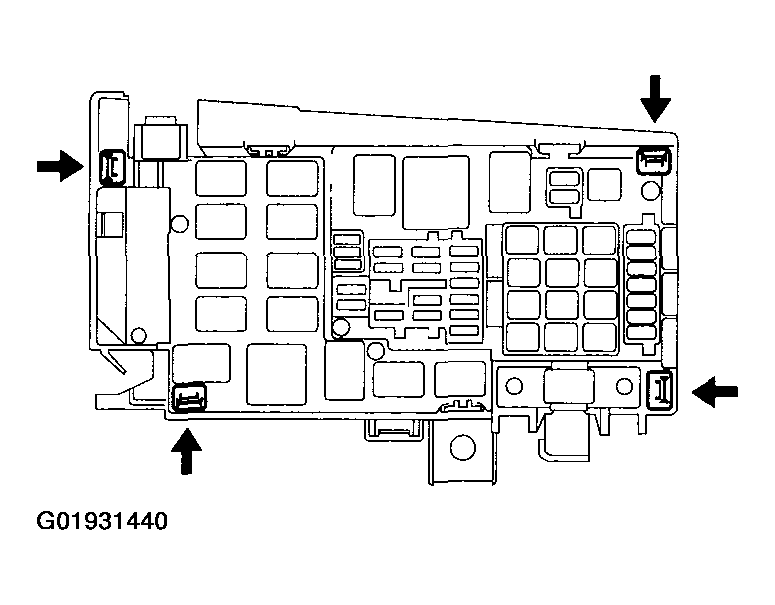

    Fig 1: Identifying Tabs On Main Fuse Block
    G01931440Courtesy of MAZDA MOTORS CORP.
  2. Lift up the main fuse block and remove the bolts.

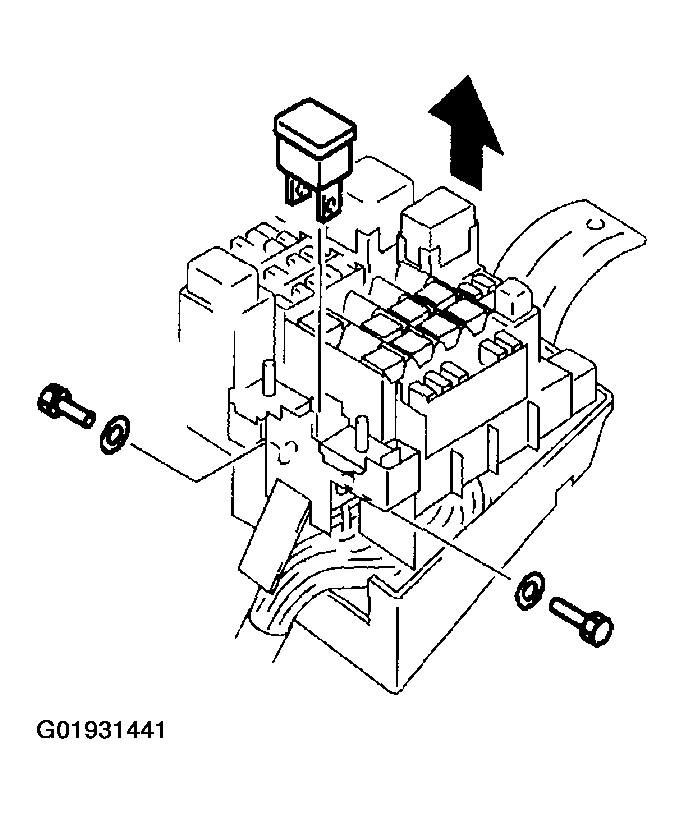

    Fig 2: Lifting Up Main Fuse Block And Removing Bolts
    G01931441Courtesy of MAZDA MOTORS CORP.
